Results displayed by day

[sweiland]

Hi there,

I have a dashboard which splits the results by day of the week, to see for example the amount of events by Days (Monday, Tuesday, ...)

My request is like that:

myrequest | convert timeformat="%A" ctime(_time) AS Day | chart count by Day | rename count as "SENT" | eval wd=lower(Day) | eval sort_field=case(wd=="monday",1, wd=="tuesday",2, wd=="wednesday",3, wd=="thursday",4, wd=="friday",5, wd=="saturday",6 ,wd=="sunday",7) | sort sort_field | fields - sort_field, wd

Only problem with the request is that sometimes a day or two could be missing in the histogram (0 entries), and I wanted to have always the 7 days displayed (even with 0 results).

Any way to do this ? Any help appreciated! (like a left join in SQL)

[richgalloway]

This works for me.

index=_internal
| timechart span=1d count
| convert timeformat="%A" ctime(_time) AS Day
| rename count as "SENT" | eval wd=lower(Day)
| eval sort_field=case(wd=="monday",1, wd=="tuesday",2, wd=="wednesday",3, wd=="thursday",4, wd=="friday",5, wd=="saturday",6 ,wd=="sunday",7)
| sort sort_field
| fields - sort_field, wd
| table Day SENT

[sweiland]

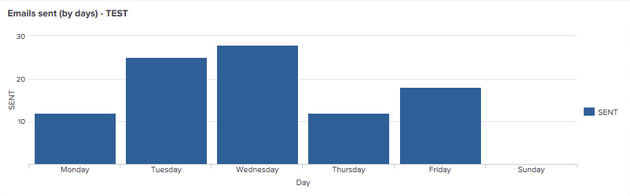

Hmmm nope, here is my first attempt (with my query, I miss the Sunday = 0 event), and also comparison with your query (below)

Maybe I need then a group by ?

[richgalloway · Accepted solution]

It looks like my query is producing the zeros you wanted, but has more than one entry for each day.  I think we can correct that with stats.

index=_internal
| timechart span=1d count
| convert timeformat="%A" ctime(_time) AS Day
| stats sum(count) as count by Day
| rename count as "SENT"
| eval wd=lower(Day)
| eval sort_field=case(wd=="monday",1, wd=="tuesday",2, wd=="wednesday",3, wd=="thursday",4, wd=="friday",5, wd=="saturday",6 ,wd=="sunday",7)
| sort sort_field
| fields - sort_field, wd
| table Day SENT

[sweiland]

Thanks, it works almost flawlessly ! 🙂

Just a problem when I put "Since start of week", Saturday is missing.. dont know why..

I would have thought that I should miss Saturday & Sunday (because I put start of week and both days are not in the request at all)

[richgalloway]

"Start of week" is Sunday. Saturday was tomorrow so timechart thinks you only care about Sun-Fri. Try using latest=+1w@w.

[sweiland]

Maybe I just find a way to limit the timepicker to 7 days range minimum (but did not find how), or I just do not display the panel if the range is less than 7 days

Both case I do not know how to do, but will try to find 🙂 (2nd optionis better, to hide the panel if range too short)
