Knowledge Management

SplunkJS Search Manager collect twice same event

robertosegantin
Path Finder

Hi to all,
I'm on Splunk Enterprise 6.6.1.
On a dashboard I've defined an HTML button which launch a javascript SearchManager to collect some data to an index.
Unfortunately it collects the data twice.

var idsearchManagerEvent = "ack_events" + id_random;
var searchManagerEvent = new SearchManager({
        id: "ack_events" + id_random,
        autostart: "false",
        search: "| stats count | eval checked_by=Foo | collect index=my_index sourcetype=my_sourcetype ",
        timeout: 60,
        enable_lookups: "true"
    });

If I check the index "my_index", I find two events identically which are written by the same javascript event.

Someone knows if this is a bug o a misconfiguration?

0 Karma
1 Solution

robertosegantin
Path Finder

@niketnilay, I used you advice to invert the solution: via javascript I set the search defined on SimpleXML.

dashboard:

<dashboard script="test.js">
  <init>
    <set token="fake">1</set>
    <set token="ricerca">-1</set>
  </init>
  <search>
    <query>
      $ricerca$
    </query>
    <done>
      <eval token="fake">now()</eval>
    </done>
  </search>
  <label>foo</label>
  <row>
    <panel>
      <html>
      <div id="popup_mail_tipologia"/>
    </html>
    </panel>
  </row>
  <row>
    <panel>
      <table>
        <search>
          <query>index=test sourcetype="testsource" | eval fake=$fake$ | fields - fake</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="drilldown">none</option>
      </table>
    </panel>
  </row>
</dashboard>

test.js

require([
        'underscore',
        'jquery',
        'splunkjs/mvc',
        'splunkjs/mvc/tableview',
        "splunkjs/mvc/timerangeview",
        'splunkjs/mvc/simplexml/ready!'
    ], function (_, $, mvc, TableView, TimeRangeView) {

    var epoch = (new Date).getTime();
    var DropdownType = require("splunkjs/mvc/dropdownview");
    var dropdownTypeEvent = new DropdownType({
            id: "DropdownType" + epoch,
        default:
            "",
            el: $("#popup_mail_tipologia")
        }, {
            tokens: true
        }).render();
    var choices = [{
            label: "1",
            value: "1"
        }, {
            label: "2",
            value: "2"
        }
    ];
    splunkjs.mvc.Components.getInstance("DropdownType" + epoch).settings.set("choices", choices);
    dropdownTypeEvent.on('change', function (properties) {
        var o=splunkjs.mvc.Components.getInstance("DropdownType" + epoch)
        save_search = _.template(
                '| makeresults ' +
                '| eval myfield="x" ' +
                '| eval myFiledFromEvent="<%- ev %>" ' +
                '| collect index=test sourcetype="testsource"', {
                ev: o.val()
            });

        var defaultTokenModel = mvc.Components.get("default").set("ricerca", save_search);
        var submittedTokenModel = mvc.Components.getInstance('submitted').set("ricerca", save_search);
    });
});

View solution in original post

robertosegantin
Path Finder

@niketnilay, I used you advice to invert the solution: via javascript I set the search defined on SimpleXML.

dashboard:

<dashboard script="test.js">
  <init>
    <set token="fake">1</set>
    <set token="ricerca">-1</set>
  </init>
  <search>
    <query>
      $ricerca$
    </query>
    <done>
      <eval token="fake">now()</eval>
    </done>
  </search>
  <label>foo</label>
  <row>
    <panel>
      <html>
      <div id="popup_mail_tipologia"/>
    </html>
    </panel>
  </row>
  <row>
    <panel>
      <table>
        <search>
          <query>index=test sourcetype="testsource" | eval fake=$fake$ | fields - fake</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="drilldown">none</option>
      </table>
    </panel>
  </row>
</dashboard>

test.js

require([
        'underscore',
        'jquery',
        'splunkjs/mvc',
        'splunkjs/mvc/tableview',
        "splunkjs/mvc/timerangeview",
        'splunkjs/mvc/simplexml/ready!'
    ], function (_, $, mvc, TableView, TimeRangeView) {

    var epoch = (new Date).getTime();
    var DropdownType = require("splunkjs/mvc/dropdownview");
    var dropdownTypeEvent = new DropdownType({
            id: "DropdownType" + epoch,
        default:
            "",
            el: $("#popup_mail_tipologia")
        }, {
            tokens: true
        }).render();
    var choices = [{
            label: "1",
            value: "1"
        }, {
            label: "2",
            value: "2"
        }
    ];
    splunkjs.mvc.Components.getInstance("DropdownType" + epoch).settings.set("choices", choices);
    dropdownTypeEvent.on('change', function (properties) {
        var o=splunkjs.mvc.Components.getInstance("DropdownType" + epoch)
        save_search = _.template(
                '| makeresults ' +
                '| eval myfield="x" ' +
                '| eval myFiledFromEvent="<%- ev %>" ' +
                '| collect index=test sourcetype="testsource"', {
                ev: o.val()
            });

        var defaultTokenModel = mvc.Components.get("default").set("ricerca", save_search);
        var submittedTokenModel = mvc.Components.getInstance('submitted').set("ricerca", save_search);
    });
});

@robertosegantin I am glad you found the answer useful and were able to figure out a working solution for your code. Besides having most of the code in Simple XML, I was also using testmode with a token and only the token was set/reset using JavaScript (ensuring the search executes only once per click).

Do up vote the answer if you found it useful!. Let us know if you need further help!

____________________________________________
| makeresults | eval message= "Happy Splunking!!!"
0 Karma

@robertosegantin, instead of keeping entire logic in JavaScript, I have moved only button click logic (as explained in my approach above) to Javascript.

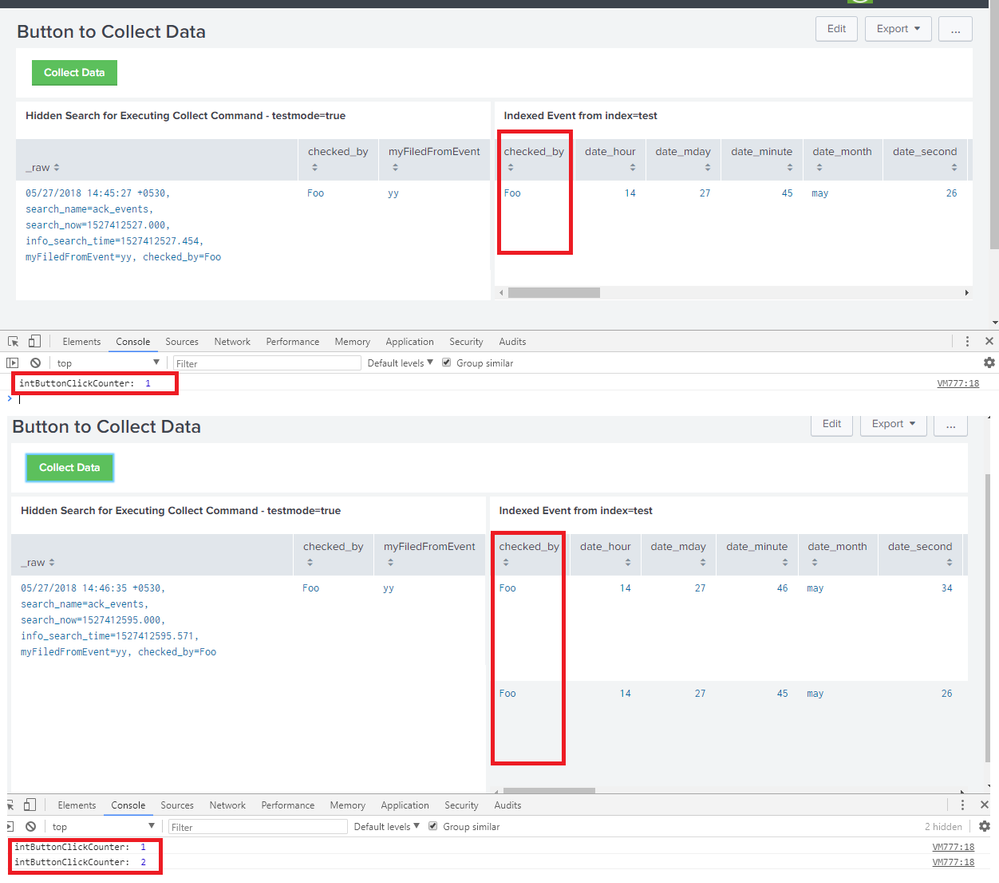

Following is a run any where example based on scenario similar to yours where I am using html button instead of dropdown. The collect command search is displayed as table but can be hidden after testing by making search a dummy search without any visualization. The results from collected indexed are refreshed on each click to show number of events present.

alt text

Following is the Simple XML Code for the dashboard:

<dashboard script="button_to_collect_event_data_to_index.js">
  <label>Button to Collect Data</label>
  <!-- Query to initialize tokTestMode to True-->
  <!-- <init> section can also be used in Simple XML Dashboard-->
  <search>
    <query>| makeresults
    </query>
    <done>
      <set token="tokTestMode">true</set>
    </done>
  </search>
  <!-- Query to mimic value from Event -->
  <search>
    <query>| makeresults
| fields - _time
| eval fieldFromEvent="yy"
    </query>
    <done>
      <set token="ev">$result.fieldFromEvent$</set>
    </done>
  </search>
  <row>
    <panel>
      <html>
        <button id="btnCollect" class="btn-primary">Collect Data</button>
      </html>
    </panel>
  </row>
  <row>
    <panel>
      <table>
        <title>Hidden Search for Executing Collect Command - testmode=$tokTestMode$</title>
        <search id="ack_events">
          <query>| makeresults
      | fields - _time
      | eval checked_by="Foo"
      | eval myFiledFromEvent=$ev|s$
      | collect index="test" sourcetype="testsourcetype"
       testmode=$tokTestMode|s$</query>
          <done>
            <!-- When the Search Executes tokeTestMode should always be true -->
            <set token="tokTestMode">true</set>
          </done>
        </search>
        <!-- Query for collect command -->
      </table>
    </panel>
    <panel>
      <table>
        <title>Indexed Event from index=test</title>
        <search>
          <query>index=test sourcetype="testsourcetype"
| eval dummyTokenToRefreshSearch="$tokTestMode$"
| fields - dummyTokenToRefreshSearch
| table *</query>
          <earliest>$earliest$</earliest>
          <latest>$latest$</latest>
        </search>
        <option name="refresh.display">progressbar</option>
      </table>
    </panel>
  </row>
</dashboard>

Following is the JavaScript code for button_to_collect_event_data_to_index.js which sets the test mode token to false on button click to make collect command execute:

require([
    'underscore',
    'jquery',
    'splunkjs/mvc',
    'splunkjs/mvc/simplexml/ready!'
], function(_, $, mvc) {

    var intButtonClickCounter=0;
    defaultTokenModel=mvc.Components.get("default");
    submittedTokenModel=mvc.Components.get("submitted");

    $("#btnCollect").click(function(){
        intButtonClickCounter=intButtonClickCounter+1;
        console.log("intButtonClickCounter: ",intButtonClickCounter);
        defaultTokenModel.set("tokTestMode","false");
        submittedTokenModel.set("tokTestMode","false");
    });
});

Please try out and confirm!

____________________________________________
| makeresults | eval message= "Happy Splunking!!!"
0 Karma

@robertosegantin can you try adding testmode=$tokTestMode$ to the search in your question.

Set the default value of token tokTestMode as false (using a dummy search). On click on HTML button set the token tokTestMode to true using SplunkJS : http://dev.splunk.com/view/webframework-developapps/SP-CAAAEW3

Please try out and let us know if any help/sample example is required!

____________________________________________
| makeresults | eval message= "Happy Splunking!!!"
0 Karma

robertosegantin
Path Finder

@niketnilay, sorry for lat answer.
I'm attaching simpleXML code and Javascript code.
When I change the dropdown, it runs a search which collects data into an index.
Unfortunately it collects twice the same event.
As you can see there no complex elaboration
On Splunk 6.6.1 running it on a SH which is in cluster.

Let me know if need more information

Thanks for your help

This is simpleXML:

<dashboard script="js/test.js">
<init>
<set token="fake">1</set>
</init>
<label>foo</label>
<row>
<panel>
<html>
<div id="popup_mail_tipologia"/>
</html>
</panel>
</row>
<row>
<panel>
<table>
<search>
<query>index=test sourcetype="testsource"</query>
<earliest>-24h@h</earliest>
<latest>now</latest>
</search>
<option name="drilldown">none</option>
</table>
</panel>
</row>
</dashboard>

Javscript code:

require([
    'underscore',
    'jquery',
    'splunkjs/mvc',
    'splunkjs/mvc/tableview',
    'splunkjs/mvc/searchmanager',
    "splunkjs/mvc/timerangeview",
    'splunkjs/mvc/simplexml/ready!'
], function (_, $, mvc, TableView, SearchManager, TimeRangeView) {

    var SearchManager = require("splunkjs/mvc/searchmanager");
    var ricerca = '| makeresults ';
    var idsearchManagerEvent = "ack_events";
    var searchManagerEvent = new SearchManager({
        id: "ack_events",
        autostart: "false",
        search: "*",
        cache: "true",
        timeout: 60,
        enable_lookups: "true"
    });

    var epoch = (new Date).getTime();
    var DropdownType = require("splunkjs/mvc/dropdownview");
    var dropdownTypeEvent = new DropdownType({
        id: "DropdownType" + epoch,
        default:
            "",
        el: $("#popup_mail_tipologia")
    }, {
        tokens: true
    }).render();
    var choices = [{label: "1", value: "1"}, {label: "2", value: "2"}
    ];
    splunkjs.mvc.Components.getInstance("DropdownType" + epoch).settings.set("choices", choices);
    dropdownTypeEvent.on('change', function (properties) {
        save_search = _.template(
            '| makeresults ' +
            '| eval myfield="x" ' +
            '| eval myFiledFromEvent="<%- ev %>" ' +
            '| collect index=test sourcetype="testsource"', {
                ev: "yy"
            });
        console.log(save_search);
        searchManagerEvent.settings.unset("search");
        searchManagerEvent.settings.set("search", save_search);
        searchManagerEvent.startSearch();

    });
});

screenshot:

alt text

0 Karma
