Hi,Could anyone please assist. Two drop down boxes one->many structure but
first drop down does not change its value it stays the same at default value
when you attempt to change to others. Please look at the UserInterface text
"your base search here | lookup fd_gmm_pla_microservice_map" .
Has to change correctly for a code lookup query.
Code is as "Service Family" -> "Feature Family"
[One -> Many RelationShip]
Service Families (GMM,HWBT,EDH,PWS)
Each has features as:-
GMM->(CCA,CIA,REG)
HWBT->(PLA)
EDH->(MANACCS,STMT,ACTS)
PWS->(ALL)
It defaults to GMM .
GMM
GMM

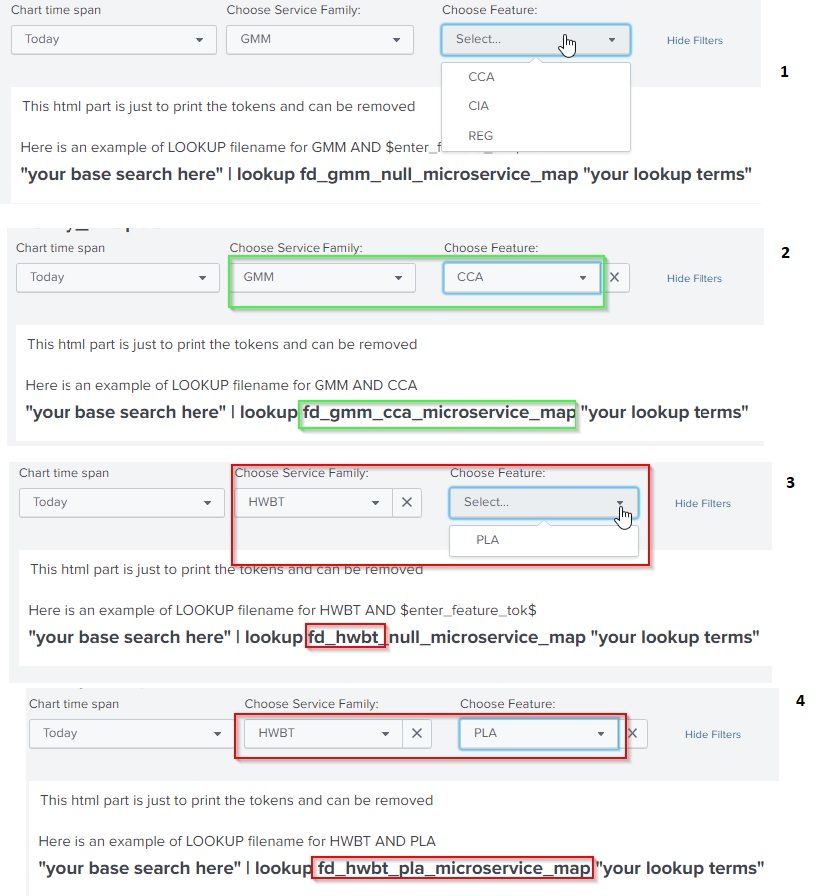

When you move to second service family "HWBT" after testing first service family
"GMM" and all its options "CCA,CIA,REG"
the service family stays at "GMM" so you end up with "GMM->PLA" instead of "HWBT"->"PLA"
and same for EDH still has value "GMM".
When you look at UI you see "lookup fd_gmm_pla_microservice_map" instead of "lookup fd_hwbt_pla_microservice_map"
Tried a few things I was not sure to change default to All *. and searchWhenChanged="true">
but unable to change the "Service_family" properly to work properly.
Could anyone please advice.Thanks .Code is below
FD TEST -EVENTS Clone
Shows PCF-Container events for FD-APIS.
<input type="time" token="master_time_span">
<label>Chart time span</label>
<default>
<earliest>-24h@h</earliest>
<latest>now</latest>
</default>
</input>
<input type="dropdown" token="service_family_tok">
<label>Choose Service Family:</label>
<choice value="GMM">GMM</choice>
<choice value="HWBT">HWBT</choice>
<choice value="EDH">EDH</choice>
<choice value="PWS">PWS</choice>
<default>GMM</default>
<initialValue>GMM</initialValue>
<change>
<condition value="GMM">
<set token="feature_values">CCA,CIA,REG</set>
<unset token="form.enter_feature_tok"></unset>
</condition>
<condition value="EDH">
<set token="feature_values">MANACCS,INBOX,STMT,ACTS</set>
<unset token="form.enter_feature_tok"></unset>
</condition>
<condition value="HWBT">
<set token="feature_values">PLA</set>
<unset token="form.enter_feature_tok"></unset>
</condition>
<condition value="PWS">
<set token="feature_values">ALL</set>
<unset token="form.enter_feature_tok"></unset>
</condition>
</change>
</input>
<input type="dropdown" token="enter_feature_tok">
<label>Choose Feature:</label>
<fieldForLabel>feature</fieldForLabel>
<fieldForValue>feature</fieldForValue>
<search>
<query>|makeresults|eval feature="$feature_values$"|makemv feature delim=","|mvexpand feature</query>
<earliest>-1s@s</earliest>
<latest>now</latest>
</search>
<change>
<eval token="l_service_family_tok">lower($service_family_tok$)</eval>
<eval token="l_enter_feature_tok">lower($value$)</eval>
</change>
</input>
<panel>
<title>This html part is just to print the tokens and can be removed</title>
<html>
<h2> Here is an example of LOOKUP filename for $service_family_tok$ AND $enter_feature_tok$ </h2>
<h1> "your base search here" | lookup fd_$l_service_family_tok$_$l_enter_feature_tok$_microservice_map "your lookup terms" </h1>
</html>
</panel>
