Splunk extraction help!

kc_prane
Communicator

Hello , I have a transaction which is coming as multievent. i can use the  "| transaction" command to club as one event.

1)  I want the transaction ID extracted  based on the below-highlighted ( Green)

2) Now, I want to  get the transaction time  based on the below-highlighted  (Yellow)

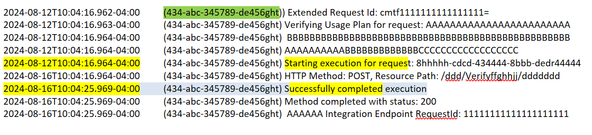

Below is the raw event log.




Thanks In advance!







Labels (1)
Tags (1)
0 Karma
1 Solution

ITWhisperer
SplunkTrust
SplunkTrust

The transaction command provides a duration field for the difference in times. Is this not sufficient for your needs?

View solution in original post

ITWhisperer
SplunkTrust
SplunkTrust

Which (if any) fields do you already have extracted?

Are the transaction ids unique i.e will there be only one "Starting ..." message and one "Successfully completed" message per transaction id?

Please can you share text versions of your events rather than pictures as they are easier to deal with when simulating a solution.

0 Karma

kc_prane
Communicator

Hi  @ITWhisperer  Thanks for your response. I had not extracted any yet cause the logs are not yet in splunk but will be soon  Yes, the transaction ID are unique.  The below is what i got from cloud watch.



2024-08-12T10:04:16.962-04:00          (434-abc-345789-de456ght) Extended Request Id: cmtf1111111111111111=

2024-08-12T10:04:16.963-04:00          (434-abc-345789-de456ght) Verifying Usage Plan for request: AAAAAAAAAAAAAAAAAAAAAAAA

2024-08-12T10:04:16.964-04:00          (434-abc-345789-de456ght)  BBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBB

2024-08-12T10:04:16.964-04:00          (434-abc-345789-de456ght) AAAAAAAAAABBBBBBBBBBBBBCCCCCCCCCCCCCCCCCC

2024-08-12T10:04:16.964-04:00          (434-abc-345789-de456ght) Starting execution for request: 8hhhhh-cdcd-434444-8bbb-dedr44444

2024-08-16T10:04:16.964-04:00          (434-abc-345789-de456ght) HTTP Method: POST, Resource Path: /ddd/Verifyffghhjj/ddddddd

2024-08-16T10:04:25.969-04:00          (434-abc-345789-de456ght) Successfully completed execution

2024-08-16T10:04:25.969-04:00          (434-abc-345789-de456ght) Method completed with status: 200

2024-08-16T10:04:25.969-04:00          (434-abc-345789-de456ght)  AAAAAA Integration Endpoint RequestId: 11111111111111111111

0 Karma

yuanliu
SplunkTrust
SplunkTrust

Do you mean something like this:

| rex "^\S+\s+\((?<transaction_id>[^\)]+)"
| transaction transaction_id startswith="Starting execution for request" endswith="Successfully completed execution"

Here is an emulation of your mock sample data you can play with and compare with real data

| makeresults format=csv data="_raw
2024-08-12T10:04:16.962-04:00          (434-abc-345789-de456ght) Extended Request Id: cmtf1111111111111111=
2024-08-12T10:04:16.963-04:00          (434-abc-345789-de456ght) Verifying Usage Plan for request: AAAAAAAAAAAAAAAAAAAAAAAA
2024-08-12T10:04:16.964-04:00          (434-abc-345789-de456ght)  BBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBB
2024-08-12T10:04:16.964-04:00          (434-abc-345789-de456ght) AAAAAAAAAABBBBBBBBBBBBBCCCCCCCCCCCCCCCCCC
2024-08-12T10:04:16.964-04:00          (434-abc-345789-de456ght) Starting execution for request: 8hhhhh-cdcd-434444-8bbb-dedr44444
2024-08-16T10:04:16.964-04:00          (434-abc-345789-de456ght) HTTP Method: POST, Resource Path: /ddd/Verifyffghhjj/ddddddd
2024-08-16T10:04:25.969-04:00          (434-abc-345789-de456ght) Successfully completed execution
2024-08-16T10:04:25.969-04:00          (434-abc-345789-de456ght) Method completed with status: 200
2024-08-16T10:04:25.969-04:00          (434-abc-345789-de456ght)  AAAAAA Integration Endpoint RequestId: 11111111111111111111"
| rex "^(?<_time>\S+)"
| eval _time = strptime(_time, "%FT%T.%3N")
| sort - _time
``` data emulation above ```



kc_prane
Communicator

Hi  @yuanliu  How do i get the difference of the time stamp? . I want the difference of starting timestamp and the completed time stamp

"My base query"  | rex "status:\s+(?<Status>.*)\"}" | rex field=_raw "\((?<Message_Id>[^\)]*)" | rex "Path\:\s+(?<ResourcePath>.*)\"" | eval timestamp_s = timestamp/1000 | eval human_readable_time = strftime(timestamp_s, "%Y-%m-%d %H:%M:%S") | transaction Message_Id startswith="Starting execution for request" endswith="Successfully completed execution"



RAW_LOG

8/19/24

9:56:05.113 AM

{"id":"38448254623555555", "timestamp":1724079365113, "message":"(fghhhhhh-244933333-456789-rrrrrrrrrr) Startingexecutionforrequest:f34444-22222-44444-999999-0888888"}

{"id":"38448254444444444", "timestamp":1724079365126, "message":"(fghhhhhh-244933333-456789-rrrrrrrrrr) Methodcompletedwithstatus:200"}

{"id":"38448222222222222", "timestamp":1724079365126, "message":"(fghhhhhh-244933333-456789-rrrrrrrrrr) Successfullycompletedexecution"}

{"id":"38417111111111111", "timestamp":1724079365126, "message":"(fghhhhhh-244933333-456789-rrrrrrrrrr) AWS Integration Endpoint RequestId :f32222-22222-44444-999999-0888888"}


















0 Karma

ITWhisperer
SplunkTrust
SplunkTrust

The transaction command provides a duration field for the difference in times. Is this not sufficient for your needs?
