Splunk Search

Is there a way I can remove a time period from my timechart?

Midge87
Explorer

Hi,



I have a very basic timechart from the below search. Just counts the number of events=40 (event ID). The issue is we had a logging problem and received no events for a specific time period before we resolved the issue. This means the timechart has a drop to zero then back up to usual levels. Can I remove this from the timechart somehow?





Index=main event_type=40
| timechart count(src_ip) by sensor






Labels (1)
0 Karma
1 Solution

ITWhisperer
SplunkTrust
SplunkTrust

That's because you haven't done exactly as I suggested

| foreach *
    [| eval <<FIELD>>=if(<<FIELD>>=0,null(),<<FIELD>>)]

The foreach command substitutes <<FIELD>> for each field name listed i.e. all (*) in this instance

View solution in original post

0 Karma

ITWhisperer
SplunkTrust
SplunkTrust

Try something like this

index=main event_type=40
| timechart count(src_ip) by sensor
| foreach *
    [| eval <<FIELD>>=if(<<FIELD>>=0,null(),<<FIELD>>)]
0 Karma

Midge87
Explorer

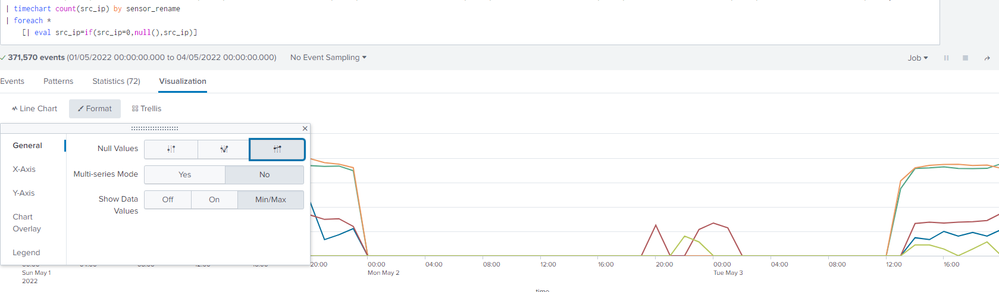

Unfortunately that has not made a difference. 2.PNG



Have zoomed in a bit here, can still see the drop. Basically want it to exclude between midnight on May 1st and continue the line straight to 1pm on May 3rd

0 Karma

ITWhisperer
SplunkTrust
SplunkTrust

That's because you haven't done exactly as I suggested

| foreach *
    [| eval <<FIELD>>=if(<<FIELD>>=0,null(),<<FIELD>>)]

The foreach command substitutes <<FIELD>> for each field name listed i.e. all (*) in this instance

0 Karma

Midge87
Explorer

Thank you, that has done the job! Much appreciated

0 Karma

ITWhisperer
SplunkTrust
SplunkTrust

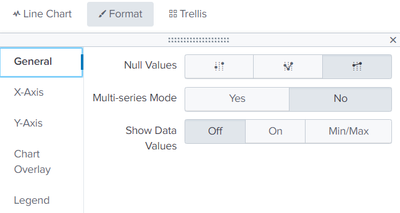

Have you set the format correctly




0 Karma

Midge87
Explorer

I have


0 Karma
