Solved: Grouping panels from different rows into one panel...

Shan · ‎11-13-2018

Need your help friends.

I have data appear as mentioned below. But i have requirement that instead of displaying same name for 4 different panels. I need to group all the value and display it in single panel for all the 4 rows how to achieve it .

Below mentioned all the 4 panels(Windows data) are simple name display in html.

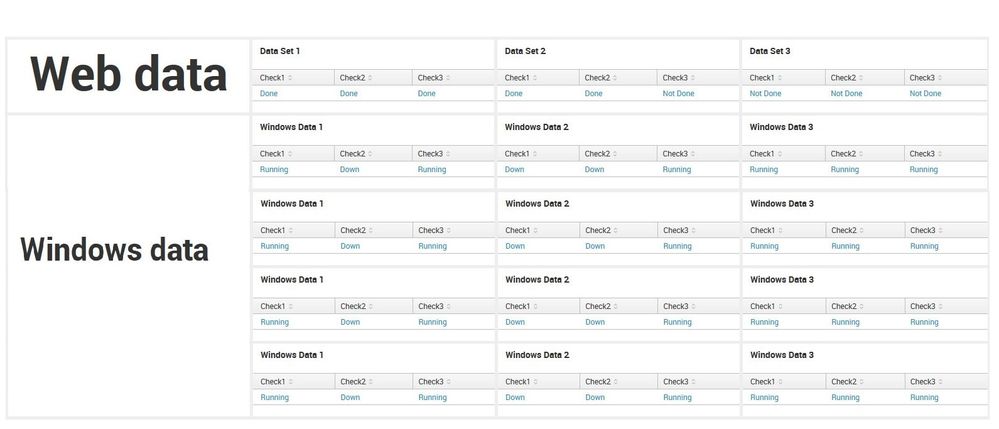

Current result.

Expected result.

Thanks in advance ..

martin_mueller · ‎11-13-2018

Put all Windows Data n tables into one panel, something like this:

...
<row>
  <panel><html>...</html><panel>
  <panel>
    <table>...</table>
    <table>...</table>
    <table>...</table>
    <table>...</table>
  </panel>
  <panel>
    <table>...</table>
    <table>...</table>
    <table>...</table>
    <table>...</table>
  </panel>
</row>

View solution in original post

martin_mueller · ‎11-13-2018

Put all Windows Data n tables into one panel, something like this:

...
<row>
  <panel><html>...</html><panel>
  <panel>
    <table>...</table>
    <table>...</table>
    <table>...</table>
    <table>...</table>
  </panel>
  <panel>
    <table>...</table>
    <table>...</table>
    <table>...</table>
    <table>...</table>
  </panel>
</row>

niketn · ‎11-13-2018

@shankarananth agree to @martin_mueller 's approach. Your 2nd row will have first <panel> with only <single> and remaining three <panels> with four <table> elements. In order to align <single> value to the center of panel you may have to use CSS override like position: relative; top: 30% !important;

____________________________________________
| makeresults | eval message= "Happy Splunking!!!"

DalJeanis · ‎11-13-2018

paging @niketnilay - is vertical span like this possible in SimpleXML?
