In a dashboard, why can't I configure a drill down with a rex command containing special characters?

elyp
Explorer

I'm working on a dashboard, and trying to configure a drill down with a custom search. If the custom search contains the rex command, which includes several special characters including ?, <, >, then the drill down doesn't work. When clicking on a row in the dashboard to drill down, a new tab opens in chrome that just says about: blank, instead of opening a new tab with the Splunk search in it.

Steps to reproduce the issue

1) Create a test dashboard using the following simple XML:

  <label>dashboard test 1</label>
  <row>
    <panel>
      <table>
        <search>
          <query>index=wineventlog | head 10 | stats count by host</query>
          <earliest>-60m@m</earliest>
          <latest>now</latest>
        </search>
        <option name="drilldown">none</option>
      </table>
    </panel>
  </row>

2) Configure the drilldown. Choose Link to search > Custom, and paste in the following query. Save everything.

index=wineventlog host=$row.host$
| head 10
| rex field=Message "Domain:(?<domain>.*)"
| table domain

Note: Here is the simple XML this creates for me

        <option name="drilldown">cell</option>
        <drilldown>
          <link target="_blank">search?q=index=wineventlog host=$row.host$
| head 10
| rex field=Message "Domain:(?<domain>.*)"
| table domain&amp;earliest=&amp;latest=</link>
        </drilldown>

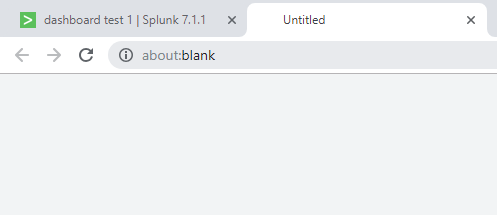

3) Click on a row in the dashboard, and observe a new tab opening that just says about:blank.

alt text

4) Go back and edit the drill down, and now enter the following query (I know the rex command isn't fully correct here!)

index=wineventlog host=$row.host$
| head 10
| rex field=Message "Domain:(domain.*)"
| table domain

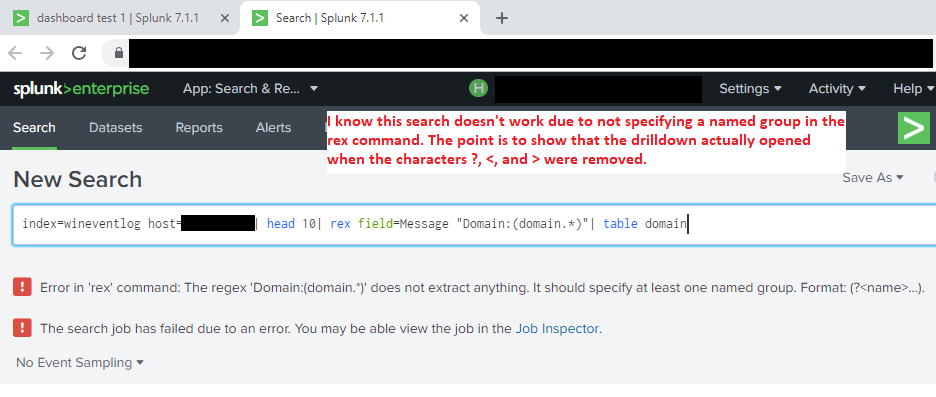

5) Again click on a row in the dashboard, and this time observe that a tab opens up with the splunk search.

Note that obviously there is an issue with the rex command; it doesn't have everything it needs. However, my point in showing this is to provide evidence that the problem can be narrowed down to the ?, <, or > characters causing the issue where just a blank tab opens up in the browser.

alt text

Why can't I configure a drill down, and in the custom search use the rex command with the ?, <, and > characters? Is there a way to get this to work?

Tags (3)
0 Karma
1 Solution

kamlesh_vaghela
SplunkTrust
SplunkTrust

@elyp

Can you please try this?

<form>
        <label>dashboard test 1</label>
   <row>
     <panel>
       <table>
         <search>
           <query>index=_internal | head 10 | stats count by host</query>
           <earliest>-60m@m</earliest>
           <latest>now</latest>
         </search>
         <option name="drilldown">cell</option>
         <drilldown>
           <link target="_blank"><![CDATA[ search?earliest=&latest=&q=index=wineventlog host=$row.host$ | head 10 | rex field=Message "Domain:(%3F<domain>.*)" | table domain]]></link>
         </drilldown>
       </table>
     </panel>
   </row>
     </form>

View solution in original post

0 Karma

kamlesh_vaghela
SplunkTrust
SplunkTrust

@elyp

Can you please try this?

<form>
        <label>dashboard test 1</label>
   <row>
     <panel>
       <table>
         <search>
           <query>index=_internal | head 10 | stats count by host</query>
           <earliest>-60m@m</earliest>
           <latest>now</latest>
         </search>
         <option name="drilldown">cell</option>
         <drilldown>
           <link target="_blank"><![CDATA[ search?earliest=&latest=&q=index=wineventlog host=$row.host$ | head 10 | rex field=Message "Domain:(%3F<domain>.*)" | table domain]]></link>
         </drilldown>
       </table>
     </panel>
   </row>
     </form>
0 Karma

elyp
Explorer

This worked.

So you have to wrap it in CDATA....AND THEN manually url encode at least one specific special character yourself. Space, =, \ , ., <, > all don't have to be url encoded, but ? does.

Does anyone know why CDATA doesn't handle this character?

0 Karma

kamlesh_vaghela
SplunkTrust
SplunkTrust

Some characters have special meaning in Simple XML files. To prevent the source code parser from treating them as special characters, wrap them in tags. But I think for URL encoding you have to handle this character.

http://docs.splunk.com/Documentation/Splunk/7.1.3/Viz/OverviewofSimplifiedXML#Special_characters_in_...

0 Karma

harsmarvania57
SplunkTrust
SplunkTrust

As @richgalloway mentioned, rex needs to be URL-encoded

Try below drilldown, it is working in my lab environment

        <drilldown>
          <link target="_blank">search?q=index=wineventlog host=$row.host$
 | head 10
 | rex field=Message "Domain:(%3F&lt;domain&gt;.*)"
 | table domain&amp;earliest=-60m@m&amp;latest=now</link>
        </drilldown>
0 Karma

elyp
Explorer

This didn't work. I had to wrap it in CDATA like kamlesh_vaghela's example.

0 Karma

harsmarvania57
SplunkTrust
SplunkTrust

Strange, for me this is working fine in 7.1.2

0 Karma

richgalloway
SplunkTrust
SplunkTrust

Such a well-written question!

Have you tried URL-encoding the rex arguments within the drilldown ?

---
If this reply helps you, Karma would be appreciated.
0 Karma
