Hi all
I'm struggling to make my chart how I want it.
Basically what I currently have, is a graph with a lot of logs received from certain services.
And that from the past 3 months.
- I don't understand why my months are ordered like this: 2022 December, 2023 February, 2023 January
Where January should be in the middle.
- Aside from this, my main struggle is to filter the top services with the highes
t logs. These are a lot higher than the other ones. So I'll have to make a 2nd graph with the smaller ones.
How can I filter the the top (say 4) out? (AND srv!=*** is not the proper way to do it in this case)
|dbxquery query="select to_char(received_ts,'YYYY Month') as Month,srv,sum(log_Count) as Total_Log_Count
from gmssp.esm.esm_audit_day
where client_id = ****
AND received_ts>= DATE_TRUNC('month', current_date) - '3 month'::interval
AND received_ts< DATE_TRUNC('month', current_date)
AND SRV!='ignor'
AND SRV!='UNK'
group by srv, month" connection="******"
| chart max(total_log_count) by srv month
Thanks a lot for your help!
The chart is ordered the way it is because X-axis labels are sorted lexicographically. "2022" comes before "2023" and "F" comes before "J". To put them into date order, you'd have to convert the month field into epoch form using strptime then use fieldformat to specify how it should be displayed.
The chart command has a limit option you can use to control how many results are displayed.
|dbxquery query="select to_char(received_ts,'YYYY Month') as Month,srv,sum(log_Count) as Total_Log_Count
from gmssp.esm.esm_audit_day
where client_id = ****
AND received_ts>= DATE_TRUNC('month', current_date) - '3 month'::interval
AND received_ts< DATE_TRUNC('month', current_date)
AND SRV!='ignor'
AND SRV!='UNK'
group by srv, month" connection="******"
| eval month = strptime(month, "%Y %B")
| chart limit=top 4 max(total_log_count) by srv month
| fieldformat month = strftime(month, "%Y %B")
hi @Splunker7 ,
at first Splunk isn't a database client, even if you can extract data from a database but in this way you have very low performaces: the best approach is to schedule a data extraction saving data in Splunk and then run searches on the index where you stored extracted data.
Then, charts are ordered in alphabetical order, for this reson january comes after february.
Convert tour dates in numbers (2023-02 instead of 2023-February) and you'll have an ordered chart.
About the second question,you could use a logarythmic scale to disaply your data to avoid great differences in column high.
Then if you want to exclude some results, you can use the where condition to filter your data
...
| stats max(total_log_count) AS max BY srv month
| where max<1000
I used 1000 as threshold but you can use the value you like.
Ciao.
Giuseppe
Hi @gcusello

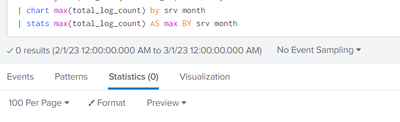

I've tried this already, but then I receive:
"No results found. Try expanding the time range."
No results found
Hi @Splunker7 ,
please run your main search (without stats) and check the presence of the following fields:
and if srv and month have the 100% of values.
Ciao.
Giuseppe
