Dashboards & Visualizations

Bar chart visualization

Naa_Win
Path Finder

Hello,

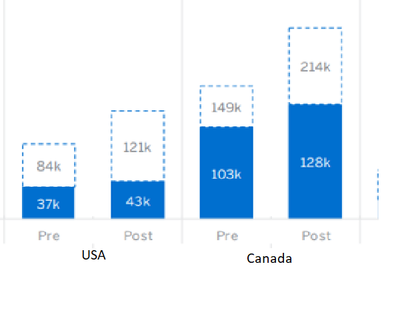

I have a below values in lookup and trying to achieve below bar chart view.
Country     old_limit        old_spend_limit      new_limit          new_spend_limit
   USA            84000             37000                       121000                   43000
  Canada     149000           103000                     214000                 128000

old_limit = PRE
new_limit = POST






Labels (1)
Tags (2)
0 Karma
1 Solution

bowesmana
SplunkTrust
SplunkTrust

You can do it by creating a stacked bar and setting the limit to be the gap (limit-spend) and creating the rows needed for the 4 groups.

Here's an example, but I suspect there is a better way

| makeresults
| eval _raw="Country,old_limit,old_spend_limit,new_limit,new_spend_limit
USA,84000,37000,121000,43000
Canada,149000,103000,214000,128000"
| multikv forceheader=1
| table Country old_limit old_spend_limit new_limit new_spend_limit
| foreach *_spend_limit [ eval "<<MATCHSEG1>>_gap"='<<MATCHSEG1>>_limit'-<<FIELD>>, type=if("<<MATCHSEG1>>"="old", "Pre", "Post"), MV=mvappend(mvzip(mvzip('<<MATCHSEG1>>_gap', '<<FIELD>>', ";"), type, ";"), MV) ]
| fields Country MV
| mvexpand MV
| rex field=MV "(?<gap>[^\;]*);(?<spend>[^\;]*);(?<type>.*)"
| eval Country=Country." ".type
| fields Country gap spend

This just creates a gap;spend field for each type (pre/post) and then expands the pair for each country.



View solution in original post

Naa_Win
Path Finder

@bowesmana  Thank you !!!

I had modified the query and and achieved what I'm looking for.....

| foreach *_spend_limit
[ eval type=if(match("<<MATCHSEG1>>","old"), "Pre", "Post"), MV=mvappend(mvzip(mvzip('<<MATCHSEG1>>_limit', '<<FIELD>>', ";"), type, ";"), MV) ]
| fields market MV
| mvexpand MV
| rex field=MV "(?<limit>[^\;]*);(?<spend>[^\;]*);(?<type>.*)"
| eval market=market." ".type
| fields market limit spend



0 Karma

bowesmana
SplunkTrust
SplunkTrust

You can do it by creating a stacked bar and setting the limit to be the gap (limit-spend) and creating the rows needed for the 4 groups.

Here's an example, but I suspect there is a better way

| makeresults
| eval _raw="Country,old_limit,old_spend_limit,new_limit,new_spend_limit
USA,84000,37000,121000,43000
Canada,149000,103000,214000,128000"
| multikv forceheader=1
| table Country old_limit old_spend_limit new_limit new_spend_limit
| foreach *_spend_limit [ eval "<<MATCHSEG1>>_gap"='<<MATCHSEG1>>_limit'-<<FIELD>>, type=if("<<MATCHSEG1>>"="old", "Pre", "Post"), MV=mvappend(mvzip(mvzip('<<MATCHSEG1>>_gap', '<<FIELD>>', ";"), type, ";"), MV) ]
| fields Country MV
| mvexpand MV
| rex field=MV "(?<gap>[^\;]*);(?<spend>[^\;]*);(?<type>.*)"
| eval Country=Country." ".type
| fields Country gap spend

This just creates a gap;spend field for each type (pre/post) and then expands the pair for each country.
