Splunk Search

issues with Field Extraction-Showing Error Messages

SplunkDash
Motivator

Hello,

I have some issues with field extractions and getting error messages. Sample data, extraction codes (REGEX), and error messages provided below. Any recommendation would be highly appreciated. Thank you so much, appreciate your support in these efforts.

 Sample Data:

TESTUser|TESTSYSTEM|DNSTEST|USERTEST|CREATE_SUPER_USER_GROUP|TEST_ELEMENT<GROUP_NAME_group3>|19e4e88e-7fb1-4309-b8a3-93180e41ef86|76.253.69.172|00||2022-04-14T23:59:33.059-0400|{dsUrn: testgroup:'da04c367-b41c-421a-85e1-d5ab759c0c82'}|NA|||||10.207.92.23|23|

TESTUser|TESTSYSTEM|DNSTEST|USER|VIS_EXPORT_EXCEL|TEST_ELEMENT<DNSTES_801482320>|ce01fdc2-2bbe-45ef-845b-f79576e215bf|65.144.148.136|00||2022-05-09T10:21:44.021-0400|{dsUrn: testgroup:'6f10e8f8-100b-4482-9b09-10e18504924c'}|NA|||||10.207.92.23|23|23as

TESTUser|TESTSYSTEM|DNSTEST|USERTEST|IMPERSONATE_USER|TEST_ELEMENT<USERNAME_TESTUser4>|c594626f-e6e9-4abd-9e0b-fa9861c47285|236.214.26.15|00||2022-05-10T07:52:48.052-0400|{dsUrn: testgroup:'DNS -3ac6-4e92-b50b-e903961f5894'}|NA|||||10.207.92.23|23|

TESTUser1TESTUser|TESTSYSTEM|DNSTEST|USER|VIS_SAVE|TEST_ELEMENT<UNVERIFIED_648656466>|5143518f-dc60-433b-a0cc-2fa024b25360|241.254.244.33|00||2022-05-02T05:01:58.001-0400|{dsUrn: testgroup:'157c4534-d970-4b7b-9181-1bddb8f7a670'}|NA|||||10.207.92.23|23|

|TESTSYSTEM|DNSTEST|USERTEST|ENABLE_USER|TEST_ELEMENT<USERNAME_TESTUser1>|2923b00c-0a95-465d-85aa-3af5387e992c|19.173.21.53|00||2022-05-29T12:13:26.013-0400|{dsUrn: 'DNS', groupId:'49de37d5-ea28-45ba-be52-84d933425636'}|NA|||||10.207.92.23|23|

TESTUser6|TESTSYSTEM|DNSTEST|USERTEST|ENABLE_USER|TEST_ELEMENT<USERNAME_TESTUser5>|0f1ba654-03bf-DNS-ac8f-8f5185232d42|245.236.181.176|00||2022-04-09T02:14:23.014-0400|{dsUrn: testgroup:'b6a89e91-ac03-4641-a3bc-166d013df252'}|NA|||||10.207.92.23|23|

TESTUser2|TESTSYSTEM|DNSTEST|USERTEST|UPDATE_TESTDATA|TEST_ELEMENT<USERNAME_TESTUser>|0acf2593-d7ee-4ba8-bf4e-29a4d4adcdaf|213.184.95.84|01|Failed to update TESTDATA. TESTDATA.|2022-03-12T08:03:19.003-0500|{dsUrn: 'gp', groupId:'9850940e-ff7b-4b77-820b-8d0472933c4a'}|NA|||||10.207.92.23|500|2w1

TESTUser|TESTSYSTEM|DNSTEST|USERTEST|CREATE_SUPER_USER_GROUP|TEST_ELEMENT<GROUP_NAME_group3>|9717a152-3809-416a-87a3-e9a4bc9b01a9|14.22.163.187|00||2022-03-19T10:34:35.034-0400|{dsUrn: 'DNSTEST', groupId:'cf9263ba-aff7-4e34-98c1-a09d17aaf8d6'}|NA|||||10.207.92.23|23|header12

REGEX

(?P<UserID>.*?)\|(?P<UserType>.*?)\|(?P<System>.*?)\|(?P<EventType>.*?)\|(?P<EventId>.*?)\|(?P<Subject>.*?)\|(?P<SID>.*?)\|(?P<IPAddr>.*?)\|(?P<EventStatus>.*?)\|(?P<Msg>\w*?)\|(?P<TimeStamp>.*?)\|(?P<DATA>.*?)\|(?P<Period>.*?)\|(?P<MCode>.*?)\|(?P<Type>.*?)\|(?P<Type>.*?)\|(?P<DeviceId>.*?)\|(?P<DesIP>.*?)\|(?P<Code>.*?)\|(?P<Headers>.*?)

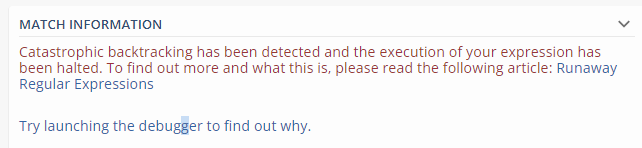

Error Messages:










Labels (2)
Tags (1)
0 Karma
1 Solution

gcusello
Legend

Hi @SplunkDash,

the problem is surely that you have a duplicated group name (Type), but there's also another problem that you haven't using somethng like this:

^(?P<UserID>\w*)\|(?P<UserType>\w*)\|(?P<System>\w*)\|(?P<EventType>\w*)\|(?P<EventId>[^\|]*)\|(?P<Subject>[^\|]*)\|(?P<SID>[^\|]*)\|(?P<IPAddr>[^\|]*)\|(?P<EventStatus>[^\|]*)\|(?P<Msg>[^\|]*)\|(?P<TimeStamp>[^\|]*)\|(?P<DATA>[^\|]*)\|(?P<Period>[^\|]*)\|(?P<MCode>[^\|]*)\|(?P<Type>[^\|]*)\|(?P<Type2>[^\|]*)\|(?P<DeviceId>[^\|]*)\|(?P<DesIP>[^\|]*)\|(?P<Code>[^\|]*)\|(?P<Headers>.*)

that you can test at https://regex101.com/r/kOm0YZ/1

Ciao.

Giuseppe

View solution in original post

gcusello
Legend

Hi @SplunkDash,

the problem is surely that you have a duplicated group name (Type), but there's also another problem that you haven't using somethng like this:

^(?P<UserID>\w*)\|(?P<UserType>\w*)\|(?P<System>\w*)\|(?P<EventType>\w*)\|(?P<EventId>[^\|]*)\|(?P<Subject>[^\|]*)\|(?P<SID>[^\|]*)\|(?P<IPAddr>[^\|]*)\|(?P<EventStatus>[^\|]*)\|(?P<Msg>[^\|]*)\|(?P<TimeStamp>[^\|]*)\|(?P<DATA>[^\|]*)\|(?P<Period>[^\|]*)\|(?P<MCode>[^\|]*)\|(?P<Type>[^\|]*)\|(?P<Type2>[^\|]*)\|(?P<DeviceId>[^\|]*)\|(?P<DesIP>[^\|]*)\|(?P<Code>[^\|]*)\|(?P<Headers>.*)

that you can test at https://regex101.com/r/kOm0YZ/1

Ciao.

Giuseppe

SplunkDash
Motivator

Hello @gcusello ,

I implemented your updated REGEX/REX through SPLUNK web interface, it's extracted as expected and showing no errors in preview. But no/any extracted fields are not showing up from search head.  Any thoughts? Thank you so much again and any recommendation would be helpful.



 Extracted through this SPLUNK Web Interface:








0 Karma

SplunkDash
Motivator

Hello @gcusello

Thank you so much for your quick response, truly appreciate it. Yes, you are absolutely correct, and your updated REGEX/REX is now working as expected. Fields are extracted the way it should be and getting no error messages. Thank you so much again and appreciate your support as always.

0 Karma
