Splunk Search

Is it possible to draw firewall connection diagram using Splunk Apps

nnehme
New Member
Greetings I am new to Splunk. I need to know if it is possible to draw a diagram using the below search results: Sourceip | Destinationip | Destination Port | Count 1.1.1.1 | 10.10.10.10 | 443 | 200 2.2.2.2 | 10.10.10.10 | 80 | 100 1.1.1.1 | 20.20.20.20 | 1521 | 90 1.1.1.1 | 10.10.10.10 | 445 | 80 I found the application "Network Diagram Viz" that could do something similar Kindly do you have any advice regarding this Please advise
0 Karma

richgalloway
SplunkTrust
SplunkTrust

The Network Diagram Viz app looks like it will do what you need.  The port and count fields are not needed, though.

---
If this reply helps you, Karma would be appreciated.
0 Karma

nnehme
New Member

Thank you for your reply.

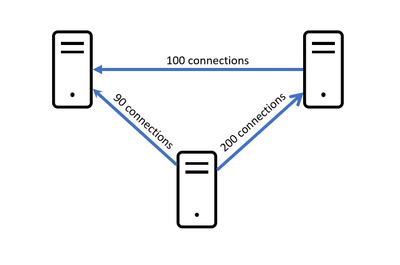

I am trying to get a diagram similar to the below

Any idea about the syntax search that we can use?


0 Karma

richgalloway
SplunkTrust
SplunkTrust

I have no experience with that app.  Perhaps the developer will help if you contact him.

---
If this reply helps you, Karma would be appreciated.
0 Karma
