How to configure Splunk to extract fields from XML data?

Path Finder

Splunk is not recognizing the fields. What is the recommended method to extract these fields, especially username which can be upper or lower case letters followed by 6 digits:

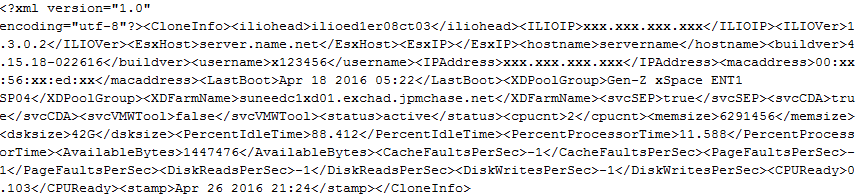

alt text

0 Karma

Motivator

Can you try this?

props.conf
[your_sourcetype]
TIME_FORMAT=%b %d %Y %H:%M
TIME_PREFIX=<stamp>
SHOULD_LINEMERGE=false
BREAK_ONLY_BEFORE=\<CloneInfo\>
MUST_BREAK_AFTER=\<\/CloneInfo\>
LINE_BREAKER=(</CloneInfo>)
REPORT-xmlfields=xmlfields

transforms.conf
[xmlfields]
REGEX = <([^\>]*)>([^\<]*)
FORMAT = $1::$2

This will extract every field like this:
<field_name>value</field_name>

its also extracting the _timestamp from the field you already have in you data. Does you XML have multiple tags? With this configs every becomes a separate event making the data more readable.

------------
Hope I was able to help you. If so, an upvote would be appreciated.

Path Finder

Thats great thanks. We have one issue that the username can be a multi value entry. This is because support may be remotely logged onto same host so could have 1 2 or 3 entries of username. The one we are interested in is the last value so could be:
username= a123456 b123456 c123456
username= b123456 c123456
username= c123456
Any way of exluding the others and ensuring the last one is always picked up in query?

Thanks

0 Karma

Motivator

can you post an example?

------------
Hope I was able to help you. If so, an upvote would be appreciated.
0 Karma

Path Finder

username as shown in screen shot a123456 b123456 c123456" followed by /username as shown.

It wont let me post as written.

0 Karma

Builder

Hi,

You can use the rex command to try that the extraction is correct, and then add to props.conf

Use this command in search to create the field user

|rex "\<username\>(?<user>[^\<]+)"

Hope i help you

0 Karma

Path Finder

Thanks. So in a distributed environment where would that sit? Forwarder IDX or SH?

0 Karma

Builder

Hi,

Only in the SH

0 Karma

Path Finder

Thanks but it does not look like a valid stanza for props.

0 Karma

Builder

Hi,

In props.conf you have to use this :

EXTRACT-user = \<username\>(?<user>[^\<]+)
0 Karma

Path Finder

great thanks.

0 Karma

Motivator

Can you post the sample again?

------------
Hope I was able to help you. If so, an upvote would be appreciated.
0 Karma

Path Finder

The username field can contain sometimes the first character of the users ID is uppercase, and other times they are lower case. In other cases, an engineer logs in for remote assistance and two or three sets of IDs where the right most ID is the one we want.

0 Karma

Path Finder

updated. thanks
