How can I put multi-value fields as columns and put checks were they are present ?

New Member

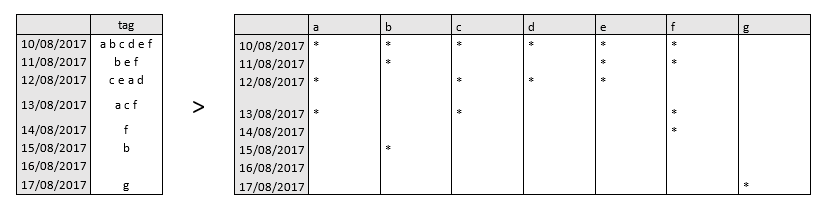

Hello everyone, I'm just beginning to use Splunk and iIwant to do this :

alt text

I already tried this :

index="************"
|fields tag, id
| mvexpand tag
|dedup tag
|chart limit=0 dc(id)  by id, tag
|replace 1 with "X"
|replace 0 with ""

But it doesn't work like I want, I lost some data when I dedup on tag...

What am I doing wrong? Could you help me?

Thank you for your time !

0 Karma
Highlighted

Re: How can I put multi-value fields as columns and put checks were they are present ?

SplunkTrust
SplunkTrust

I don't think you should be doing dedup. If your tag field is multivalued field and you want to show combinations of a id and tag, don't do dedup. Remove it and see if gives the output you want.

0 Karma
Highlighted

Re: How can I put multi-value fields as columns and put checks were they are present ?

SplunkTrust
SplunkTrust

We had to leave a blank value in there to have that day with no tags remain in the chart.

Here's a run anywhere sample...

| gentimes start=07/31/17 end=8/1/17
| eval mydata="+10d,a b c d e f!!!!+11d,b e f!!!!+12d,c e a d!!!!+13d,a c f!!!!+14d,f!!!!+15d,b!!!!+16d,((none))!!!!+17d,g"
| makemv DELIM="!!!!" mydata
| mvexpand mydata
| makemv DELIM="," mydata
| eval _time=relative_time(starttime,mvindex(mydata,0))
| eval tag=split(mvindex(mydata,1)," ")
| table _time tag
| mvexpand tag
| eval unit=1
| eval tag=if(tag="((none))"," ",tag)
| chart limit=0 eval(case(tag=" "," ",max(unit)>0,"X",true(),null())) over _time by tag

...with these results... (there is a blank column to the left of a)....

_time             a  b  c  d  e  f  g
2017-08-10        X  X  X  X  X  X
2017-08-11           X        X  X
2017-08-12        X     X  X  X
2017-08-13        X     X        X
2017-08-14                       X
2017-08-15           X
2017-08-16
2017-08-17                          X
0 Karma
Highlighted

Re: How can I put multi-value fields as columns and put checks were they are present ?

Esteemed Legend

Just add this:

| chart count OVER _time BY tag
| fields - NULL
| replace 1 with "*" 0 with ""
