Chart overlay is invisbile

Builder

Hi,

I am using line chart overlay on column chart. but It's not displaying overlay line chart, even though data points are present. When I hover the mouse, I can see all data points.

When I use charting.chart.nullValueMode = gaps , It display all data points as bubble.

 <option name="charting.chart.nullValueMode">gaps</option>

And charting.chart.nullValueMode = connect, won't display overlay chart.

<option name="charting.chart.nullValueMode">connect</option>

It there any other option to make line chart visible ?

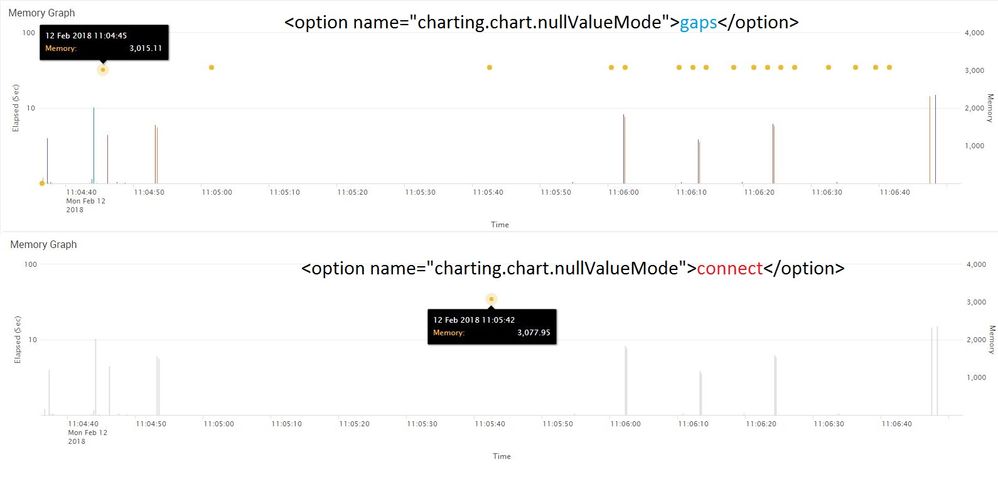

alt text

Query:

| tstats summariesonly=true max(MXTIMING.Elapsed) AS Elapsed FROM datamodel=MXTIMING_V3 WHERE source="$MXTIMING_FULL_FILE_token$" GROUPBY MXTIMING.Context+Command MXTIMING.Time _time  | rename MXTIMING.Context+Command as Context+Command  | rename MXTIMING.Time as Time | timechart bins=1000 max(Elapsed)   by Context+Command  | appendcols [ | tstats summariesonly=true max(MXTIMING.Memory) AS Memory FROM datamodel=MXTIMING_V3 WHERE source="$MXTIMING_FULL_FILE_token$" GROUPBY MXTIMING.Context+Command MXTIMING.Time _time | timechart bins=1000 max(Memory) as Memory ]

Thanks

Motivator

have you tried <option name="charting.chart.nullValueMode">zero</option>

0 Karma

Builder

not working. It just showing bubble if value is zero.

0 Karma

Explorer

@agoyal did you ever find the answer for this??? even i am facing the same issue.

0 Karma

Champion

Hi,

Can you try adding following parameter below nullValueMode = connect:

 <option name="charting.chart.showMarkers">true</option>
0 Karma

Builder

After adding this chart is showing only bubbles at data points , no line to connect them.
