Monitoring Splunk

How to calculate max and actual search concurrency

dexterp
Explorer

Note: I'm answering my own question here for posterity as I'm sure others will want to find the answer. I haven't seen anyone provide good solution to this question.

Question: How does one calculate actual search concurrency usage and overlay with maximum search concurrency.

Answer to follow.



0 Karma
1 Solution

dexterp
Explorer

The Answer.

The calculation for max concurrent searches is

(max_searches_per_cpu * cpu_count + base_max_searches) * num_search_members

where ...

  • max_searches_per_cpu - is a setting in limits.conf -> search stanza
  • cpu_count - is actual real cores not virtual cores
  • base_max_searches - is a setting in limits.conf -> search stanza
  • num_search_members - is the number search heads in the cluster

The calculation for actual concurrent searches

Data is in the _audit index

The logic consists of

  • find the start time of a search and increment the count +1
  • find the end time of a search and decrement the count -1
  • using streamstats one can achieve a running count
  • the start time is found by using _time=exec_time
  • the end time is found using _time=exec_time+total_run_time
  • use makemv and mvexpand to generate the start and end times

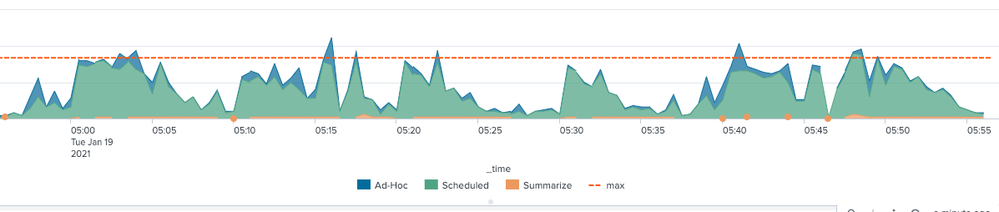

Example Timechart

  • max concurrent searches is overlayed
  • search type is stacked

Screen Shot 2021-01-20 at 12.57.53 am.png

Search

  • Replace <search_heads> with your search head(s)

index=_audit action=search host=<search_heads> NOT "search_id='rsa_scheduler"
| fields - _raw
| eval search_type=case(match(search_id,"scheduler_"),"Scheduled",match(search_id,"SummaryDirector"),"Summarize")
| eval search_type=if(isnull(search_type),"Ad-Hoc",search_type)
| eval end_time=exec_time + total_run_time
| eval events=exec_time + " " + search_type + " 1:" + end_time + " " + search_type +" -1"
| fields _time events
| makemv delim=":" events
| mvexpand events
| rex field=events "(?<_time>\S+)\s+(?<type>\S+)\s+(?<incr>\S+)"
| fields - events
| sort 0 _time
| streamstats current=f sum(incr) as concur by type
| timechart span=30s first(concur) by type
| eval "max search concurrency" = [
    | rest /services/properties/limits/search/max_searches_per_cpu
    | fields splunk_server value
    | rename value as max_searches_per_cpu
    | append [
         | rest /services/properties/limits/search/base_max_searches
         | fields splunk_server value
         | rename value as base_max_searches
    ]
    | append [
        | rest splunk_server=<search_heads> /services/server/status/resource-usage/hostwide
        | eval cpu_count = if(isnull(cpu_count), "0", cpu_count)
        | fields splunk_server cpu_count
    ]
    | stats values(max_searches_per_cpu) as max_searches_per_cpu values(base_max_searches) as base_max_searches values(cpu_count) as cpu_count by splunk_server
    | eval instance_max_concurrent_searches = (max_searches_per_cpu * cpu_count + base_max_searches)
    | stats sum(instance_max_concurrent_searches) as max
    | return $max
]

Please Upvote if you fine helpful

View solution in original post

dexterp
Explorer

The Answer.

The calculation for max concurrent searches is

(max_searches_per_cpu * cpu_count + base_max_searches) * num_search_members

where ...

  • max_searches_per_cpu - is a setting in limits.conf -> search stanza
  • cpu_count - is actual real cores not virtual cores
  • base_max_searches - is a setting in limits.conf -> search stanza
  • num_search_members - is the number search heads in the cluster

The calculation for actual concurrent searches

Data is in the _audit index

The logic consists of

  • find the start time of a search and increment the count +1
  • find the end time of a search and decrement the count -1
  • using streamstats one can achieve a running count
  • the start time is found by using _time=exec_time
  • the end time is found using _time=exec_time+total_run_time
  • use makemv and mvexpand to generate the start and end times

Example Timechart

  • max concurrent searches is overlayed
  • search type is stacked

Screen Shot 2021-01-20 at 12.57.53 am.png

Search

  • Replace <search_heads> with your search head(s)

index=_audit action=search host=<search_heads> NOT "search_id='rsa_scheduler"
| fields - _raw
| eval search_type=case(match(search_id,"scheduler_"),"Scheduled",match(search_id,"SummaryDirector"),"Summarize")
| eval search_type=if(isnull(search_type),"Ad-Hoc",search_type)
| eval end_time=exec_time + total_run_time
| eval events=exec_time + " " + search_type + " 1:" + end_time + " " + search_type +" -1"
| fields _time events
| makemv delim=":" events
| mvexpand events
| rex field=events "(?<_time>\S+)\s+(?<type>\S+)\s+(?<incr>\S+)"
| fields - events
| sort 0 _time
| streamstats current=f sum(incr) as concur by type
| timechart span=30s first(concur) by type
| eval "max search concurrency" = [
    | rest /services/properties/limits/search/max_searches_per_cpu
    | fields splunk_server value
    | rename value as max_searches_per_cpu
    | append [
         | rest /services/properties/limits/search/base_max_searches
         | fields splunk_server value
         | rename value as base_max_searches
    ]
    | append [
        | rest splunk_server=<search_heads> /services/server/status/resource-usage/hostwide
        | eval cpu_count = if(isnull(cpu_count), "0", cpu_count)
        | fields splunk_server cpu_count
    ]
    | stats values(max_searches_per_cpu) as max_searches_per_cpu values(base_max_searches) as base_max_searches values(cpu_count) as cpu_count by splunk_server
    | eval instance_max_concurrent_searches = (max_searches_per_cpu * cpu_count + base_max_searches)
    | stats sum(instance_max_concurrent_searches) as max
    | return $max
]

Please Upvote if you fine helpful

View solution in original post
