Dashboards & Visualizations

Multi select drop down is not working .

hrs2019
Path Finder

Hello every one,

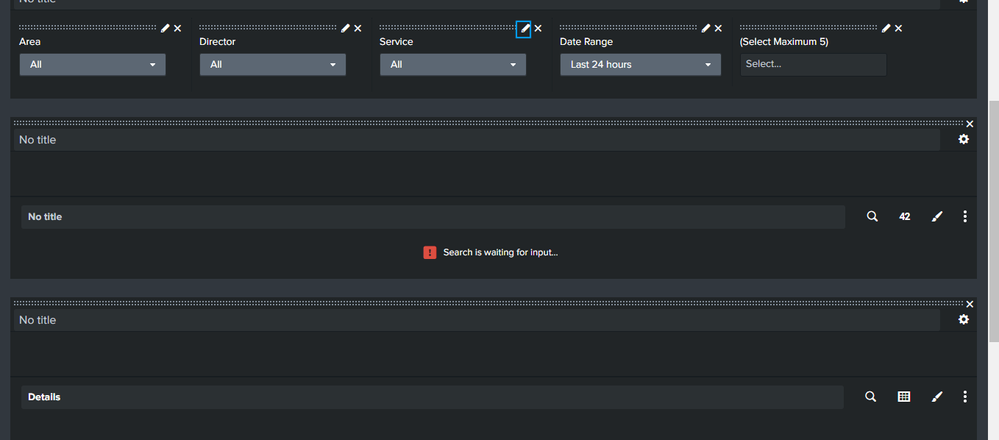

Issue- Multiselect is not working if I remove all the fields from multi select box, it is not hiding it is showing waiting for data.
want to display- if i remove all the value from multi select it should hide the panel.
some token issue i believe.
can anyone help me?

alt text

<form hideEdit="false" theme="dark">
   <label>test</label>
   <search>
     <query>
           | makeresults | eval ID= len($test$) | fillnull value="ABC" | where testl!="ABC" | table testl
         </query>
     <done>
       <condition match="$job.resultCount$&gt;0">
         <set token="display_count">true</set>
       </condition>
       <condition>
         <unset token="display_count"></unset>
       </condition>
     </done>
   </search>
   <fieldset autoRun="true" submitButton="false"></fieldset>
   <row>
     <panel>
       <input type="dropdown" token="director" searchWhenChanged="true">
         <label>Managing Director</label>
         <choice value="*">All</choice>
         <fieldForLabel>Managing Director</fieldForLabel>
         <fieldForValue>Managing Director</fieldForValue>
         <search>
           <query>| loadjob savedsearch="test100" | search Service="$area$" CapabilityIN ($lead$) table "Director"</query>
           <done>
             <set token="enabledownload">none</set>
             <unset token="display_details"></unset>
           </done>
         </search>
         <default>*</default>
         <initialValue>*</initialValue>
       </input>
       <input type="dropdown" token="lead" searchWhenChanged="true">
         <label>Service Manager</label>
         <choice value="*">All</choice>
         <fieldForLabel>Service Manager</fieldForLabel>
         <fieldForValue>Service Manager</fieldForValue>
         <search>
           <query>| loadjob savedsearch="test100" | search Service="$area$" DirectorIN ($director$) | table "Service Manager"</query>
           <done>
             <set token="enabledownload">none</set>
             <unset token="display_details"></unset>
           </done>
         </search>
         <default>*</default>
         <initialValue>*</initialValue>
       </input>
       <input type="time" token="date_range" searchWhenChanged="true">
         <label>Date Range</label>
         <default>
           <earliest>-24h@h</earliest>
           <latest>now</latest>
         </default>
       </input>
       <input type="multiselect" token="test" searchWhenChanged="true">
         <label> (Select Maximum 5)</label>
         <search>
           <done>
             <set token="enabledownload">none</set>
             <set token="display_details"></set>
           </done>
           <query>| loadjob savedsearch="test100"| search Service="$area$" DirectorIN ($director$) | table "" </query>
         </search>
         <change>
           <eval token="form.test">if(mvcount('form.test')=6, mvindex('form.test',0,4),'form.test')</eval>
         </change>
         <fieldForLabel></fieldForLabel>
         <fieldForValue></fieldForValue>
         <delimiter>,</delimiter>
         <valuePrefix>"</valuePrefix>
         <valueSuffix>"</valueSuffix>
       </input>
     </panel>
   </row>
   <row>
     <panel id="panel1" depends="$display_count$">
       <title></title>
       <single>
         <search>
           <query></query>
           <earliest>$date_range.earliest$</earliest>
           <latest>$date_range.latest$</latest>
           <sampleRatio>1</sampleRatio>
         </search>
         <drilldown>
           <set token="display_details">true</set>
           <set token="level">404</set>
           <set token="enabledownload">none</set>
         </drilldown>
       </single>
     </panel>
   </row>
   <row>
     <panel depends="$display_details$">
       <html>
        <a role="button" href="/api/search/jobs/$export_sid$/results?isDownload=true&amp;timeFormat=%25FT%25T.%25Q%25%3Az&amp;maxLines=0&amp;count=0&amp;filename=test-Issues.csv&amp;outputMode=csv" class="btn btn-primary" style="display:$enabledownload$">Download Details (CSV)</a>
       </html>
       <table>
         <title>Details</title>
         <search>
           <done>
             <set token="export_sid">$job.sid$</set>
             <set token="enabledownload">inline</set>
           </done>
           <query>savesearch=test100</query>
           <earliest>$date_range.earliest$</earliest>
           <latest>$date_range.latest$</latest>
         </search>
         <option name="count">3</option>
         <option name="drilldown">none</option>
       </table>
     </panel>
   </row>
 </form>
Labels (3)
0 Karma

pavanml
Path Finder

You can use the same token $test$ of the (Select Maximum 5) of multi value panel for controlling the display of other panels. When nothing is selected the token $test$ will be unset so that can help control the display.

0 Karma
