Solved: Re: trellis center

splunksumman · ‎02-26-2019

Hi community,

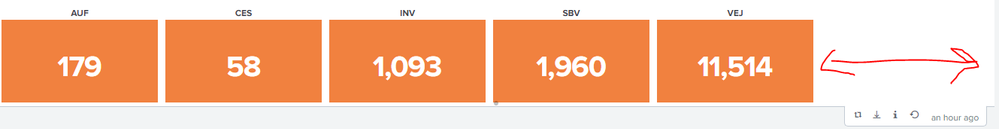

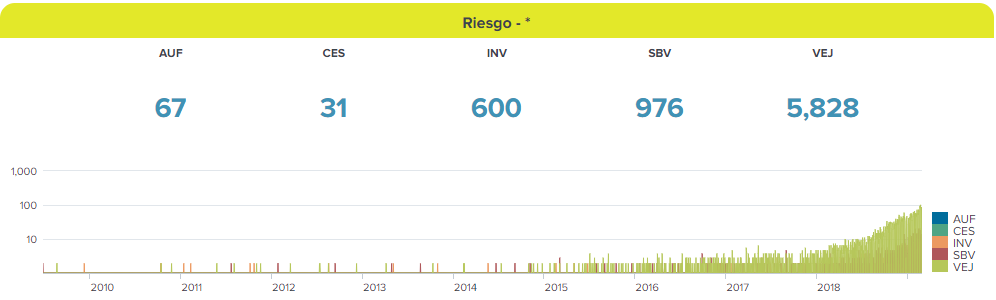

Is it possible to center single values trellis in a panel?

Thanks you.

vnravikumar · ‎02-26-2019

Hi @splunksumman

Try this and let me know

<dashboard>
  <label>single</label>
  <row>
    <panel>
      <html>
      <style>
        #test .facets-container{
        display: flex !important;
        justify-content: center !important;
        }
      </style>
    </html>
      <single id="test">
        <search>
          <query>index="_internal" |stats count by source | top limit=5 source</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="colorMode">block</option>
        <option name="drilldown">none</option>
        <option name="rangeColors">["0x53a051","0x0877a6","0xf8be34","0xf1813f","0xdc4e41"]</option>
        <option name="trellis.enabled">1</option>
        <option name="useColors">1</option>
      </single>
    </panel>
  </row>
</dashboard>

View solution in original post

splunksumman · ‎02-27-2019

Hi vnravikumar,

Excellent, thank you very much for your support.

vnravikumar · ‎02-26-2019

Hi @splunksumman

Try this and let me know

<dashboard>
  <label>single</label>
  <row>
    <panel>
      <html>
      <style>
        #test .facets-container{
        display: flex !important;
        justify-content: center !important;
        }
      </style>
    </html>
      <single id="test">
        <search>
          <query>index="_internal" |stats count by source | top limit=5 source</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="colorMode">block</option>
        <option name="drilldown">none</option>
        <option name="rangeColors">["0x53a051","0x0877a6","0xf8be34","0xf1813f","0xdc4e41"]</option>
        <option name="trellis.enabled">1</option>
        <option name="useColors">1</option>
      </single>
    </panel>
  </row>
</dashboard>

Software-Simian · ‎05-05-2022

Hi,

this works like a peach if you do not have multiple lines in the trellis. If i sue this all charts are forced in one line and i get a scrollbar. Is it possible to leave the "line breaks" and still center?

Kind regards,

Mike

YuliyaVassilyev · ‎01-21-2021

That works, thank you! I have one panel where i centered trellis and then i have drilldown that shows more trellis values that are also centered. Can i make it so that second panel is not automatically centered?

Because the second panel is centered i cannot see some of the values...
