Dashboards & Visualizations

Input button to Left Hand Side

sarithapguptha
Engager

Hi,

I want to show the input , drop down , checkbox and radio buttons completely in left hand side and my main dashboard data in right hand side, any idea how to do.

0 Karma

niketnilay
Legend

@sarithapguptha can you add the mock screenshot of what you need? Also what is your current dashboard snippet for inputs?

____________________________________________
| makeresults | eval message= "Happy Splunking!!!"
0 Karma

sarithapguptha
Engager

@niketnilay



I want the dropdown button in the left hand side, not above as shown in the image attached.



I have Host, input type, Input name and error type filters in left side intead of above.




0 Karma

niketnilay
Legend

If Dropdown and inputs move on the left side (without mock up of expected output I am assuming stacked vertcally) then what will be on the right side? Empty space?

For us to assist you better please provide a mock screenshot of the layout you need. Whiteboard image or paint image will also do.

____________________________________________
| makeresults | eval message= "Happy Splunking!!!"
0 Karma

sarithapguptha
Engager

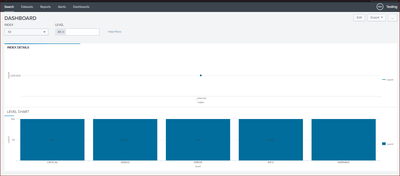

I want the filters in left side and the panels in right side, the below shows the panels below the filters which i have now.




the code is

<form>
<label>DASHBOARD</label>
<fieldset submitButton="false">
<input type="dropdown" token="field3" searchWhenChanged="true">
<label>INDEX</label>
<choice value="*">All</choice>
<default>*</default>
<initialValue>*</initialValue>
<fieldForLabel>index</fieldForLabel>
<fieldForValue>index</fieldForValue>
<search>
<query>index=_internal | stats count by index</query>
<earliest>-24h@h</earliest>
<latest>now</latest>
</search>
</input>
<input type="multiselect" token="field4" searchWhenChanged="true">
<label>LEVEL</label>
<choice value="*">All</choice>
<default>*</default>
<initialValue>*</initialValue>
<fieldForLabel>level</fieldForLabel>
<fieldForValue>level</fieldForValue>
<search>
<query>index=_internal | stats count by level</query>
<earliest>-24h@h</earliest>
<latest>now</latest>
</search>
<delimiter> </delimiter>
</input>
</fieldset>
<row>
<panel>
<chart>
<title>INDEX DETAILS</title>
<search>
<query>index=_internal | stats count by index</query>
<earliest>-24h@h</earliest>
<latest>now</latest>
</search>
<option name="charting.chart">line</option>
<option name="charting.drilldown">none</option>
</chart>
</panel>
</row>
<row>
<panel>
<title>LEVEL CHART</title>
<chart>
<search>
<query>index=_internal | stats count by level</query>
<earliest>-7d@h</earliest>
<latest>now</latest>
<sampleRatio>1</sampleRatio>
</search>
<option name="charting.chart">column</option>
<option name="charting.chart.showDataLabels">all</option>
<option name="charting.chart.stackMode">stacked100</option>
<option name="charting.drilldown">none</option>
</chart>
</panel>
</row>
</form>

0 Karma
