Dashboards & Visualizations

How to visually distinguish dashboard column values?

zacksoft_wf
Contributor

The objective is to display multiple modifications done by the Submitter, And to show number of modifications, respective filenames and hash names.
Example :
Submitter John did 15 modifications,
3 modification to file app.exe
2 modifications to gap.exe
10 modifications to rap.exe.

So the display should show 15 hash files . And my SPL does the job.
The SPL ends with



| stats values(risk_country) AS extreme_risk_country, list(flagged_threat) AS flagged_threat, list(times_submitted) AS times_submitted, list(md5_count) AS unique_md5, list(meaningful_name) AS file_name, list(md5_value) as md5 by submitter_id

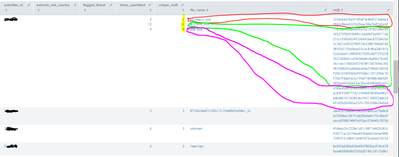

I do see the results, but I am unable to easily eye-ball where the hash file of one filename ends and other one begins. especially when there are lots of hashes.  Please check the attachment of the output I am getting. I want to easily see/distinguish where one set of hashes finish for a file and other one starts.

I am looking for suggestions to achieve it in some way to look it visually separate .

Thank you.




Labels (1)
0 Karma
1 Solution

ITWhisperer
SplunkTrust
SplunkTrust

This line

| stats sum("attributes.times_submitted") AS times_submitted, dc("attributes.md5") AS md5_count, values("attributes.md5") AS md5_value, values(risk_country) as risk_country, values(flagged_threat) AS flagged_threat by "attributes.meaningful_name", "context_attributes.submitter.id"

has effectively collapsed all the unique md5 values by file name (attributes.meaningful_name).

View solution in original post

0 Karma

ITWhisperer
SplunkTrust
SplunkTrust

My guess is that it is elsewhere in the SPL. For example, how do you calculate md5_count?

0 Karma

zacksoft_wf
Contributor

index="secue" sourcetype="sec:json" attributes.meaningful_name!="" | rename "context_attributes.submitter.country" AS country | eval match_risk="Extreme" | lookup riskyNation.csv country_code AS country, Risk AS match_risk OUTPUTNEW Country AS risk_country | fillnull value=" " risk_country | rename "attributes.popular_threat_classification.popular_threat_name{}.value" AS threat_name | lookup flagged_threats.csv threat_name AS threat_name OUTPUTNEW flagged_threat | fillnull value=" " flagged_threat | stats sum("attributes.times_submitted") AS times_submitted, dc("attributes.md5") AS md5_count, values("attributes.md5") AS md5_value, values(risk_country) as risk_country, values(flagged_threat) AS flagged_threat by "attributes.meaningful_name", "context_attributes.submitter.id" | search md5_count > 1 | rename "context_attributes.submitter.id" AS submitter_id | rename "attributes.meaningful_name" AS meaningful_name | stats values(risk_country) AS extreme_risk_country, list(flagged_threat) AS flagged_threat, list(times_submitted) AS times_submitted, list(md5_count) AS unique_md5, list(meaningful_name) AS file_name, list(md5_value) as md5 by submitter_id

0 Karma

ITWhisperer
SplunkTrust
SplunkTrust

This line

| stats sum("attributes.times_submitted") AS times_submitted, dc("attributes.md5") AS md5_count, values("attributes.md5") AS md5_value, values(risk_country) as risk_country, values(flagged_threat) AS flagged_threat by "attributes.meaningful_name", "context_attributes.submitter.id"

has effectively collapsed all the unique md5 values by file name (attributes.meaningful_name).

0 Karma
