How to show Splunk field based on count of another field on a bar chart?

POR160893
Builder

Hi,

I have a table of data which I need to display the count of "Migration Stratus" in a bar chart.

Here is the raw data:

Location Number of Devices Migration Status When Planned
Bangalore, India 10 Not Started Not Known
Cork, IRE 4 Not Started Not Known
Eldorado Du Sol, Brazil 3 Not Started Not Known
Hopkinton, USA 4 Not Started Not Known
Otemachi, Japan 3 Not Started Not Known
Cyberjaya, Malaysia 4 Not Started Not Known
Limerick, IRE 4 Not Started Not Known
Austin, USA 6 Not Started Not Known
Penang, Malaysia 5 Not Started Not Known
Durham, USA 6 Not Started Not Known
Singapore, Singapore 4 Not Started Not Known
Santa Clara, USA 2 Not Started Not Known
Sydney, Australia 2 In Progress FY23 Q2
Xiamen, China 6 Not Started Not Known

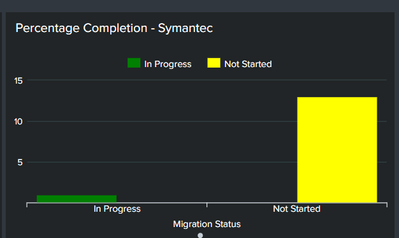

Here is my current output, where when I hoover over "In Progress" it shows 1 and over "Not Started", shows 13:



At the moment, my query is just counting the number of rows for a particular value in "Migration Status" and this value is what is seen when hoovering over each bar on bar chart:

| inputlookup Migration-Status-Symantec3.csv
| fillnull value=null
| eval dummy = 'Migration Status'
| chart count over "Migration Status" by dummy



What I need is the SUMMATION of "Number of Devices" for a particular value in "Migration Status".

How can this be achieved????


Many thanks as always 🙂

Labels (1)
0 Karma
1 Solution

ITWhisperer
SplunkTrust
SplunkTrust
| stats count as "Number of Devices" values(Migration Status) as "Migration Status" values(Planned Migration Completion Iteration) as "Planned Migration Completion Iteration" by Location

View solution in original post

ITWhisperer
SplunkTrust
SplunkTrust
| chart sum('Number of Devices') over "Migration Status" by dummy

POR160893
Builder

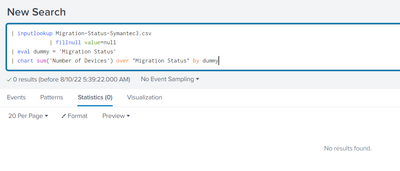

I tried this but seems it is not picking up the dummy variable:




What you think?

0 Karma

ITWhisperer
SplunkTrust
SplunkTrust

Looks like you might not need the quotes in the sum function

| chart sum(Number of Devices) over "Migration Status" by dummy

POR160893
Builder

Similarly,

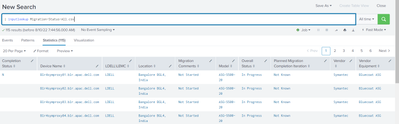

For the same dashboard but different data source, the data is as follows:

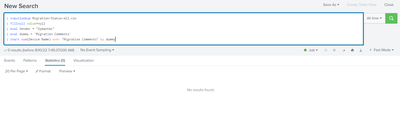

I need to find total number for each category in "Migration Comments" but the same query is not working?







What may be the issue?


Thanks for help so far btw!

0 Karma

ITWhisperer
SplunkTrust
SplunkTrust

You are trying sum strings - I wouldn't have thought that that was what you wanted to do?

POR160893
Builder

You are correct actually 🙂


I didn't articulate my issue exactly.

I have the following query:
| inputlookup Migration-Status-All.csv
| search Vendor = "McAfee"
| eval Migration_Status=case(like('Planned Migration Completion Iteration', "Decom by%"), "Done", 'Planned Migration Completion Iteration'=="In progress", "In progress", 1==1, "Not Started")
| table Location, Migration_Status, "Planned Migration Completion Iteration"
| streamstats count as Number_of_Devices by Location

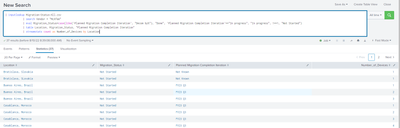

But:









As you can, there are multiple entries for the same Location .... I need the sum(Number_Of_Devices) by Location and have that sum to be placed under "Number_of_Devices".


Is this possible?

0 Karma

ITWhisperer
SplunkTrust
SplunkTrust

I am not sure why you are using streamstats

| stats count as Number_of_Devices by Location

POR160893
Builder

The only reason I used the streamstats command is I need the following 4 columns:
"Location", ""Migration Status", "Planned Migration Completion Iteration", "Number of Devices".




But there is no count of devices per location.

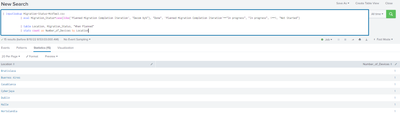

When I run your query, I get this:


So, there are missing columns .....
Not sure why

Tags (1)
0 Karma

ITWhisperer
SplunkTrust
SplunkTrust

Try eventstats if you want to keep the other fields

| eventstats count as Number_of_Devices by Location

POR160893
Builder

Still no luck ....




0 Karma

ITWhisperer
SplunkTrust
SplunkTrust

What would you like these results to look like?

POR160893
Builder

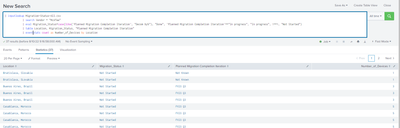

I need the results to look like the following:




0 Karma

ITWhisperer
SplunkTrust
SplunkTrust

Isn't that what you already had with your streamstats solution?

POR160893
Builder

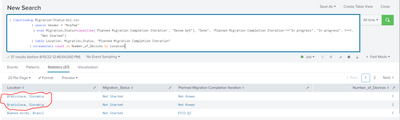

No, streamstats gave me individual rows for the same country .... should be 1 entry p2r location:


In above screenshot, should be 1 entry got "Bratislava" with "Number of Devices" = 2

0 Karma

ITWhisperer
SplunkTrust
SplunkTrust

Those are two different locations, one is in Slovakia, the other is in SLovakia

POR160893
Builder

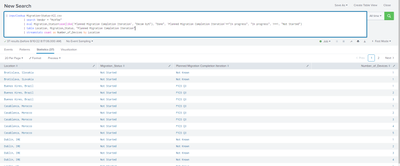

Changing how "Slovakia" was spelled sadly didn't make any difference:






All I need is a count(device) by Country 🙄

Tags (1)
0 Karma

ITWhisperer
SplunkTrust
SplunkTrust

Well it did make a difference - the count now has 1 and 2

POR160893
Builder

Hahaha touche Sir ... sadly, it is not the change I need 😞
I need a single row entry per location with the total number of devices for that given location ....

0 Karma

ITWhisperer
SplunkTrust
SplunkTrust
| stats count as "Number of Devices" values(Migration Status) as "Migration Status" values(Planned Migration Completion Iteration) as "Planned Migration Completion Iteration" by Location

POR160893
Builder

We got there :)))))
Thanks so much for your help on this Sir. (I obviously gave you Kudos for all your messages 😀)
