How to have a Splunk Line Chart Visual to have a bullet point at each data point entry?

CodingMaestro
Path Finder

Hi Guys,

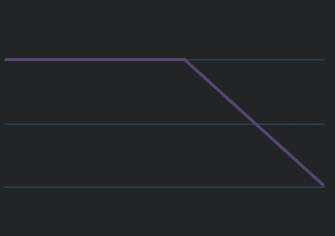

So currently i have a line chart on a dashboard which looks like below:

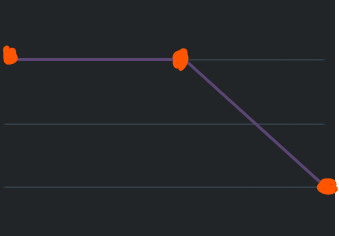

But i need the line chart to have a bullet point at each data point entry something like below. If someone could help me out on how i can achieve this. Would be great. Thanks




Labels (2)
0 Karma
1 Solution

CodingMaestro
Path Finder

<option name="charting.chart.showMarkers">true</option>
<option name="charting.chart.markerSize">3</option>

View solution in original post

0 Karma

CodingMaestro
Path Finder

<option name="charting.chart.showMarkers">true</option>
<option name="charting.chart.markerSize">3</option>

0 Karma
