Dashboards & Visualizations

How to apply CSS on first time picker

ss026381
Communicator

I have two time pickers in a dashboard and I want to hide relative and advanced accordion for first time picker.

I see some help is provided here https://answers.splunk.com/answers/594307/is-there-a-way-to-remove-the-real-time-part-that-a.html and https://answers.splunk.com/answers/471868/how-to-hide-real-time-presets-option-in-the-time-r.html bud they didnt work for me.

Any CSS wizard here. help is appreciated.

0 Karma
1 Solution

niketn
Legend

@ss026381, so hiding few time range accordions from only one of the time picker is not straight-forward CSS job. It would also require JavaScript Extension with Splunk JS Stack.

When we click on time input (the dropdown with default/selected time), its corresponding popdown-dialog (the dialog box with detailed time range accordions) is displayed which has theid same as that of the time input's data-dialog-id. (The id or data-dialog-id is a dynamic view number generated each time dashboard loads, hence can not be used statically in the dashboard CSS override).

Further the position of the popdown-dialog with time range accordions does not have fixed position in the DOM i.e. it is not necessary that for the first time input in the dashboard, the corresponding popdown-dialog will be displayed first. Its position is actually depended on which Time Picker is clicked first. So, we can also not apply position specific CSS override i.e. using first-child, last-child or nth-child.

The only option we are left with is that
1) On click of Time Input, capture the corresponding data-dialog-id and set the token.
2) Use token as CSS Selector for popdown-dialog for CSS override to hide unwanted time range accordions from specific time input.

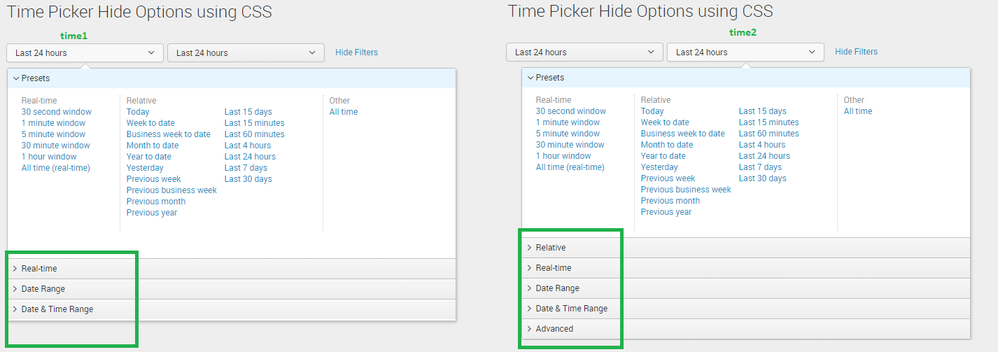

alt text

Following is the Simple XML Dashboard code:

<form script="timepicker_hide_timerange.js">
  <label>Time Picker Hide Options using CSS</label>
  <fieldset submitButton="false">
    <input id="time1" type="time" token="tokTime1">
      <label></label>
      <default>
        <earliest>-24h@h</earliest>
        <latest>now</latest>
      </default>
    </input>
    <input id="time2" type="time" token="tokTime2">
      <label></label>
      <default>
        <earliest>-24h@h</earliest>
        <latest>now</latest>
      </default>
    </input>
  </fieldset>
  <row>
    <panel>
      <title>$tokTimePicker1DialogID$</title>
      <html depends="$alwaysHideCSSPanel$">
        <style>
          div.popdown-dialog[id="$tokTimePicker1DialogID$"] div[id^="relative_view"],div.popdown-dialog[id="$tokTimePicker1DialogID$"] div[id^="advanced_view"]{
            visibility:hidden !important;
          }
          div.popdown-dialog[id="$tokTimePicker1DialogID$"] .shared-timerangepicker-dialog {
            height: 360px !important;
          }
        </style>
      </html>
    </panel>
  </row>
</form>

Following is corresponding JavaScript timepicker_hide_timerange.js, which would need to be placed under your Splunk app's appserver/static folder i.e. $SPLUNK_HOME/etc/apps/<YourAppName>/appserver/static. If the appserver/static folder does not exist that would need to be created. If required Splunk may be required to refresh/restart or bump. Also internet browser history would need to be cleared.

require([
     'jquery',
     'splunkjs/mvc',
     'splunkjs/mvc/simplexml/ready!'
 ], function($,mvc){

    var defaultTokenModel=mvc.Components.get("default");
    var submittedTokenModel=mvc.Components.get("submitted");
    $(document).on("click", "#time1 a.splBackground-primary", function() {
        var strValue=$("#time1 a.splBackground-primary").attr("data-dialog-id");
        if (strValue!==undefined){
            defaultTokenModel.set("tokTimePicker1DialogID",strValue);
            submittedTokenModel.set("tokTimePicker1DialogID",strValue);
        }
    });
});

Please try out and confirm!

____________________________________________
| makeresults | eval message= "Happy Splunking!!!"

View solution in original post

ss026381
Communicator

Thanks @niketnilay, it works

niketn
Legend

@ss026381, so hiding few time range accordions from only one of the time picker is not straight-forward CSS job. It would also require JavaScript Extension with Splunk JS Stack.

When we click on time input (the dropdown with default/selected time), its corresponding popdown-dialog (the dialog box with detailed time range accordions) is displayed which has theid same as that of the time input's data-dialog-id. (The id or data-dialog-id is a dynamic view number generated each time dashboard loads, hence can not be used statically in the dashboard CSS override).

Further the position of the popdown-dialog with time range accordions does not have fixed position in the DOM i.e. it is not necessary that for the first time input in the dashboard, the corresponding popdown-dialog will be displayed first. Its position is actually depended on which Time Picker is clicked first. So, we can also not apply position specific CSS override i.e. using first-child, last-child or nth-child.

The only option we are left with is that
1) On click of Time Input, capture the corresponding data-dialog-id and set the token.
2) Use token as CSS Selector for popdown-dialog for CSS override to hide unwanted time range accordions from specific time input.

alt text

Following is the Simple XML Dashboard code:

<form script="timepicker_hide_timerange.js">
  <label>Time Picker Hide Options using CSS</label>
  <fieldset submitButton="false">
    <input id="time1" type="time" token="tokTime1">
      <label></label>
      <default>
        <earliest>-24h@h</earliest>
        <latest>now</latest>
      </default>
    </input>
    <input id="time2" type="time" token="tokTime2">
      <label></label>
      <default>
        <earliest>-24h@h</earliest>
        <latest>now</latest>
      </default>
    </input>
  </fieldset>
  <row>
    <panel>
      <title>$tokTimePicker1DialogID$</title>
      <html depends="$alwaysHideCSSPanel$">
        <style>
          div.popdown-dialog[id="$tokTimePicker1DialogID$"] div[id^="relative_view"],div.popdown-dialog[id="$tokTimePicker1DialogID$"] div[id^="advanced_view"]{
            visibility:hidden !important;
          }
          div.popdown-dialog[id="$tokTimePicker1DialogID$"] .shared-timerangepicker-dialog {
            height: 360px !important;
          }
        </style>
      </html>
    </panel>
  </row>
</form>

Following is corresponding JavaScript timepicker_hide_timerange.js, which would need to be placed under your Splunk app's appserver/static folder i.e. $SPLUNK_HOME/etc/apps/<YourAppName>/appserver/static. If the appserver/static folder does not exist that would need to be created. If required Splunk may be required to refresh/restart or bump. Also internet browser history would need to be cleared.

require([
     'jquery',
     'splunkjs/mvc',
     'splunkjs/mvc/simplexml/ready!'
 ], function($,mvc){

    var defaultTokenModel=mvc.Components.get("default");
    var submittedTokenModel=mvc.Components.get("submitted");
    $(document).on("click", "#time1 a.splBackground-primary", function() {
        var strValue=$("#time1 a.splBackground-primary").attr("data-dialog-id");
        if (strValue!==undefined){
            defaultTokenModel.set("tokTimePicker1DialogID",strValue);
            submittedTokenModel.set("tokTimePicker1DialogID",strValue);
        }
    });
});

Please try out and confirm!

____________________________________________
| makeresults | eval message= "Happy Splunking!!!"
