Hello All,
I am trying to figure out how to create drop down menu that dynamically feeds another drop down menu. I am trying to create a dashboard for management to select a person who owns data in Splunk and based on that select have the next drop down menu auto fill with the roles that are assigned to said data owner.
Example:
Bob owns two roles bobs_users and bobs_powers
Tom owns three roles toms_users, toms_powers and toms_admin
Cat owns two roles cats_user and cats_admin
Then based on the two drop down menus have it auto populate the roles in the following simple search:
| rest /services/authentication/users splunk_server=local
| fields title roles capabilities
| rename title as User
| search roles=$role$
I am not having much luck as the owners are not index any where in Splunk. I mean I could create a one time lookup file and use that to try and auto populate the roles drop down, but trying to do everything from drop down menus/xml without having to do extra work if possible.
Any ideas?
thanks
ed
hello there,
hope i understood the question,

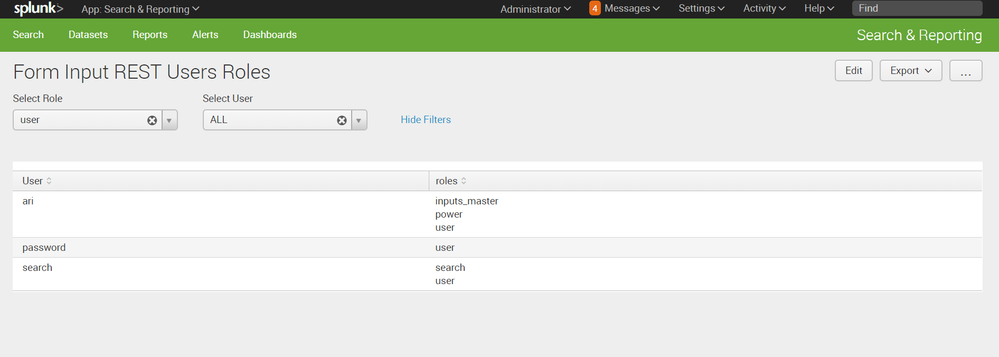

see screenshot here and code below:
kml:
<form>
<label>Form Input REST Users Roles</label>
<fieldset submitButton="false">
<input type="dropdown" token="ROLE" searchWhenChanged="true">
<label>Select Role</label>
<choice value="*">ALL</choice>
<default>*</default>
<initialValue>*</initialValue>
<fieldForLabel>role</fieldForLabel>
<fieldForValue>role</fieldForValue>
<search>
<query>| rest /services/authentication/users splunk_server=local
| stats values(roles) as role
| mvexpand role</query>
<earliest>-24h@h</earliest>
<latest>now</latest>
</search>
</input>
<input type="dropdown" token="USER" searchWhenChanged="true">
<label>Select User</label>
<choice value="*">ALL</choice>
<default>*</default>
<initialValue>*</initialValue>
<fieldForLabel>User</fieldForLabel>
<fieldForValue>User</fieldForValue>
<search>
<query>| rest /services/authentication/users splunk_server=local
| fields title roles
| rename title as User
| search roles=$ROLE$
| table User</query>
<earliest>-24h@h</earliest>
<latest>now</latest>
</search>
</input>
</fieldset>
<row>
<panel>
<table>
<search>
<query>| rest /services/authentication/users splunk_server=local
| fields title roles
| rename title as User
| search roles=$ROLE$ User=$USER$</query>
<earliest>0</earliest>
<latest></latest>
<sampleRatio>1</sampleRatio>
</search>
<option name="count">50</option>
<option name="dataOverlayMode">none</option>
<option name="drilldown">none</option>
<option name="percentagesRow">false</option>
<option name="refresh.display">progressbar</option>
<option name="rowNumbers">false</option>
<option name="totalsRow">false</option>
<option name="wrap">true</option>
</table>
</panel>
</row>
</form>
hope it helps
If you've access to "Splunk 6: dashboard examples" app (https://splunkbase.splunk.com/app/1603/) , you can reference "Form Input Element>>Cascading Form Input".
