Dashboards & Visualizations

Creating colored tiles based on status field

shakSplunk
Path Finder

Hi all,

I was wondering, with the following table would I be able to create a set of tiles that would be color coded based on the status field and also visualise also show the application in large font:

EnvironmentApplicationHostnameStatus
EUATMCH1RUNNING
EUATMCH2DOWN
DEVICH4ERROR
UATICHKRUNNING



I was hoping that "RUNNING" would be green, "DOWN" be red and "ERROR" be orange.



Any assistance would be greatly appreciated!

Labels (3)
0 Karma

kamlesh_vaghela
SplunkTrust
SplunkTrust

@shakSplunk

Can you please try this?



<dashboard script="a.js">
<label>Creating colored tiles based on status field</label>
      <search id="my_search">
          <query>| makeresults
| eval _raw="Environment,Application,Hostname,Status
EUAT,MC,H1,RUNNING
EUAT,MC,H2,DOWN
DEV,IC,H4,ERROR
UAT,IC,HK,RUNNING"
| multikv forceheader=1
| table Environment Application Hostname Status
| eval Color=case(Status="RUNNING","GREEN",Status="DOWN","RED",Status="ERROR","ORANGE")</query>
        <earliest>-24h@h</earliest>
        <latest>now</latest>
      </search>
<row>
  <panel>
    <html>
      <div style="width:50%" id="root"></div>
    </html>
    <html>
      <style>
        #root .square {
              float:left;
              position: relative;
              width: 40%;
              padding-bottom : 30%; /* = width for a 1:1 aspect ratio */
              margin:1.66%;
              overflow:hidden;
          }

          #root .content {
              text-align: center;
              position:absolute;
              color:white;
              height:90%; /* = 100% - 2*5% padding */
              width:90%; /* = 100% - 2*5% padding */
              padding: 5%;
          }

          #root h3, #root h1 {
            color: white;
          }
      </style>
    </html>
  </panel>
</row>
</dashboard>



a.js

require([
    'underscore',
    'jquery',
    'splunkjs/mvc',
    'splunkjs/mvc/simplexml/ready!'
], function(_, $, mvc) {
    var mySearch = mvc.Components.get("my_search");
    mySearch.on('search:done', function(properties) {
        var myResults = mySearch.data("results");
        myResults.on("data", function() {
            resultArray = myResults.data().rows;
            var templateRawText = `
            <div class="square" style="background-color: <%= val5 %>;">
                <div>&nbsp;</div>
                <div>&nbsp;</div>
                <div class="content numbers">
                    <h3><%= val1 %></h3>
                    <h3><%= val2 %></h3>
                    <h3><%= val3 %></h3>
                    <h1><%= val4 %></h1>
                </div>
            </div>`;
            var compiledTemplate = _.template(templateRawText);
            $.each(resultArray, function(index, value) {
                console.log(value);
                var templateResult = compiledTemplate({
                    val1: value[0],
                    val2: value[1],
                    val3: value[2],
                    val4: value[3],
                    val5: value[4],
                });
                $("#root").append(templateResult);
            });


        })
    })
});

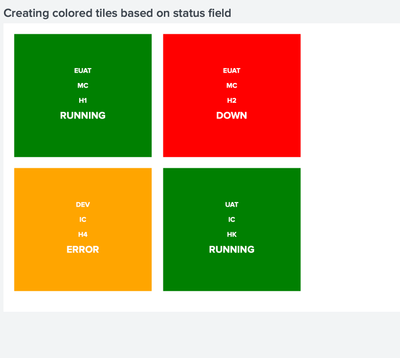

Screenshot 2021-08-17 at 10.46.56 PM.png



KV 

0 Karma

ITWhisperer
SplunkTrust
SplunkTrust
  <row>
    <panel depends="$stayhidden$">
      <html>
        <style>
          #tiles table tbody tr{
            margin-right:10px;
            margin-bottom:10px;
          }
          #tiles table tbody tr td{
            width: 180px;
            text-align: center;
          }
          #tiles table tbody tr td[data-cell-index="1"]{
            font-size: 2em;
          }
          #tiles table tbody td div.multivalue-subcell[data-mv-index="1"]{
            display: none;
          }
        </style>
      </html>
    </panel>
    <panel id="tiles">
      <table>
        <search>
          <query>| makeresults
| eval _raw="Environment,Application,Hostname,Status
EUAT,MC,H1,RUNNING
EUAT,MC,H2,DOWN
DEV,IC,H4,ERROR
UAT,IC,HK,RUNNING"
| multikv forceheader=1
| table Environment Application Hostname Status
| eval Application=mvappend(Application,case(Status="RUNNING","GREEN",Status="DOWN","RED",Status="ERROR","ORANGE"))</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="drilldown">none</option>
        <option name="refresh.display">progressbar</option>
        <format type="color">
          <colorPalette type="expression">case (match(value,"RED"), "#ff0000",match(value,"ORANGE"), "#ff8000",match(value,"GREEN"),"#00ff00",true(),"#ffffff")</colorPalette>
        </format>
      </table>
    </panel>
  </row>




0 Karma

shakSplunk
Path Finder

I can't thank you enough for all the effort you put into that.

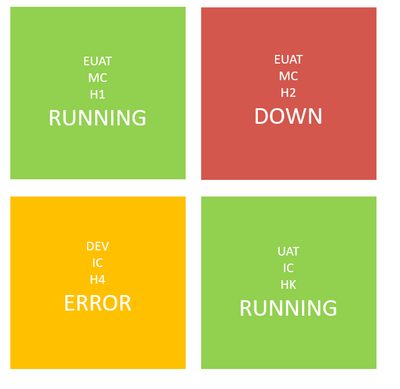

However would it be possible to create something like the picture I've posted.

Status Tiles.PNG
