Database Monitoring

[CommunityUser]

I have installed appdyanmics pro on-premise version of the software. The on-premise version doesn't allow to monitor databases (the saas solution allows).

How do I proceed?

[Arun_Dasetty]

Hi,

Can you provide the screenshot depicting the issue, from onPremise and also the screenshot from Settings -> License screen from controller UI ?

Also can you list the saas URL details and screenshots you are referring from saas ui so that we can check the difference in license details?

Regards,

Arun

[CommunityUser]

Attached are the screenshots and here is saas url - https://optymyze.saas.appdynamics.com/controller/#/location=AD_HOME

[Arun_Dasetty]

Hi,

This feature is currently in Beta as per doc: http://docs.appdynamics.com/display/PRO39/Database+Monitoring+Beta+Release+Notes

and also it could be the case either controller version in onPremise instance does not include the feature referred as stated in doc link http://docs.appdynamics.com/display/PRO39/Setup+Database+Monitoring+on+Windows , Hope that clarifies.

Regards,

Arun

[CommunityUser]

So what would be the solution? There is no way to do database monitoring with the on-premise solution?

[Arun_Dasetty]

Hi,

I had setup 3.9.x controller in local and could see the "Database Monitoring" in local controller UI in home screen, Can you check the controller Verion you installed and also the output of the following query issued at the controller db instance:

shell> cd <Controller_dir>/bin

shell> controller.bat/sh login-db

mysql> select * from application \G;

We see application name "Database monitoring" does not exist  in 3.7.x controller version application table and this could be exepected as this is introduced in 3.9.x controller version. Please confirm the controller version and we suspect the version is less than 3.9.x versin and that could be the reason here for missing DB section.

Regards,

Arun

[CommunityUser]

I see the appdynamics pro version as 3.9.3.0, build 20 and

Below is the output of the query on mysql db

*************************** 1. row ***************************
account_id: 2
id: 1
version: 1
name: Database Monitoring
modified_on: 1412064171103
created_on: 1412064171103
created_by: 1
modified_by: 1
description: NULL
template: 0
running: 0
running_since: NULL
deploy_workflow_id: NULL
undeploy_workflow_id: NULL
application_configuration_id: 1
visualization: NULL
environment_properties: NULL
purge_error_occurred: 0
purge_error_message: NULL
eum_fake_component_id: 1
eum_fake_node_id: 1
*************************** 2. row ***************************
account_id: 2
id: 2
version: 1
name: analytics-2
modified_on: 1412064175595
created_on: 1412064175595
created_by: 1
modified_by: 1
description: NULL
template: 0
running: 0
running_since: NULL
deploy_workflow_id: NULL
undeploy_workflow_id: NULL
application_configuration_id: 2
visualization: NULL
environment_properties: NULL
purge_error_occurred: 0
purge_error_message: NULL
eum_fake_component_id: 2
eum_fake_node_id: 2
*************************** 3. row ***************************
account_id: 1
id: 3
version: 1
name: AppDynamics Controller
modified_on: 1412064179291
created_on: 1412064179291
created_by: 1
modified_by: 1
description: Controller
template: 0
running: 0
running_since: NULL
deploy_workflow_id: NULL
undeploy_workflow_id: NULL
application_configuration_id: 3
visualization: NULL
environment_properties: NULL
purge_error_occurred: 0
purge_error_message: NULL
eum_fake_component_id: 4
eum_fake_node_id: 4
*************************** 4. row ***************************
account_id: 2
id: 4
version: 1
name: Optymyze Test OVM
modified_on: 1412150360413
created_on: 1412150360413
created_by: 5
modified_by: 5
description: NULL
template: 0
running: 0
running_since: NULL
deploy_workflow_id: NULL
undeploy_workflow_id: NULL
application_configuration_id: 4
visualization: NULL
environment_properties: NULL
purge_error_occurred: 0
purge_error_message: NULL
eum_fake_component_id: 6
eum_fake_node_id: 7
4 rows in set (0.00 sec)

ERROR:
No query specified

It is strange that even after having the installed version as 3.9.3.0 I do not see Database Monitoring. What are the next steps?

[Arun_Dasetty]

Hi,

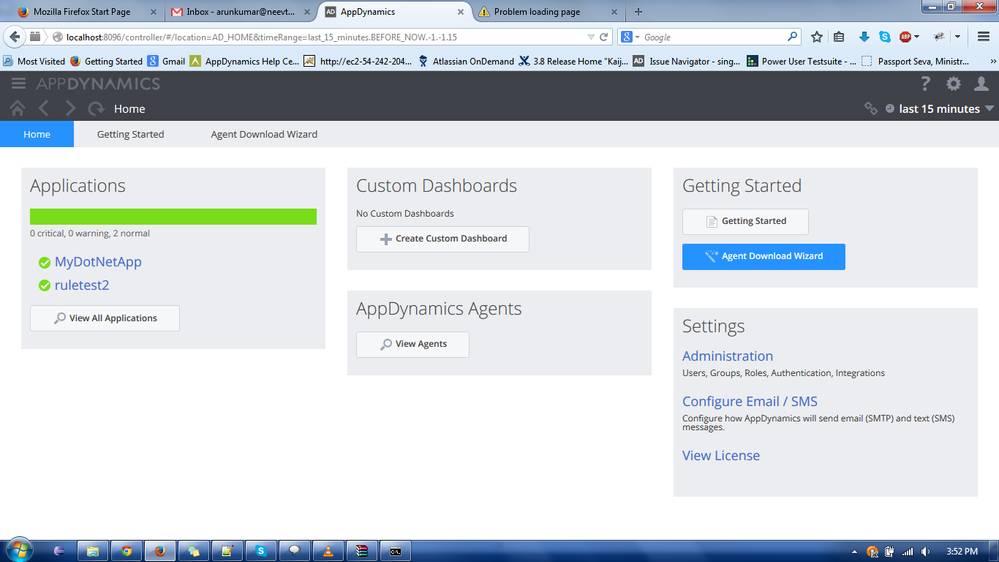

I just replciate the issue and i could see the application name "Database Monitoring" in application table but found no "Database Monitoring" section  in 3.9.3 UI , this could due to feature hidden in latest version as this is in Beta.

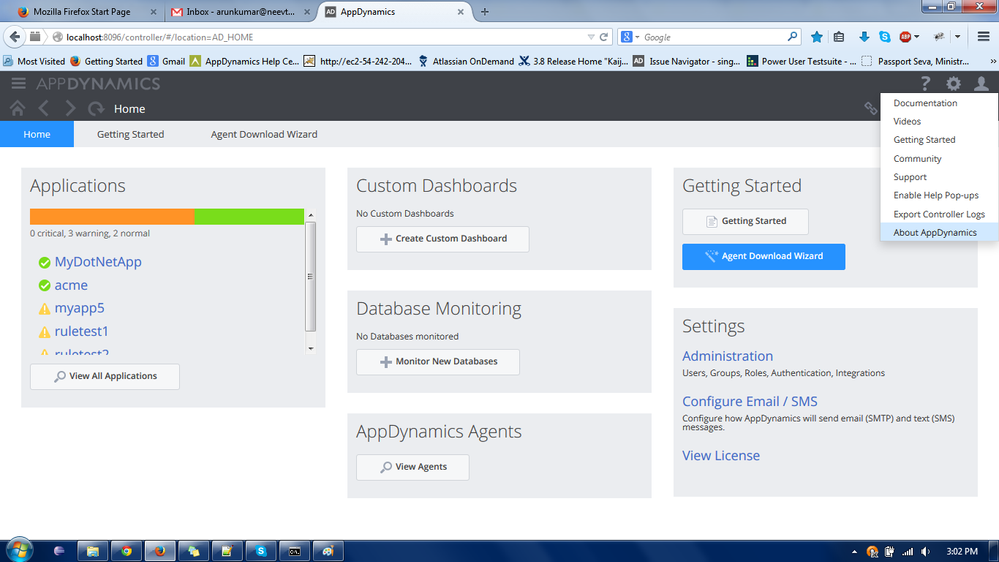

results from local:

We request you to try and 3.9.1 version and see if that helps  to show the section in local controller.

Regards,

Arun

[CommunityUser]

How do I download the controller installer for 3.9.1 ?

Btw, when I login to saas url - https://optymyze.saas.appdynamics.com and click on About Optymyze I see the version as 3.9.3 build 20. Database monitoring shows up there.

[Arun_Dasetty]

Hi,

We got confirmed from our experts team as part of  our internal discussion that this is due to no DB Monitoring agents as part license allocated to your controller where Database Monitoring option is missing. We request you to get intouch with your sales representative/account manager to get appdfordb license for to upgrade your license to have DB Monitoring units to that you will see this option. Hope that information helps.

We initially requested the License screen details to confirm and see if this is the case but the requested details have not been provided hence we thought to replicate in all. We request you to upgrade license as suggested above and see how it goes.

Regards,

Arun
