Why is the REST API not breaking XML into multiple events or extracting fields?

bwindham
Path Finder

I know this topic has been addressed many times on here but I cannot get my xml events to break properly. I am retrieving Cisco Prime devices via REST API xml call. Designating the TA_cisco_ios addon as the App in REST, I just cannot get it broken into individual events. Splunk just shows 1 event as seen attached xml-file.

My props.conf under TA_cisco_ios looks like:
[cisco:ios]
 BREAK_ONLY_BEFORE=
 TRUNCATE=500000

My REST setup looks like this:

REST API Input: Cisco Prime Device Status
Endpoint URL:  https://172.x.x.85/webacs/api/v3/data/Devices.xml?.full=true
Authentication Type: basic
Sourcetype:  cisco:ios
App:  TA-cisco_ios
Status:  Enabled

Thanks in advance! This is driving me crazy!

0 Karma
1 Solution

Damien_Dallimor
Ultra Champion

I use custom response handlers in the REST setup for pre processing , and in this case , event splitting.

Add something like this to rest_ta/bin/responsehandlers.py (example only , tweak as need be) :

class XMLResponseHandler:

    def __init__(self,**args):
        pass

    def __call__(self, response_object,raw_response_output,response_type,req_args,endpoint):

        from xml.etree import ElementTree
        e = ElementTree.fromstring(raw_response_output)
        for entity in e.findall('entity'):
            print_xml_stream(ElementTree.tostring(entity).decode())

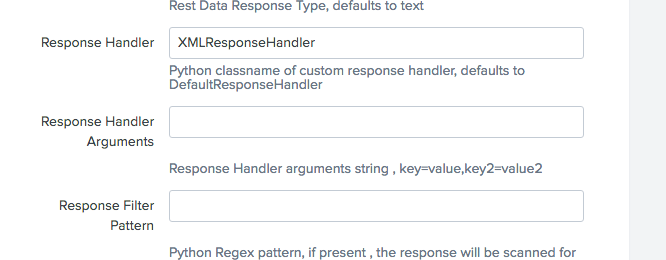

And then declare it to be applied to your input :

alt text

View solution in original post

0 Karma

Damien_Dallimor
Ultra Champion

I use custom response handlers in the REST setup for pre processing , and in this case , event splitting.

Add something like this to rest_ta/bin/responsehandlers.py (example only , tweak as need be) :

class XMLResponseHandler:

    def __init__(self,**args):
        pass

    def __call__(self, response_object,raw_response_output,response_type,req_args,endpoint):

        from xml.etree import ElementTree
        e = ElementTree.fromstring(raw_response_output)
        for entity in e.findall('entity'):
            print_xml_stream(ElementTree.tostring(entity).decode())

And then declare it to be applied to your input :

alt text

0 Karma

bwindham
Path Finder

Thanks Damien....using your sample and some luck, I created a PrimeHandler and at least have broken out the individual events now but the fields were not being extracted. I put "KV_MODE = xml" in the sourcetype on the SH and at least I see the long field names now. May have to look at field extractions for that. Thanks for the help!

0 Karma

bwindham
Path Finder

the props.conf is not posting properly but below attributes are using entity as break
BREAK_ONLY_BEFORE
MUST_BREAK_AFTER

0 Karma
