Transaction not showing me Unique Users

[Crabbok]

I'm trying to track the duration of user sessions to a server.   I want to know WHICH users are connecting, and for how long each session is.   The problem is, with multiple users, I'm having nested transactions happen , where USER001 joins, but USER004 Leaves, and that creates an event.   I want it to ONLY look at only scenarios in which the same user that Joins, Leaves.   I can't seem to get it to do this.

Eventcode=44  is the event code for these particular events I want to track
UserXXID is a Field Extraction I've built to show each userID, as it is not a standard username that Splunk automatically understood.
The two primary types of logs I'm looking for is when they've "joined" or "left" the event.


Here is the command I'm using -
host="XXComputer04" EventCode=44 | transaction startswith="joined" endswith="left"
|eval Hours=duration/3600
|timechart count by UserXXID

Sample of the log entry I'm trying to parse.

LogName=Application

EventCode=120

EventType=44

ComputerName=XXcomputer004

SourceName=EventXService

Type=Information RecordNumber=1234427

Keywords=Classic

TaskCategory=State Transition

OpCode=Info

Message= [0x0x]::ProcessLeave()  (xxUSER002xx) left event33001

---------

I have also tried simply - |transaction USERXXID to keep unique userID's together - and while that works, it then somehow ignores ALL "left event" messages and only shows "joined" for any given user.

Any help would be appreciated!

[Crabbok]

Thank you for the quick response!   This looks like a great solution - however the reason I was using transaction is because we have new users all the time and I can't pre-add every possible username.    I know people say that transaction is awful but for the life of me I've never had a single problem using it.

[livehybrid]

Hi @Crabbok

You shouldnt need to specify a hard-coded list of users, that was just me creating some test data. Assuming the Message field is available to run the regex you should just be able to do:

| rex field=Message "has (?<action>[a-zA-Z]+) the event session"
| eval {action}_time=_time
| sort UserXXID
| streamstats count as userEventNum min(joined_time) as session_joined_time, max(left_time) as session_left_time by UserXXID reset_after="action=\"left\""
| eval action_time=strptime(_time, "%Y-%m-%d %H:%M:%S")
| stats range(action_time) as sessionDurationSeconds, values(action) as actions, max(_time) as session_left_time by UserXXID session_joined_time

 If UserXXID is not a field then you can use rex to get this too.

If you want to stick to using transactions, try adding *keepevicted=true* to your transaction command as I think this might keep the non-completed transaction events.

See https://docs.splunk.com/Documentation/SplunkCloud/latest/SearchReference/Transaction#:~:text=Syntax%...

🌟 Did this answer help you? If so, please consider:

• Adding karma to show it was useful
• Marking it as the solution if it resolved your issue
• Commenting if you need any clarification

Your feedback encourages the volunteers in this community to continue contributing

[livehybrid]

Hi @Crabbok

Check out the following - I think this should solve your usecase here, note that I have avoided transaction because its a pretty terrible command to use - I'd only recommend it if you absolutely have to! Instead we can leverage stats.

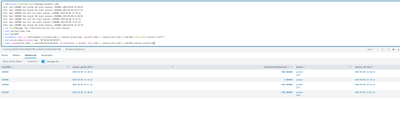

Ive applied some further logic here to split events into individual sessions, so that if a user joins and leaves multiple times in the search window then it will show multiple sessions - see the example below:

The full SPL for this for you to try is:

| makeresults format=csv data="Message,UserXXID,_time
Info: User USER001 has joined the event session.,USER001,2025-05-06 22:20:03
Info: User USER002 has joined the event session.,USER002,2025-05-06 22:21:43
Info: User USER001 has left the event session.,USER001,2025-05-06 22:36:43
Info: User USER003 has joined the event session.,USER003,2025-05-06 22:40:03
Info: User USER002 has left the event session.,USER002,2025-05-06 22:53:23
Info: User USER003 has left the event session.,USER003,2025-05-06 23:01:43
Info: User USER001 has joined the event session.,USER001,2025-05-06 23:18:23"
| rex field=Message "has (?<action>[a-zA-Z]+) the event session"
| eval {action}_time=_time
| sort UserXXID
| streamstats count as userEventNum min(joined_time) as session_joined_time, max(left_time) as session_left_time by UserXXID reset_after="action=\"left\""
| eval action_time=strptime(_time, "%Y-%m-%d %H:%M:%S")
| stats range(action_time) as sessionDurationSeconds, values(action) as actions, max(_time) as session_left_time by UserXXID session_joined_time
