Can we display additional fields in Gantt (bar) ch...

AKG1_old1 · ‎08-15-2017

Hello,

In Gantt chart, when we move the mouse over an event it displays a pop-up box with certain details. By default, its displays only 3 columns (_time , ScriptName, ScriptName2). Is it possible to display other columns (Duration, start-time, end time ) on pop-up box ?

Search Query:

index=_* OR index=* sourcetype=tool_lifecycle | eval ScriptName2=ScriptName | table _time ScriptName ScriptName2 Duration StartTime EndTime

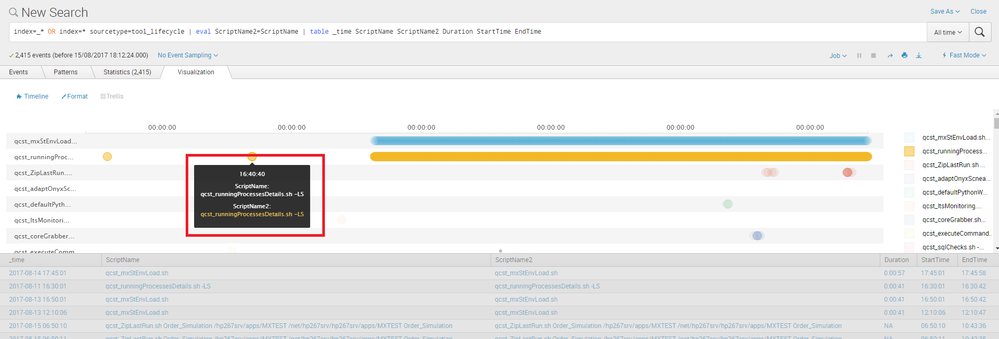

Attached Screenshot.

cmerriman · ‎08-15-2017

It looks like you're using the Timeline app, the documentation is found here for simpleXML options:
https://docs.splunk.com/Documentation/Timeline/1.1.0/TimelineViz/TimelineXML
it doesn't look like you can add other fields.

There is a Gantt Chart app found here: https://splunkbase.splunk.com/app/1741/ that can be customized.
the simpleXML would look something like (the search is a post-process called demo_search1):

<row>
    <panel>
      <title>Tool Lifecycle</title>
      <html encoded="1"><h2>Gantt Chart</h2>

            <div id="demo-view" class="splunk-view" data-require="app/gantt/components/gantt/gantt" data-options="{
            &amp;quot;managerid&amp;quot;: &amp;quot;demo_search1&amp;quot;,
            &amp;quot;startField&amp;quot;: &amp;quot;_time&amp;quot;,
            &amp;quot;durationField&amp;quot;: &amp;quot;duration&amp;quot;,
            &amp;quot;categoryLabel&amp;quot;: &amp;quot;ScriptName&amp;quot;,
            &amp;quot;categoryField&amp;quot;: &amp;quot;ScriptName&amp;quot;,
            &amp;quot;seriesLabel&amp;quot;: &amp;quot;SecondScriptName&amp;quot;,
            &amp;quot;seriesField&amp;quot;: &amp;quot;ScriptName2&amp;quot;,
            &amp;quot;extrasField&amp;quot;: &amp;quot;anyExtraField&amp;quot;,
            &amp;quot;compact&amp;quot;: &amp;quot;true&amp;quot;                               }">
            </div></html>
    </panel>
  </row>
