DNS/DSC logs into Splunk

[Mridu27]

I'm trying to configure Windows DNS/DSC server logs into Splunk.

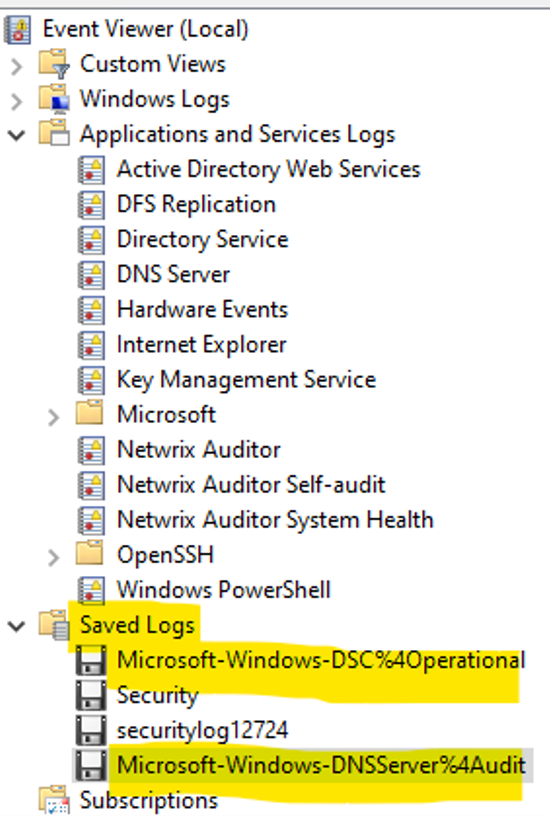

I'm done with Audit logs but the Operational logs are creating Error in splunk which i think is may be because of %4 in its name. (please refer image).

Is there any other way to get these logs into splunk as i tried it with * (wildcard) as well.

message from ""C:\Program Files\SplunkUniversalForwarder\bin\splunk-winevtlog.exe"" splunk-winevtlog - WinEventMon::configure: Failed to find Event Log with channel name='Microsoft-Windows-DSC_Operational'

message from ""C:\Program Files\SplunkUniversalForwarder\bin\splunk-winevtlog.exe"" splunk-winevtlog - WinEventMon::configure: Failed to find Event Log with channel name='Microsoft-Windows-DSC-Operational'

message from ""C:\Program Files\SplunkUniversalForwarder\bin\splunk-winevtlog.exe"" splunk-winevtlog - WinEventMon::configure: Failed to find Event Log with channel name='Microsoft-Windows-DSC*'

message from ""C:\Program Files\SplunkUniversalForwarder\bin\splunk-winevtlog.exe"" splunk-winevtlog - WinEventMon::configure: Failed to find Event Log with channel name='Microsoft-Windows-DSC%4Operational'

message from ""C:\Program Files\SplunkUniversalForwarder\bin\splunk-winevtlog.exe"" splunk-winevtlog - WinEventMon::configure: Failed to find Event Log with channel name='Microsoft-Windows-DSC Operational'

Tried almost all combinations.

[livehybrid]

Hi @Mridu27

Use the exact channel name as listed by PowerShell on the server. The names shown in the Event Viewer GUI might not be the programmatic names required by the Splunk forwarder.

To find the correct channel name for DSC Operational logs, run this PowerShell command on the Windows server:

Get-WinEvent -ListLog *DSC* | Select-Object LogName

Similarly, for DNS Operational logs:

Get-WinEvent -ListLog *DNS* | Select-Object LogName

Use the LogName value returned by PowerShell in your inputs.conf.

# Example inputs.conf on the Universal Forwarder

# For DSC Operational logs (use the exact name found via PowerShell)
[WinEventLog://Microsoft-Windows-DSC/Operational]
disabled = 0
index = winevents
sourcetype = WinEventLog:Microsoft-Windows-DSC/Operational

# For DNS Server Operational logs (use the exact name found via PowerShell)
[WinEventLog://Microsoft-Windows-DNS-Server/Operational]
disabled = 0
index = winevents
sourcetype = WinEventLog:Microsoft-Windows-DNS-Server/Operational

The Splunk Universal Forwarder requires the precise channel name registered with the Windows Event Log service. Characters like %4 seen in some GUI tools are often display artifacts and not part of the actual channel name. Separators are typically forward slashes (/), not underscores (_), hyphens (-), or spaces. Wildcards (*) are not supported directly within the channel name specification in the stanza header.

• Ensure the Splunk Universal Forwarder service account has permissions to read the specified event log channels.
• Restart the Splunk Universal Forwarder service after modifying inputs.conf.
• Monitor Windows event log data

🌟 Did this answer help you? If so, please consider:

• Adding karma to show it was useful
• Marking it as the solution if it resolved your issue
• Commenting if you need any clarification

Your feedback encourages the volunteers in this community to continue contributing

[kiran_panchavat]

@Mridu27

Ensure that the channel name you're using matches exactly what is listed in the Event Viewer. Sometimes, even small discrepancies can cause errors.

https://community.splunk.com/t5/Getting-Data-In/Failed-to-find-Event-Log/m-p/363954
