Splunk Enterprise Security

Authentication CIM tags and mapping

gwes77
Explorer

Hello all,

I need help manually mapping a log source that has no supported add on. I entered in two event types with tags to ID which log is a failed login and which is a successful login. They are listed below.

Search: index=index sourcetype=logsource LoginSuccessful=0 Tags: authentication, failure
Search: index=index sourcetype=logsource LoginSuccessful=1 Tags: authentication, success

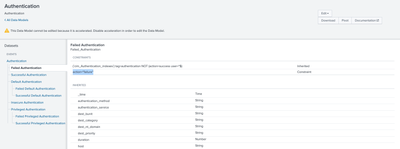

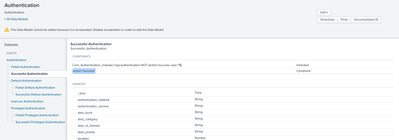

But in the Auth DM fields, it is showing every event as Authentication.is_Failed_Authentication and every event as Authentication.is_Successful_Authentication. Can someone send me the link to the right mapping doc in Splunk or describe what I am missing here. Do I need to enter a field alias as well?

Thank you

0 Karma
