Single card value background color change

[PATAN]

In Splunk studio, I have a  Status field with the values DROPPED and NOT DROPPED. If I get Dropped the background color of the card should change into Green... If the field value is NOT DROPPED. It should be Red. How can I achieve it in splunk studio.

Thanks

[renjith_nair]

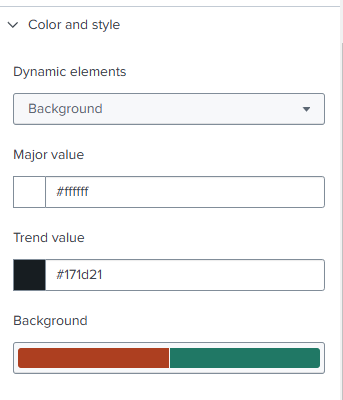

You can use the dynamic element color

https://docs.splunk.com/Documentation/Splunk/9.2.1/DashStudio/ModifyDOS

select background and set the color based on the status

Here is a run anywhere example

Just change the status in the dropdown and you can see the color changes

{
    "visualizations": {
        "viz_NJsTjQl4": {
            "type": "splunk.singlevalue",
            "options": {
                "backgroundColor": "> majorValue | matchValue(backgroundColorEditorConfig)",
                "majorColor": "#ffffff"
            },
            "dataSources": {
                "primary": "ds_275I8YNY"
            },
            "context": {
                "backgroundColorEditorConfig": [
                    {
                        "match": "Stopped",
                        "value": "#ad3f20"
                    },
                    {
                        "match": "Running",
                        "value": "#207865"
                    }
                ]
            }
        }
    },
    "dataSources": {
        "ds_275I8YNY": {
            "type": "ds.search",
            "options": {
                "query": "| makeresults\n| eval value=\"$status$\""
            },
            "name": "Search_1"
        }
    },
    "defaults": {
        "dataSources": {
            "ds.search": {
                "options": {
                    "queryParameters": {
                        "latest": "$global_time.latest$",
                        "earliest": "$global_time.earliest$"
                    }
                }
            }
        }
    },
    "inputs": {
        "input_global_trp": {
            "type": "input.timerange",
            "options": {
                "token": "global_time",
                "defaultValue": "-24h@h,now"
            },
            "title": "Global Time Range"
        },
        "input_BHJAbWl2": {
            "options": {
                "items": [
                    {
                        "label": "Running",
                        "value": "Running"
                    },
                    {
                        "label": "Stopped",
                        "value": "Stopped"
                    }
                ],
                "token": "status",
                "selectFirstSearchResult": true
            },
            "title": "Status",
            "type": "input.dropdown"
        }
    },
    "layout": {
        "type": "grid",
        "options": {
            "width": 1440,
            "height": 960
        },
        "structure": [
            {
                "item": "viz_NJsTjQl4",
                "type": "block",
                "position": {
                    "x": 0,
                    "y": 0,
                    "w": 1440,
                    "h": 400
                }
            }
        ],
        "globalInputs": [
            "input_global_trp",
            "input_BHJAbWl2"
        ]
    },
    "description": "",
    "title": "single_panel_studio"
}
