I am trying to set up an index page in splunk studio dashboard, which redirects to other splunk dash boards based on dropdown. dropdown has three values, based on value dashboard will be updated with that category dashboards list, where on click it redirects to that category splunk dashboard.
Say for example, in below image 1, type is B-004. Both the boxes are updated with same links given in static input. I was expecting BOX1 being updated with https://B-004/logs and BOX 2 being updated with https://B-004/results as in image 2. please find the code below.
And what would be SPL if want to give a string name(any) instead number for URL display.
Appreciate your help. thanks in advance.

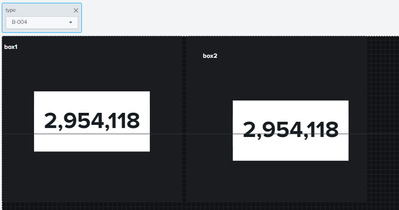

image 1:
image 2:
code for image 1:
{
"visualizations": {
"viz_Hpfgo6KN": {
"type": "viz.rectangle",
"options": {
"stroke": "transparent",
"fill": "#1A1C20",
"rx": 4
}
},
"viz_lto5aays": {
"type": "viz.text",
"options": {
"content": "box1",
"fontSize": 14,
"fontWeight": "bold",
"textColor": "#FBFBFB"
}
},
"viz_AJxRjGHA": {
"type": "abslayout.line",
"options": {
"strokeColor": "#33343B"
}
},
"viz_ZI34ttXn": {
"type": "viz.singlevalue",
"options": {
"backgroundColor": "#ffffff"
},
"dataSources": {
"primary": "ds_pQ72LSdV"
},
"eventHandlers": [
{
"type": "drilldown.customUrl",
"options": {
"url": "$myWebsiteToken$",
"newTab": true
}
}
]
},
"viz_Nd21m86c": {
"type": "viz.rectangle",
"options": {
"stroke": "transparent",
"fill": "#1A1C20",
"rx": 4
}
},
"viz_icJmS4Ub": {
"type": "viz.text",
"options": {
"content": "box2",
"fontSize": 14,
"fontWeight": "bold",
"textColor": "#FBFBFB"
}
},
"viz_mSmorwn2": {
"type": "viz.singlevalue",
"options": {
"backgroundColor": "#ffffff"
},
"dataSources": {
"primary": "ds_gy5Vi8dr_ds_pQ72LSdV"
},
"eventHandlers": [
{
"type": "drilldown.customUrl",
"options": {
"url": "$myWebsiteToken$",
"newTab": true
}
}
]
}
},
"dataSources": {
"ds_pQ72LSdV": {
"type": "ds.search",
"options": {
"query": "index= _internal\n| stats count",
"queryParameters": {
"earliest": "-4h@m",
"latest": "now"
}
},
"name": "Search_1"
},
"ds_gy5Vi8dr_ds_pQ72LSdV": {
"type": "ds.search",
"options": {
"query": "index= _internal\n| stats count",
"queryParameters": {
"earliest": "-4h@m",
"latest": "now"
}
},
"name": "Copy of Search_1"
}
},
"inputs": {
"staticInput": {
"type": "input.dropdown",
"options": {
"items": [
{
"label": "A-002",
"value": "https://A-002/"
},
{
"label": "B-004",
"value": "https://B-004/"
},
{
"label": "C-005",
"value": "https://C-005/"
}
],
"token": "myWebsiteToken"
},
"title": "type"
}
},
"layout": {
"type": "absolute",
"options": {
"height": 1100,
"showTitleAndDescription": false,
"backgroundColor": "#111215",
"width": 1500,
"display": "auto-scale"
},
"globalInputs": [
"staticInput"
],
"structure": [
{
"item": "viz_Hpfgo6KN",
"type": "block",
"position": {
"x": 0,
"y": 0,
"w": 390,
"h": 360
}
},
{
"item": "viz_lto5aays",
"type": "block",
"position": {
"x": 0,
"y": 0,
"w": 300,
"h": 50
}
},
{
"item": "viz_AJxRjGHA",
"type": "line",
"position": {
"from": {
"x": 1496,
"y": 212
},
"to": {
"x": -3,
"y": 212
}
}
},
{
"item": "viz_ZI34ttXn",
"type": "block",
"position": {
"x": 70,
"y": 120,
"w": 250,
"h": 130
}
},
{
"item": "viz_Nd21m86c",
"type": "block",
"position": {
"x": 400,
"y": 0,
"w": 390,
"h": 360
}
},
{
"item": "viz_icJmS4Ub",
"type": "block",
"position": {
"x": 430,
"y": 20,
"w": 300,
"h": 50
}
},
{
"item": "viz_mSmorwn2",
"type": "block",
"position": {
"x": 500,
"y": 140,
"w": 250,
"h": 130
}
}
]
},
"description": "Viz Description Here",
"title": "testing_index"
}
