Zoom panel with Pan and Zoom

[PavelNed]

Hello guys,

I implemented a Pan and Zoom functionality this way: I have a line graph that shows some data and a table below that shows raw events within selected time range. It works as expected, but I would like to modify it a bit. It should work just like this:

pan and zoom problem - Splunk Community

Unfortunately nobody answered, maybe because of rude formulation. So, to make it clearer, instead of zooming this way:

I am looking for a way to zoom like in normal graph (change x axis, not show two markers) so I can see more detailed data.

Any ideas how to achieve that?

Thank you!

[chiliconbeano]

This is a related question..not an answer.  Using the Pan and Zoom ( <selection></selection> ) feature, how does one get the 'earliest' / 'lastest' time range values represented by the Pan/Zoom window?  Currently, I can only get the single 'click.value'  epoc time where the mouse is clicked.  Is there special value

Also, it appears the 'click' names/values are not available in the <selection></selection> group, but they are available in the <drilldown></drilldown> group.

To work around this 'problem', I am doing the following which I do not like. The <selection>..</selection> group is just to enable the pan/zoom visualization.  I've tried setting the 'selection.latest/earliest' values to both $start$/$end$   AND $selection_earliest$/$selection_latest$...no worky!

<selection>
<set token="selection_made">1</set>
</selection>

<drilldown>
  <eval token="selection.latest">'click.value' + (86400 * 3)</eval>
  <eval token="selection.earliest">$selection.latest$ - (86400 * 7)</eval>
  <link...</link>

</drilldown/

[PavelNed]

Hello,

I am not sure if I understand your problem correctly, but have you tried this example?

Solved: Is there a way to zoom in inside a panel and then ... - Splunk Community

It seems strange, because you said you selection.latest x $end$ combination didn't work for you. I used this example and it works, except for resizing of original chart... But that is not your problem, right?

[chiliconbeano]

PavelNed,

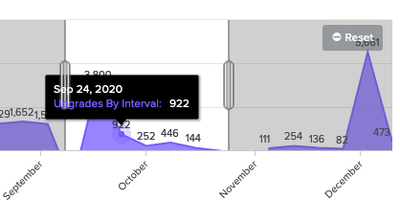

Thanks for taking the time to respond.  Here is a screen shot of my pan/zoom:

Here is my XML (the actual query is URL encoded):

<option name="charting.drilldown">all</option>
<selection>
<set token="selection.earliest">$start$</set>
<set token="selection.latest">$end$</set>
</selection>
<drilldown><link target="_blank">search?q=

| inputlookup my_table.csv
| eval update_time = strptime(day, "%Y-%m-%d")
| where update_time >= $selection.earliest$ AND update_time <= $selection.latest$

</query></link></drilldown></chart></panel>

HOWEVER,  when I click on the 'Sept. 24, 2020' data point, the drilldown time value range ends up being the entire range of the chart (Jan. 2020 - Dec. 2020), not the range represented by the zoom frame (Sept. 2020 - Oct. 2020) :

| inputlookup my_table.csv
| eval update_time = strptime(day, "%Y-%m-%d")
| where update_time >= 1579132800 AND update_time <= 1607558400

Is there some other <option> setting I need?  According to the documentation, this should be straight forward, yet, I 'must' be doing something wrong.

Again, thanks for helping!
