Resize Bar Chart Lable Column

[nikkkc]

Hi,
Is it possible to resize the first Column of a BarChart? I am talking about the label of the bar. Because in some cases the labels are cropped... like the picture appendix, i would like to read the hole value text. Considered the overall width it should be 50% label and 50% bar.

thanks in advance

[niketn]

Refer to Splunk Chart Configuration reference on Splunk docs for various chart config options.

In your case you can set charting.legend.labelStyle.overflowMode to ellipsisNone. By default it is ellipsisMiddle.

Since your chart appearance depends on how axis data is plotted you might want to truncate legends which are too long. So see if ellipsisLeft or ellipsisRight could be used to show different legends.

<option name="charting.legend.labelStyle.overflowMode">ellipsisNone</option>

[nikkkc]

i tried all options but still cropped...

[nikkkc]

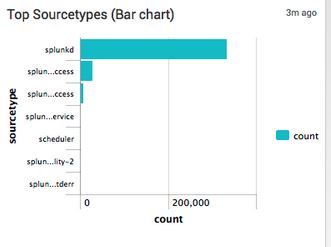

i guess the legend option is not that what i mean, i am talking about the sourcetype values! (see Picture) not about "sourcetype" or "count" as descirption
