How to set the size of the Single Value Panel title uniform throughout the dashboard?

New Member

I have a dashboard having a number of Single value Panels but having a different title with different size(I mean the number of letters in the title).Due to which alignment of Panel in the dashboard doesn't look good. I want to make it uniform.
Source Code:

<panel>
  <single>
    <title>15-TBB Ordersssssssssssssssssssfgfhgfhfghfghfghfghfghfghfghfghfghfghfghfghfghfsssssssssssssssssssssssssssssss</title>
    <search>
      <query>index=xyz "Prospect Management data capture eligibility for request uri: '/build-your-bundle/ajax/captureprospectdetailscompleteorder', method: 'GET', eligibility: 'true'" | dedup _time,host,source,_raw | stats count</query>
      <earliest>-1d@d</earliest>
      <latest>@d</latest>
    </search>
    <option name="colorMode">block</option>
    <option name="drilldown">none</option>
    <option name="linkView">search</option>
    <option name="useColors">1</option>
  </single>
</panel>
0 Karma
1 Solution

SplunkTrust
SplunkTrust

@kumargaurav, following are the two option you can try,

1) Add to Single value Caption using Format Visualization option which adds Simple XML Configuration like the following:

<option name="underLabel">Abcdefghijklmnopqrstuvwxyz1234567890 Abcdefghijklmnopqrstuvwxyz1234567890</option>

This will move all the Title below single value. This can accommodate for longer text in single line as compared to title but will truncate before and/or after since it is always single line.
2) Create a dummy row with same count of panels as Single Value Panels and use only for <title>

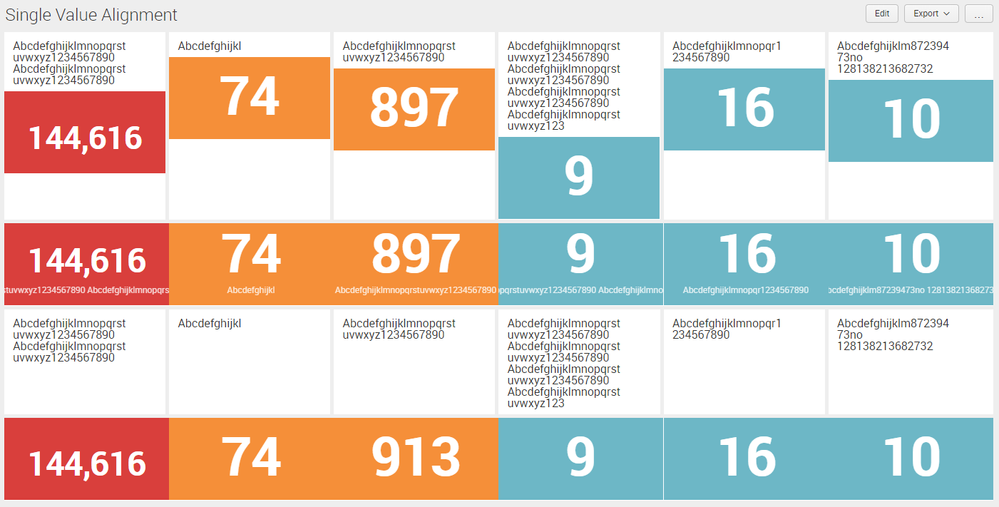

Please refer to screenshot below. First row is one with issue. Second is the option with Caption and Third row is solution with separate dummy row with empty panels having <title>

alt text

Following is the Simple XML code:

<dashboard>
  <label>Single Value Alignment</label>
  <row>
    <panel>
      <title>Abcdefghijklmnopqrstuvwxyz1234567890 Abcdefghijklmnopqrstuvwxyz1234567890</title>
      <single>
        <search>
          <query>index=_internal sourcetype=splunkd log_level=INFO
| stats count</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="colorMode">block</option>
        <option name="drilldown">none</option>
        <option name="refresh.display">progressbar</option>
        <option name="useColors">1</option>
      </single>
    </panel>
    <panel>
      <title>Abcdefghijkl</title>
      <single>
        <search>
          <query>index=_internal sourcetype=splunkd log_level=ERROR
| stats count</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="colorMode">block</option>
        <option name="drilldown">none</option>
        <option name="refresh.display">progressbar</option>
        <option name="useColors">1</option>
      </single>
    </panel>
    <panel>
      <title>Abcdefghijklmnopqrstuvwxyz1234567890</title>
      <single>
        <search>
          <query>index=_internal sourcetype=splunkd log_level=WARN
| stats count</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="colorMode">block</option>
        <option name="drilldown">none</option>
        <option name="rangeValues">[0,200,500,1000]</option>
        <option name="refresh.display">progressbar</option>
        <option name="useColors">1</option>
      </single>
    </panel>
    <panel>
      <title>Abcdefghijklmnopqrstuvwxyz1234567890 Abcdefghijklmnopqrstuvwxyz1234567890 Abcdefghijklmnopqrstuvwxyz1234567890 Abcdefghijklmnopqrstuvwxyz123</title>
      <single>
        <search>
          <query>index=_internal sourcetype=splunkd log_level!=INFO
| stats count by component
| table count</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="colorMode">block</option>
        <option name="drilldown">none</option>
        <option name="refresh.display">progressbar</option>
        <option name="useColors">1</option>
      </single>
    </panel>
    <panel>
      <title>Abcdefghijklmnopqr1234567890</title>
      <single>
        <search>
          <query>index=_internal sourcetype=splunkd log_level!=INFO
| stats count by date_mday</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="colorMode">block</option>
        <option name="drilldown">none</option>
        <option name="refresh.display">progressbar</option>
        <option name="useColors">1</option>
      </single>
    </panel>
    <panel>
      <title>Abcdefghijklm87239473no 128138213682732</title>
      <single>
        <search>
          <query>index=_internal sourcetype=splunkd log_level!=INFO
| stats count by date_hour</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="colorMode">block</option>
        <option name="drilldown">none</option>
        <option name="refresh.display">progressbar</option>
        <option name="useColors">1</option>
      </single>
    </panel>
  </row>
  <row>
    <panel>
      <single>
        <search>
          <query>index=_internal sourcetype=splunkd log_level=INFO
| stats count</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="colorMode">block</option>
        <option name="drilldown">none</option>
        <option name="refresh.display">progressbar</option>
        <option name="underLabel">Abcdefghijklmnopqrstuvwxyz1234567890 Abcdefghijklmnopqrstuvwxyz1234567890</option>
        <option name="useColors">1</option>
      </single>
      <single>
        <search>
          <query>index=_internal sourcetype=splunkd log_level=ERROR
| stats count</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="colorMode">block</option>
        <option name="drilldown">none</option>
        <option name="refresh.display">progressbar</option>
        <option name="underLabel">Abcdefghijkl</option>
        <option name="useColors">1</option>
      </single>
      <single>
        <search>
          <query>index=_internal sourcetype=splunkd log_level=WARN
| stats count</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="colorMode">block</option>
        <option name="drilldown">none</option>
        <option name="rangeValues">[0,200,500,1000]</option>
        <option name="refresh.display">progressbar</option>
        <option name="underLabel">Abcdefghijklmnopqrstuvwxyz1234567890</option>
        <option name="useColors">1</option>
      </single>
      <single>
        <search>
          <query>index=_internal sourcetype=splunkd log_level!=INFO
| stats count by component
| table count</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="colorMode">block</option>
        <option name="drilldown">none</option>
        <option name="refresh.display">progressbar</option>
        <option name="underLabel">Abcdefghijklmnopqrstuvwxyz1234567890 Abcdefghijklmnopqrstuvwxyz1234567890 Abcdefghijklmnopqrstuvwxyz1234567890 Abcdefghijklmnopqrstuvwxyz123</option>
        <option name="useColors">1</option>
      </single>
      <single>
        <search>
          <query>index=_internal sourcetype=splunkd log_level!=INFO
| stats count by date_mday</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="colorMode">block</option>
        <option name="drilldown">none</option>
        <option name="refresh.display">progressbar</option>
        <option name="underLabel">Abcdefghijklmnopqr1234567890</option>
        <option name="useColors">1</option>
      </single>
      <single>
        <search>
          <query>index=_internal sourcetype=splunkd log_level!=INFO
| stats count by date_hour</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="colorMode">block</option>
        <option name="drilldown">none</option>
        <option name="refresh.display">progressbar</option>
        <option name="underLabel">Abcdefghijklm87239473no 128138213682732</option>
        <option name="useColors">1</option>
      </single>
    </panel>
  </row>
  <row>
    <panel>
      <title>Abcdefghijklmnopqrstuvwxyz1234567890 Abcdefghijklmnopqrstuvwxyz1234567890</title>
    </panel>
    <panel>
      <title>Abcdefghijkl</title>
    </panel>
    <panel>
      <title>Abcdefghijklmnopqrstuvwxyz1234567890</title>
    </panel>
    <panel>
      <title>Abcdefghijklmnopqrstuvwxyz1234567890 Abcdefghijklmnopqrstuvwxyz1234567890 Abcdefghijklmnopqrstuvwxyz1234567890 Abcdefghijklmnopqrstuvwxyz123</title>
    </panel>
    <panel>
      <title>Abcdefghijklmnopqr1234567890</title>
    </panel>
    <panel>
      <title>Abcdefghijklm87239473no 128138213682732</title>
    </panel>
  </row>
  <row>
    <panel>
      <single>
        <search>
          <query>index=_internal sourcetype=splunkd log_level=INFO
| stats count</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="colorMode">block</option>
        <option name="drilldown">none</option>
        <option name="refresh.display">progressbar</option>
        <option name="useColors">1</option>
      </single>
      <single>
        <search>
          <query>index=_internal sourcetype=splunkd log_level=ERROR
| stats count</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="colorMode">block</option>
        <option name="drilldown">none</option>
        <option name="refresh.display">progressbar</option>
        <option name="useColors">1</option>
      </single>
      <single>
        <search>
          <query>index=_internal sourcetype=splunkd log_level=WARN
| stats count</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="colorMode">block</option>
        <option name="drilldown">none</option>
        <option name="rangeValues">[0,200,500,1000]</option>
        <option name="refresh.display">progressbar</option>
        <option name="useColors">1</option>
      </single>
      <single>
        <search>
          <query>index=_internal sourcetype=splunkd log_level!=INFO
| stats count by component
| table count</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="colorMode">block</option>
        <option name="drilldown">none</option>
        <option name="refresh.display">progressbar</option>
        <option name="useColors">1</option>
      </single>
      <single>
        <search>
          <query>index=_internal sourcetype=splunkd log_level!=INFO
| stats count by date_mday</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="colorMode">block</option>
        <option name="drilldown">none</option>
        <option name="refresh.display">progressbar</option>
        <option name="useColors">1</option>
      </single>
      <single>
        <search>
          <query>index=_internal sourcetype=splunkd log_level!=INFO
| stats count by date_hour</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="colorMode">block</option>
        <option name="drilldown">none</option>
        <option name="refresh.display">progressbar</option>
        <option name="useColors">1</option>
      </single>
    </panel>
  </row>
</dashboard>
____________________________________________
| makeresults | eval message= "Happy Splunking!!!"

View solution in original post

0 Karma

New Member

Thanks a lot @niketnilay. It worked

0 Karma

SplunkTrust
SplunkTrust

@kumargaurav, following are the two option you can try,

1) Add to Single value Caption using Format Visualization option which adds Simple XML Configuration like the following:

<option name="underLabel">Abcdefghijklmnopqrstuvwxyz1234567890 Abcdefghijklmnopqrstuvwxyz1234567890</option>

This will move all the Title below single value. This can accommodate for longer text in single line as compared to title but will truncate before and/or after since it is always single line.
2) Create a dummy row with same count of panels as Single Value Panels and use only for <title>
Please refer to screenshot below. First row is one with issue. Second is the option with Caption and Third row is solution with separate dummy row with empty panels having <title>

alt text

Following is the Simple XML code:

<dashboard>
  <label>Single Value Alignment</label>
  <row>
    <panel>
      <title>Abcdefghijklmnopqrstuvwxyz1234567890 Abcdefghijklmnopqrstuvwxyz1234567890</title>
      <single>
        <search>
          <query>index=_internal sourcetype=splunkd log_level=INFO
| stats count</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="colorMode">block</option>
        <option name="drilldown">none</option>
        <option name="refresh.display">progressbar</option>
        <option name="useColors">1</option>
      </single>
    </panel>
    <panel>
      <title>Abcdefghijkl</title>
      <single>
        <search>
          <query>index=_internal sourcetype=splunkd log_level=ERROR
| stats count</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="colorMode">block</option>
        <option name="drilldown">none</option>
        <option name="refresh.display">progressbar</option>
        <option name="useColors">1</option>
      </single>
    </panel>
    <panel>
      <title>Abcdefghijklmnopqrstuvwxyz1234567890</title>
      <single>
        <search>
          <query>index=_internal sourcetype=splunkd log_level=WARN
| stats count</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="colorMode">block</option>
        <option name="drilldown">none</option>
        <option name="rangeValues">[0,200,500,1000]</option>
        <option name="refresh.display">progressbar</option>
        <option name="useColors">1</option>
      </single>
    </panel>
    <panel>
      <title>Abcdefghijklmnopqrstuvwxyz1234567890 Abcdefghijklmnopqrstuvwxyz1234567890 Abcdefghijklmnopqrstuvwxyz1234567890 Abcdefghijklmnopqrstuvwxyz123</title>
      <single>
        <search>
          <query>index=_internal sourcetype=splunkd log_level!=INFO
| stats count by component
| table count</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="colorMode">block</option>
        <option name="drilldown">none</option>
        <option name="refresh.display">progressbar</option>
        <option name="useColors">1</option>
      </single>
    </panel>
    <panel>
      <title>Abcdefghijklmnopqr1234567890</title>
      <single>
        <search>
          <query>index=_internal sourcetype=splunkd log_level!=INFO
| stats count by date_mday</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="colorMode">block</option>
        <option name="drilldown">none</option>
        <option name="refresh.display">progressbar</option>
        <option name="useColors">1</option>
      </single>
    </panel>
    <panel>
      <title>Abcdefghijklm87239473no 128138213682732</title>
      <single>
        <search>
          <query>index=_internal sourcetype=splunkd log_level!=INFO
| stats count by date_hour</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="colorMode">block</option>
        <option name="drilldown">none</option>
        <option name="refresh.display">progressbar</option>
        <option name="useColors">1</option>
      </single>
    </panel>
  </row>
  <row>
    <panel>
      <single>
        <search>
          <query>index=_internal sourcetype=splunkd log_level=INFO
| stats count</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="colorMode">block</option>
        <option name="drilldown">none</option>
        <option name="refresh.display">progressbar</option>
        <option name="underLabel">Abcdefghijklmnopqrstuvwxyz1234567890 Abcdefghijklmnopqrstuvwxyz1234567890</option>
        <option name="useColors">1</option>
      </single>
      <single>
        <search>
          <query>index=_internal sourcetype=splunkd log_level=ERROR
| stats count</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="colorMode">block</option>
        <option name="drilldown">none</option>
        <option name="refresh.display">progressbar</option>
        <option name="underLabel">Abcdefghijkl</option>
        <option name="useColors">1</option>
      </single>
      <single>
        <search>
          <query>index=_internal sourcetype=splunkd log_level=WARN
| stats count</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="colorMode">block</option>
        <option name="drilldown">none</option>
        <option name="rangeValues">[0,200,500,1000]</option>
        <option name="refresh.display">progressbar</option>
        <option name="underLabel">Abcdefghijklmnopqrstuvwxyz1234567890</option>
        <option name="useColors">1</option>
      </single>
      <single>
        <search>
          <query>index=_internal sourcetype=splunkd log_level!=INFO
| stats count by component
| table count</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="colorMode">block</option>
        <option name="drilldown">none</option>
        <option name="refresh.display">progressbar</option>
        <option name="underLabel">Abcdefghijklmnopqrstuvwxyz1234567890 Abcdefghijklmnopqrstuvwxyz1234567890 Abcdefghijklmnopqrstuvwxyz1234567890 Abcdefghijklmnopqrstuvwxyz123</option>
        <option name="useColors">1</option>
      </single>
      <single>
        <search>
          <query>index=_internal sourcetype=splunkd log_level!=INFO
| stats count by date_mday</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="colorMode">block</option>
        <option name="drilldown">none</option>
        <option name="refresh.display">progressbar</option>
        <option name="underLabel">Abcdefghijklmnopqr1234567890</option>
        <option name="useColors">1</option>
      </single>
      <single>
        <search>
          <query>index=_internal sourcetype=splunkd log_level!=INFO
| stats count by date_hour</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="colorMode">block</option>
        <option name="drilldown">none</option>
        <option name="refresh.display">progressbar</option>
        <option name="underLabel">Abcdefghijklm87239473no 128138213682732</option>
        <option name="useColors">1</option>
      </single>
    </panel>
  </row>
  <row>
    <panel>
      <title>Abcdefghijklmnopqrstuvwxyz1234567890 Abcdefghijklmnopqrstuvwxyz1234567890</title>
    </panel>
    <panel>
      <title>Abcdefghijkl</title>
    </panel>
    <panel>
      <title>Abcdefghijklmnopqrstuvwxyz1234567890</title>
    </panel>
    <panel>
      <title>Abcdefghijklmnopqrstuvwxyz1234567890 Abcdefghijklmnopqrstuvwxyz1234567890 Abcdefghijklmnopqrstuvwxyz1234567890 Abcdefghijklmnopqrstuvwxyz123</title>
    </panel>
    <panel>
      <title>Abcdefghijklmnopqr1234567890</title>
    </panel>
    <panel>
      <title>Abcdefghijklm87239473no 128138213682732</title>
    </panel>
  </row>
  <row>
    <panel>
      <single>
        <search>
          <query>index=_internal sourcetype=splunkd log_level=INFO
| stats count</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="colorMode">block</option>
        <option name="drilldown">none</option>
        <option name="refresh.display">progressbar</option>
        <option name="useColors">1</option>
      </single>
      <single>
        <search>
          <query>index=_internal sourcetype=splunkd log_level=ERROR
| stats count</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="colorMode">block</option>
        <option name="drilldown">none</option>
        <option name="refresh.display">progressbar</option>
        <option name="useColors">1</option>
      </single>
      <single>
        <search>
          <query>index=_internal sourcetype=splunkd log_level=WARN
| stats count</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="colorMode">block</option>
        <option name="drilldown">none</option>
        <option name="rangeValues">[0,200,500,1000]</option>
        <option name="refresh.display">progressbar</option>
        <option name="useColors">1</option>
      </single>
      <single>
        <search>
          <query>index=_internal sourcetype=splunkd log_level!=INFO
| stats count by component
| table count</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="colorMode">block</option>
        <option name="drilldown">none</option>
        <option name="refresh.display">progressbar</option>
        <option name="useColors">1</option>
      </single>
      <single>
        <search>
          <query>index=_internal sourcetype=splunkd log_level!=INFO
| stats count by date_mday</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="colorMode">block</option>
        <option name="drilldown">none</option>
        <option name="refresh.display">progressbar</option>
        <option name="useColors">1</option>
      </single>
      <single>
        <search>
          <query>index=_internal sourcetype=splunkd log_level!=INFO
| stats count by date_hour</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
        </search>
        <option name="colorMode">block</option>
        <option name="drilldown">none</option>
        <option name="refresh.display">progressbar</option>
        <option name="useColors">1</option>
      </single>
    </panel>
  </row>
</dashboard>
____________________________________________
| makeresults | eval message= "Happy Splunking!!!"

View solution in original post

0 Karma
