HI,
I want to pass the single value into a drilldown. I tried two options, but nothing has worked.
Please help me in this:
Code is:
<dashboard>
<label>TV Dashboard</label>
<description>Starting...</description>
<row id="allpage_row1">
<panel>
<single>
<search>
<query>index=metroday source="tcscheck.sh" STATUS=UP raxtype=* | dedup host | stats count(STATUS) as COUNT | rangemap field=COUNT low=12-99 elevated=9-11 severe=0-8</query>
<earliest>-3m@m</earliest>
<latest>now</latest>
</search>
<option name="underLabel">TCS</option>
<option name="refresh.auto.interval">120</option>
<option name="refresh.time.visible">false</option>
<option name="link.visible">false</option>
<option name="classField">range</option>
<option name="drilldown">all</option>
<drilldown>
<set token="source">$row.source$</set>
<set token="table.source">$row.source$</set>
</drilldown>
</single>
</panel>
</row>
<row>
<panel depends="$source$">
<title>Source details</title>
<table>
<search>
<query>index = metroday source=$source$
| table host, count </query>
<earliest>-7d</earliest>
<latest>-0d</latest>
</search>
</table>
</panel>
</row>
</dashboard>
Source is:
<search>
<query>source="httppinger.sh" host=*JBO* SUCCESS | chart distinct_count(host) as COUNT | rangemap field=COUNT low=6-10 severe=0-5</query>
<earliest>-7m@m</earliest>
<latest>now</latest>
</search>
<option name="underLabel">Browser</option>
<option name="refresh.auto.interval">180</option>
<option name="refresh.time.visible">false</option>
<option name="link.visible">false</option>
<option name="classField">range</option>
<drilldown taregt="blank">
<link>tv_dashboard_drilldown?dashboard.hosttok=$click.value$</link>
</drilldown>
</single>`
Target code is: `<panel>
<form>
<label>Target dashboard for drilldown</label>
<row>
<table id="detail" depends="$source$">
<query>index = metroday source=$source$
| table host, count, source | dedup host</query>
<earliest>-7d</earliest>
<latest>-0d</latest>
</table>
</row>
</form>
</panel>`
But nothing is working.
I am interested in a second option where I clicked on the number and it opens a new dashboard and passes the value to it.

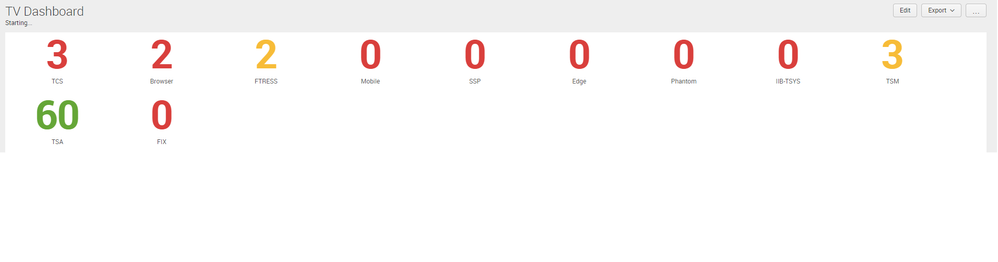

My source dashboard will look like the attachment where when I click on the number 3, it will open new dashboard and create the table that contains the details of all the 3 sourcetypes.
You are referencing to a different token name than the one passen in the link...
<link>tv_dashboard_drilldown?dashboard.hosttok=$click.value$</link>
here you are setting a parameter dashboard.hosttok
to be available to the target dashboard. But your qurey on the target is <query>index = metroday source=$source$| table host, count, source | dedup host</query>
, where you aren't accessing the token at all.
Your target query needs to reference $dashboard.hosttok$
as well.
You are referencing to a different token name than the one passen in the link...
<link>tv_dashboard_drilldown?dashboard.hosttok=$click.value$</link>
here you are setting a parameter dashboard.hosttok
to be available to the target dashboard. But your qurey on the target is <query>index = metroday source=$source$| table host, count, source | dedup host</query>
, where you aren't accessing the token at all.
Your target query needs to reference $dashboard.hosttok$
as well.
Hi DMohn,
Thanks for replying that. I tried the below changes but still there is no data:
Source code:
<single>
<search>
<query>source="httppinger.sh" host=*JBO* SUCCESS | chart distinct_count(host) as COUNT | rangemap field=COUNT low=6-10 severe=0-5</query>
<earliest>-7m@m</earliest>
<latest>now</latest>
</search>
<option name="underLabel">Browser</option>
<option name="refresh.auto.interval">180</option>
<option name="refresh.time.visible">false</option>
<option name="link.visible">false</option>
<option name="classField">range</option>
<option name="drilldown">all</option>
<drilldown>
<link target="_blank">/app/ruchiapps/tv_dash_drill?sourcetok=$click.value$</link>
</drilldown>
</single>
Destination code:
<dashboard>
<label>TV Drilldown Dashboard</label>
<description>Providing details on TV Dashboard object $sourcetok$</description>
<row id="page1_row1">
<panel>
<form>
<table id="detail" depends="$sourcetok$">
<query>index = metroday source=$sourcetok$
| table host, count, source | dedup host</query>
<earliest>-7d</earliest>
<latest>-0d</latest>
</table>
</form>
</panel>
</row>
</dashboard>
I want from my previous picture that when i clicked on number 3 it will pass to another dashboard and that number 3 will display there and below there will be table which will display the details of all the three sources...
