How do I get the month view for a time picker token on a form?

capilarity
Path Finder

I'm creating a form that requires a date input but rather than type the date and to avoid risk of typos and errors, I want to use this month view from the time picker:




Had a working version with a html page but we are now 9.2.3 so no longer available....

Field will only ever require a single date, never a time, never a range, never realtime, etc. Will also ensure the correct format (Day-Month-Year) is used  - looking at you,  America 😂



Thanks

Labels (3)
0 Karma

tscroggins
Influencer

Hi @capilarity,

You can use jQuery UI's datepicker directly from dashboard JavaScript. I've included two options below, one using a text input with datepicker and the other using a time input with various hidden.

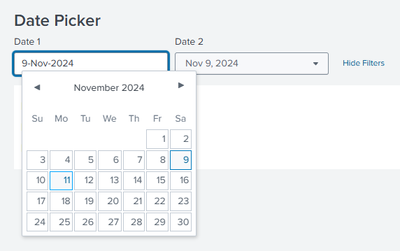

The datepicker uses d-M-yy as the dateFormat value, e.g. 9-Nov-2024. The format string is documented at https://api.jqueryui.com/datepicker/#utility-formatDate. See the same page for options to modify the datepicker's appearance.

<!-- etc/apps/search/local/data/ui/views/date_picker.xml -->
<form version="1.1" theme="light" script="date_picker.js">
  <label>Date Picker</label>
  <init>
    <eval token="form.date_tok">strftime(relative_time(now(), "@d"), "%e-%b-%Y")</eval>
    <eval token="form.time_tok.earliest">relative_time(now(), "@d")</eval>
    <eval token="form.time_tok.latest">relative_time(now(), "+1d@d")</eval>
  </init>
  <fieldset submitButton="false">
    <input id="input_date" type="text" token="date_tok">
      <label>Date 1</label>
    </input>
    <input id="input_time" type="time" token="time_tok">
      <label>Date 2</label>
      <default>
        <earliest>1731128400</earliest>
        <latest>1731214800</latest>
      </default>
    </input>
  </fieldset>
  <row depends="$hidden$">
    <panel>
      <html>
      <style>
div[data-test-panel-id="presets"], div[data-test-panel-id="relative"], div[data-test-panel-id="realTime"], div[data-test-panel-id="dateTime"], div[data-test-panel-id="advanced"] {
  display: none !important;
}
      </style>
    </html>
    </panel>
  </row>
  <row>
    <panel>
      <html>
      <h2>Date 1: <b>$date_tok$</b>
        </h2>
      <h2>Date 2 Eearliest: <b>$time_tok.earliest$</b>
        </h2>
      <h2>Date 2 Latest: <b>$time_tok.latest$</b>
        </h2>
    </html>
    </panel>
  </row>
</form>
// etc/apps/search/appserver/static/date_picker.js
require([
    "jquery",
    "splunkjs/mvc",
    "splunkjs/mvc/simplexml/ready!"
], function($, mvc) {
  $("#input_date input")
    .prop("readonly", true)
    .datepicker({
      dateFormat: "d-M-yy",
      onSelect: function(dateText, inst) {
        var defaultTokens = mvc.Components.get("default");
        if (defaultTokens) {
          console.log("Setting default token $date_tok$ to " + dateText);
          defaultTokens.set("date_tok", dateText);
        }
        var submittedTokens = mvc.Components.get("submitted");
        if (submittedTokens) {
          console.log("Setting submitted token $date_tok$ to " + dateText);
          submittedTokens.set("date_tok", dateText);
        }
      }
    });
});


(I actually use the above format in my emails. Less ambiguity. In text data, I use ISO 8601. 'merica!)

0 Karma
