Does Splunk have a Stepped Line Graph Visualisation

[pjAstroMan]

Hi there, I am in the process of evaluating Splunk as a possible replacement to our existing data historian.  Our users require a Stepped Line Graph for trending purposes rather than the conventional line graph.  Is it possible to provide a Stepped Line Graph visualistion in Splunk?

Kind Regards

Paul J.

[tscroggins]

@pjAstroMan

Not directly, but you can group data points by series and use the xyseries command to plot steps:

foo.csv

series,x,y
a,0,1
a,1,1
a,2,1
b,2,2
b,3,2
b,4,2
c,4,3
c,5,3
c,6,3

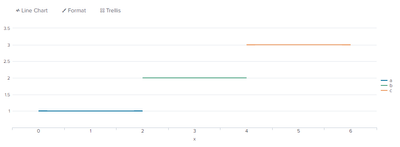

| inputlookup foo.csv
| xyseries x series y

x	a	b	c
0	1
1	1
2	1	2
3		2
4		2	3
5			3
6			3

Splunk also provides an interface to develop custom visualizations: https://dev.splunk.com/enterprise/docs/developapps/visualizedata/displaydataview/splunkplatformcusto...

[pjAstroMan]

Thanks for the feedback, unfortunately, whilst this would work for specifically manipulated data content, in my particular case the stepped chart needs to be generated from a real-time data feed.

Kind Regards

Paul.

[tscroggins]

@pjAstroMan

I used a contrived example, but streaming data can be modified into a similar structure using SPL. Search-time analysis and transformation is Splunk's core value proposition.
