Configure static color by value in splunk dashboard studio

[vananhnguyen]

I am having some dashboards created by Splunk Dashboard Studio. Anyone know where I could set static color based on values in the dashboard? Thanks much!

[renjith_nair]

@vananhnguyen ,

Here is a run anywhere example. Are you looking for something like this ? You can change the value in the dropdown and the colors will be reset

{
    "visualizations": {
        "viz_NJsTjQl4": {
            "type": "splunk.singlevalue",
            "options": {
                "majorColor": "> majorValue | matchValue(majorColorEditorConfig)"
            },
            "dataSources": {
                "primary": "ds_275I8YNY"
            },
            "context": {
                "majorColorEditorConfig": [
                    {
                        "match": "Running",
                        "value": "#118832"
                    },
                    {
                        "match": "Stopped",
                        "value": "#d41f1f"
                    }
                ]
            }
        }
    },
    "dataSources": {
        "ds_275I8YNY": {
            "type": "ds.search",
            "options": {
                "query": "| makeresults\n| eval value=\"$status$\""
            },
            "name": "Search_1"
        }
    },
    "defaults": {
        "dataSources": {
            "ds.search": {
                "options": {
                    "queryParameters": {
                        "latest": "$global_time.latest$",
                        "earliest": "$global_time.earliest$"
                    }
                }
            }
        }
    },
    "inputs": {
        "input_global_trp": {
            "type": "input.timerange",
            "options": {
                "token": "global_time",
                "defaultValue": "-24h@h,now"
            },
            "title": "Global Time Range"
        },
        "input_BHJAbWl2": {
            "options": {
                "items": [
                    {
                        "label": "Running",
                        "value": "Running"
                    },
                    {
                        "label": "Stopped",
                        "value": "Stopped"
                    }
                ],
                "token": "status",
                "selectFirstSearchResult": true
            },
            "title": "Status",
            "type": "input.dropdown"
        }
    },
    "layout": {
        "type": "grid",
        "options": {
            "width": 1440,
            "height": 960
        },
        "structure": [
            {
                "item": "viz_NJsTjQl4",
                "type": "block",
                "position": {
                    "x": 0,
                    "y": 0,
                    "w": 1440,
                    "h": 400
                }
            }
        ],
        "globalInputs": [
            "input_global_trp",
            "input_BHJAbWl2"
        ]
    },
    "description": "",
    "title": "single_panel_studio"
}

Reference : https://docs.splunk.com/Documentation/Splunk/9.2.1/DashStudio/visualEditDynamic

[vananhnguyen]

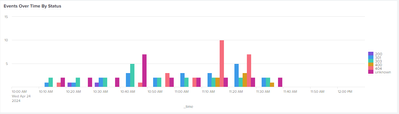

Hi @renjith_nair. Thank you but  it's not something i am looking for. I have a column chart to visualize the status of requests to a website. Each time the dashboard is refreshed, the number of status displayed changes and the color of the columns may change. How can I configure a fixed color for each status value?

[renjith_nair]

@vananhnguyen
For that we need to know what value comes to map it with a color.

We can transpose the result and set the result as column values and set the colors.

Please check the following run anywhere example. makeresults is just used to create a set of dummy data

{
    "visualizations": {
        "viz_PKMJkTej": {
            "type": "splunk.column",
            "options": {
                "y": "> primary | frameBySeriesNames('count','Critical','Failure','Info','Success')",
                "seriesColorsByField": {
                    "Critical": "#dc4e41",
                    "Failure": "#f8be34",
                    "Success": "#53a051",
                    "Info": "#0051B5"
                },
                "x": "> primary | seriesByName('count')",
                "y2": "> primary | frameBySeriesNames('Critical','Failure','Info','Success')"
            },
            "dataSources": {
                "primary": "ds_Lmyq9G4p"
            }
        }
    },
    "dataSources": {
        "ds_Lmyq9G4p": {
            "type": "ds.search",
            "options": {
                "query": "| makeresults count=100 \n| eval value=random() \n| eval status=case(value%2==0,\"Success\",value%3==0,\"Failure\",value%4==0,\"Warning\",value%5==0,\"Critical\",1==1,\"Info\") \n| stats count by status \n| transpose header_field=status column_name=count"
            },
            "name": "Search_1"
        }
    },
    "defaults": {
        "dataSources": {
            "ds.search": {
                "options": {
                    "queryParameters": {
                        "latest": "$global_time.latest$",
                        "earliest": "$global_time.earliest$"
                    }
                }
            }
        }
    },
    "inputs": {
        "input_global_trp": {
            "type": "input.timerange",
            "options": {
                "token": "global_time",
                "defaultValue": "-24h@h,now"
            },
            "title": "Global Time Range"
        }
    },
    "layout": {
        "type": "absolute",
        "options": {
            "width": 1440,
            "height": 960,
            "display": "auto"
        },
        "structure": [
            {
                "item": "viz_PKMJkTej",
                "type": "block",
                "position": {
                    "x": 0,
                    "y": 0,
                    "w": 1010,
                    "h": 300
                }
            }
        ],
        "globalInputs": [
            "input_global_trp"
        ]
    },
    "description": "",
    "title": "Static Colors"
}
