Colour-coded columns from stats avg by field

[benhooper]

I want to have a colour-coded column chart for the average amount of time that an incident has been open by its severity.

So far, I think I have achieved most of this with the following search query:

index=* | where match(status, "resolved")
| stats earliest(creation_time) as creation_time, earliest(modification_time) as resolve_time, latest(severity) as severity by incident_id
| eval creation_time_epoch = strptime(creation_time, "%Y/%m/%d %H:%M:%S") | eval resolve_time_epoch = strptime(resolve_time, "%Y/%m/%d %H:%M:%S") | eval timedifference_hours = ((resolve_time_epoch - creation_time_epoch) / 60) / 60
| stats avg(timedifference_hours) as timedifference_hours_average by severity | eval timedifference_hours_average = round(timedifference_hours_average, 2)
| table severity, timedifference_hours_average

The problem is that, probably due to a flaw with my search query, the legend is not per severity and, seemingly as a result, the dashboard XML <option name="charting.fieldColors">{"low": 0x3391FF, "medium": 0xF8BE34, "high": 0xDF4D58}</option> is not applying.

Can anyone point me in the right direction?

Thanks.

[to4kawa]

work around:

| makeresults
| eval _raw="severity,time_diff_avg
high,9.09
low,9.08
medium,19.51"
| multikv forceheader=1
| table severity time_diff_avg
| rex "(?<comment>(?# the logic))"
| xyseries severity severity time_diff_avg
| table severity high medium low

It's the only way to be satisfied with everything you want to do.

[to4kawa]

sample:

<dashboard>
  <label>chart color</label>
  <row>
    <panel>
      <chart>
        <search>
          <query>| makeresults
| eval _raw="severity,time_diff_avg
high,9.09
low,9.08
medium,19.51"
| multikv forceheader=1
| table severity time_diff_avg
| eval severities="severity"
| xyseries  severities severity time_diff_avg</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
          <sampleRatio>1</sampleRatio>
        </search>
        <option name="charting.axisTitleX.visibility">collapsed</option>
        <option name="charting.chart">column</option>
        <option name="charting.drilldown">all</option>
        <option name="charting.fieldColors">{"low": 0x3391FF, "medium": 0xF8BE34, "high": 0xDF4D58}</option>
      </chart>
    </panel>
  </row>
</dashboard>

[benhooper]

Hi @to4kawa ,

Thanks for that. It's very promising.

Is there any way to preserve the following aspects of my method with yours?

• Display the severity under each column.
• Preserve sort order of severity.
• Display the following in the hover element:
  "severity: <severity>
  timedifference_hours_average: <number>"

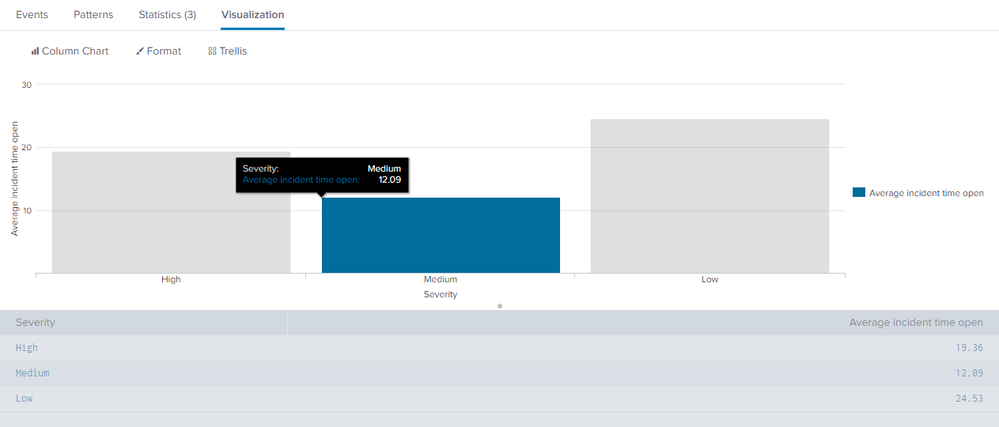

How it currently looks using my method:

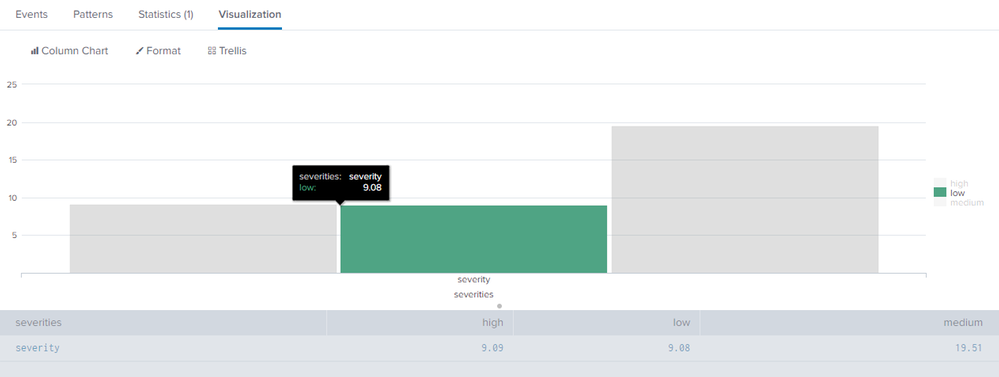

How it currently looks using your method:

Thanks.
