Chart Overlay: How to sum and avg of a single field and apply it in chart overlay?

[gokikrishnan198]

index=source sourcetype=type|timechart sum(TotalTime) avg(TotalTime)

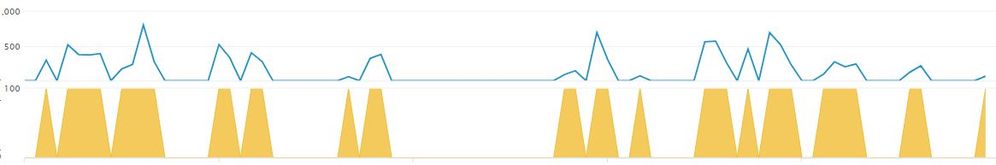

Getting a chart below

Unable to use the clause "over" in timechart command like "timechart sum(TotalTime) over avg(TotalTime) by EM"
Unable to calculate sum if I use stats command. Need assistance Please.

[adonio]

hello there,

maybe use the chart overlay function within your visualization options.

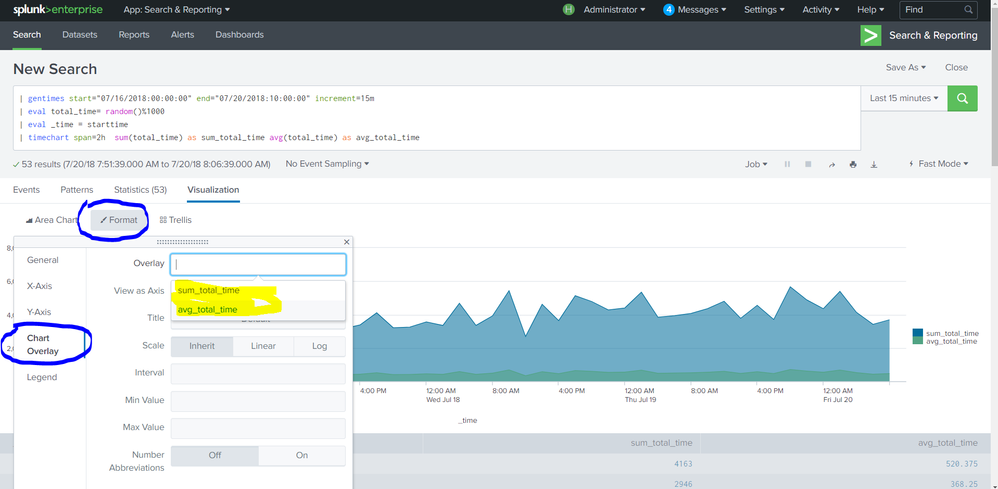

run this search anywhere and follow the screenshot below:

| gentimes start="07/16/2018:00:00:00" end="07/20/2018:10:00:00" increment=15m
| eval total_time= random()%1000
| eval _time = starttime
| timechart span=2h  sum(total_time) as sum_total_time avg(total_time) as avg_total_time

hope it helps

[gokikrishnan198]

Hi @Adonio,

Apologies. I am unable to follow the code that was provided.

Let me explain the thing here again.
If there is a Service A . It takes time to run. Need to calculate average and total time elapsed for the service. Thanks,

[adonio]

@gokikirishan, the code is just an example for your use case
the screenshot shows you how to do chart overlay
