Splitting JSON Respone into Rows for each event - Akamai Data

New Member

I'm using the REST API app and I'm having a bit of trouble figuring out the response handlers and/or Splunk dealing with JSON data.

I have a very large JSON file that gets returned, and I want to create a entry for each row in the data, but the data isn't paired up directly like in most examples I've seen in the help sections.

Here's an example of the data

  {
        "columns": [
            {
                "type": "dimension",
                "name": "Time",
                "description": "Time as per time zone specified in the report",
                "index": 0
            },
            {
                "type": "dimension",
                "name": "Country",
                "description": "Country from which viewer requested media ",
                "index": 1
            },
            {
                "type": "metric",
                "name": "Plays with Rebuffers",
                "description": "Number of Plays with Rebuffers",
                "index": 2,
                "aggregate": "418",
                "peak": "156",
                "unit": null
            }
        ],
        "rows": [
            [
                "1415837040",
                "US"
                "156"
            ],
            [
                "1415837040",
                "CH"
                "136"
            ],
            [
                "1415836980",
                "US"
                "113"
            ],
            [
                "1415836980",
                "CH"
                "103"
            ],
            [
                "1415836920",
                "US"
                "95"
            ],
        ],
        "metaData": {
            "aggregation": 60,
            "limit": 5,
            "startTimeInEpoch": 1415836800,
            "hasMoreData": false,
            "timeZone": "GMT",
            "offset": 0,
            "reportPack": "HDS Qos Test",
            "endTimeInEpoch": 1415837100
        }
    }

At the End of the day I want to end up with the data for each row just pulling the name field out of the columns, and discarding the metadata

Time=1415837040 Country=US "Plays with Rebuffers"=156
Time=1415837040 Country=CH "Plays with Rebuffers"=136
ETC

I also need to make the time for the entry the same as the time returned in the row. It looks like I need to do something like this in my props file for my source type, but that won't work until I get the parsing by row working.
TIME
PREFIX = Time=
TIME_FORMAT = %s

Thanks in advance for your time for anyone looking at this or responding.

0 Karma
Highlighted

Re: Splitting JSON Respone into Rows for each event - Akamai Data

Ultra Champion

Try this code in responsehandlers.py

class YourJSONArrayHandler:

    def __init__(self,**args):
        pass

    def __call__(self, response_object,raw_response_output,response_type,req_args,endpoint):
        if response_type == "json":
            raw_json = json.loads(raw_response_output)
            column_list = []
            for column in raw_json['columns']:
                column_list.append(column['name'])
            for row in raw_json['rows']:
                i = 0;
                new_event = {}
                for row_item in row:
                    new_event[column_list[i]] = row_item
                    i = i+1
                print print_xml_stream(json.dumps(new_event))

        else:
            print_xml_stream(raw_response_output)

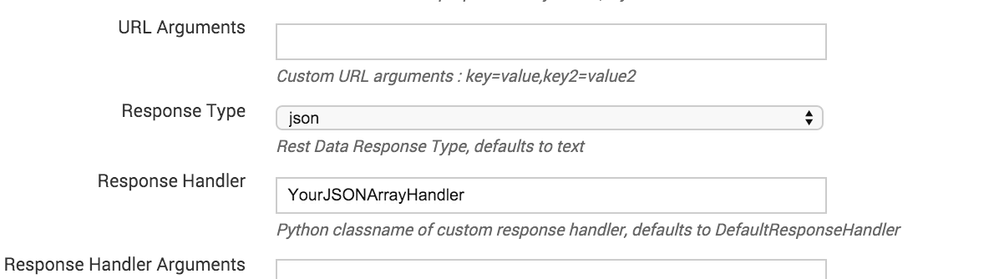

And wire it up in your stanza config :

alt text

View solution in original post

Highlighted

Re: Splitting JSON Respone into Rows for each event - Akamai Data

New Member

Thank you for the response! I had no idea you would answer so quickly.

I had another version of this going, and I combine what you wrote, with what I had going. So far it's working great other than some issues with the data source.

class AkamaiColumnRowsJSONHandler:
        def __init__(self,**args):
            pass

        def __call__(self, response_object,raw_response_output,response_type,req_args,endpoint):
            if response_type == "json":
                raw_json = json.loads(raw_response_output)
                columns = [str(row['name']).replace(" ","") for row in raw_json['columns']]
                for row in raw_json['rows']:
                    new_event = {}
                    for a,b in zip(columns, row):
                    if not b: #Skip Null Valued Pairs
                        continue
                    new_event[a] = b
                print_xml_stream(json.dumps(new_event))
            else:
                print_xml_stream(raw_response_output)

I'm really glad I was closer than I thought to a viable solution at the time I ran here for help. You and your tool are fantastic sir.

0 Karma
