Re: How to make panel depend on token value?

Muthu_Vinith · ‎08-01-2024

I have header panels on a dashboard. Say this dropdown has a token called tok_panel. Is there a way to make the panels depend on specific values of tok_panel?

i.e., if I select "All" in the dropdown, only panel "All" should be visible instead of *. In my case i'm using Static options for all to display. Others options coming based on |stats c by field name.

@gcusello @ITWhisperer @PickleRick @richgalloway

ITWhisperer · ‎08-01-2024

Please share the source of your dashboard in a code block

Muthu_Vinith · ‎08-01-2024

 <input token="panel_tok" searchWhenChanged="true">
      <label>Vendor</label>

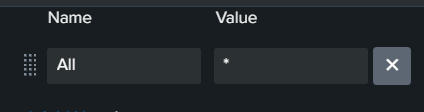

      <choice value="*">All</choice>
      <default>*</default>
      <initialValue>*</initialValue>
      <fieldForLabel>vendor</fieldForLabel>
      <fieldForValue>vendor</fieldForValue>
      <search>
        <query>
|stats c by vendor
</query>
        <earliest>-7d@h</earliest>
        <latest>now</latest>
      </search>

@ITWhisperer

ITWhisperer · ‎08-01-2024

Try something like this

<form version="1.1" theme="light">
  <label>Hidden panels</label>
  <fieldset submitButton="false">
    <input type="dropdown" token="panel_tok" searchWhenChanged="true">
      <label>Vendor</label>
      <choice value="All">All</choice>
      <default>All</default>
      <initialValue>All</initialValue>
      <fieldForLabel>Vendor</fieldForLabel>
      <fieldForValue>Vendor</fieldForValue>
      <search>
        <query>| makeresults format=csv data="Vendor
Vendor A
Vendor B"
          |stats c by Vendor</query>
        <earliest>-7d@h</earliest>
        <latest>now</latest>
      </search>
      <change>
        <condition value="All">
          <set token="vendorA">true</set>
          <set token="vendorB">true</set>
        </condition>
        <condition value="Vendor A">
          <set token="vendorA"></set>
          <unset token="vendorB"></unset>
        </condition>
        <condition value="Vendor B">
          <unset token="vendorA"></unset>
          <set token="vendorB"></set>
        </condition>
      </change>
    </input>
  </fieldset>
  <row>
    <panel depends="$vendorA$">
      <html>
        <p>Panel A</p>
      </html>
    </panel>
  </row>
  <row>
    <panel depends="$vendorB$">
      <html>
        <p>Panel B</p>
      </html>
    </panel>
  </row>
</form>

Muthu_Vinith · ‎08-02-2024

hi @ITWhisperer it doesn't work.

I've tried something like this using Appendpipe command. I can see results.
For eg:
Vendor-1 10
Vendor-2 10
All 20

|inputlookup filename.csv
| stats count by Vendor
| appendpipe
    [| stats sum(count) as count
    | eval Vendor="All"]

But when I select All from drop-down, values are not showing in the single value. However when I select Vendor-1 values are displayed. How to fix this issue?

ITWhisperer · ‎08-02-2024

OK a bit random - why have you used appendpipe?

Muthu_Vinith · ‎08-04-2024

@ITWhisperer I just tired if we can use appendpipe it will the give the sum of both values. But it does not work. When i select All it should show all instead of star and corresponding values. I'm having only one header.
