Configure the Width of a Hidden Panel

rkeq0515
Explorer

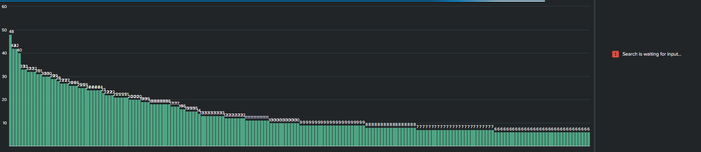

I am trying to configure two panels in a single row where one panel is 85% and the other is 15%.  I already have the style set up to accomplish the following:


I would like to hide the right panel and have it appear when I click a bar on the right.  That would mean the bar graph would start across the entire row then slide to the right to reveal the right panel at 15%.



I have tried multiple configuration but cant seem to get it to work properly.  When I click on the bar graph it seems to split the row at 50% however, the it does show the table at 15%.


The code I am working with is below.  I have tried different combinations of the id tags but still cannot get it to work.

 Style

<style>
           #Table1{
            width:15% !important;
          }
            #Panel1{
            width:85% !important;
          }
</style>



Table and Code to Hide the Panel on the Right

    <panel id="Table1" depends="$tkacct$">

      <input id="Table2" type="checkbox" token="tokacct1" searchWhenChanged="true">
        <label></label>
        <change>
          <unset token="tkacct"></unset>
          <unset token="form.tokacct1"></unset>
        </change>
        <choice value="hide">Hide Details</choice>
        <delimiter> </delimiter>
      </input>
      <table>
        <title>Table 1 Title</title>
        <search>
          <query>SPLUNK QUERY</query>
...
...



Thanks

Labels (3)
Tags (4)
0 Karma
1 Solution

to4kawa
SplunkTrust
SplunkTrust
<form>
  <label>hide_panel_width</label>
  <init>
    <set token="width_change">100</set>
    <set token="Viz">0</set>
    <set token="panel1">0</set>
  </init>
  <fieldset submitButton="false">
    <input type="checkbox" token="width_change" searchWhenChanged="true">
      <label>Width Change</label>
      <choice value="85">width_change<set token="Viz">1</set>
        <set token="pane1">15</set>
      </choice>
      <default>100</default>
    </input>
  </fieldset>
  <row>
    <panel depends="$alwaysHidePanel$">
      <html>
          <style>
           #Table1{
            width:$width_change$% !important;
          }
            #Panel1{
            width:$panel1$% !important;
          }
          </style>
      </html>
    </panel>
  </row>
  <row>
    <panel id="Table1">
      <chart>
        <search>
          <query>| tstats count where index=_internal by _time span=1h</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
          <sampleRatio>1</sampleRatio>
        </search>
        <option name="charting.chart">column</option>
        <option name="charting.chart.stackMode">default</option>
        <option name="charting.chart.style">shiny</option>
        <option name="charting.drilldown">none</option>
      </chart>
    </panel>
    <panel id="Panel1" depends="$Viz$">
      <single>
        <search>
          <query>| tstats count where index=_internal by _time span=1h sourcetype
| rare 1 sourcetype</query>
          <earliest>$earliest$</earliest>
          <latest>$latest$</latest>
        </search>
        <option name="refresh.display">progressbar</option>
      </single>
    </panel>
  </row>
</form>

View solution in original post

0 Karma

to4kawa
SplunkTrust
SplunkTrust
<form>
  <label>hide_panel_width</label>
  <init>
    <set token="width_change">100</set>
    <set token="Viz">0</set>
    <set token="panel1">0</set>
  </init>
  <fieldset submitButton="false">
    <input type="checkbox" token="width_change" searchWhenChanged="true">
      <label>Width Change</label>
      <choice value="85">width_change<set token="Viz">1</set>
        <set token="pane1">15</set>
      </choice>
      <default>100</default>
    </input>
  </fieldset>
  <row>
    <panel depends="$alwaysHidePanel$">
      <html>
          <style>
           #Table1{
            width:$width_change$% !important;
          }
            #Panel1{
            width:$panel1$% !important;
          }
          </style>
      </html>
    </panel>
  </row>
  <row>
    <panel id="Table1">
      <chart>
        <search>
          <query>| tstats count where index=_internal by _time span=1h</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
          <sampleRatio>1</sampleRatio>
        </search>
        <option name="charting.chart">column</option>
        <option name="charting.chart.stackMode">default</option>
        <option name="charting.chart.style">shiny</option>
        <option name="charting.drilldown">none</option>
      </chart>
    </panel>
    <panel id="Panel1" depends="$Viz$">
      <single>
        <search>
          <query>| tstats count where index=_internal by _time span=1h sourcetype
| rare 1 sourcetype</query>
          <earliest>$earliest$</earliest>
          <latest>$latest$</latest>
        </search>
        <option name="refresh.display">progressbar</option>
      </single>
    </panel>
  </row>
</form>

View solution in original post

0 Karma

rkeq0515
Explorer

I am curious of the purpose of the percent sign at the end of the token variable?



width:$width_change$%

0 Karma

rkeq0515
Explorer

Thanks for this.  I took your suggestion and modified to fit what I wanted.  This seems to work for me.

<form>
  <label>hide_panel_width</label>
  <init>
    <set token="width_change">100</set>
    <set token="Viz">0</set>
    <set token="panel1">0</set>
  </init>
  <fieldset submitButton="false">
  </fieldset>
  <row>
    <panel depends="$alwaysHidePanel$">
      <html>
          <style>
           #Table1{
            width:$width_change$% !important;
          }
            #Panel1{
            width:$panel1$% !important;
          }
          </style>
      </html>
    </panel>
  </row>

  <row>

    <panel id="Table1">
      <chart>
        <search>
          <query>| tstats count where index=_internal by _time span=1h</query>
          <earliest>-24h@h</earliest>
          <latest>now</latest>
          <sampleRatio>1</sampleRatio>
        </search>
        <option name="charting.chart">column</option>
        <option name="charting.chart.stackMode">default</option>
        <option name="charting.chart.style">shiny</option>
        <option name="charting.drilldown">all</option>
        <drilldown>
          <set token="tkbar">$click.value$</set>
          <set token="pane1">15</set>
          <set token="width_change">85</set>
        </drilldown>
      </chart>
    </panel>
    <panel id="Panel1" depends="$tkbar$">

      <input type="checkbox" token="tokacct2" searchWhenChanged="true">
        <label></label>

        <change>
          <unset token="tkbar"></unset>
          <unset token="form.tokacct2"></unset>
          <set token="pane1">0</set>
          <set token="width_change">100</set>
        </change>

        <choice value="hide">Hide Details

        <change>
        </change>

        </choice>
      </input>
      <single>
        <search>
          <query>| tstats count where index=_internal by _time span=1h sourcetype
| rare 1 sourcetype $tkbar$</query>
          <earliest>$earliest$</earliest>
          <latest>$latest$</latest>
        </search>
        <option name="refresh.display">progressbar</option>
      </single>
    </panel>
  </row>
</form>
0 Karma
