Adding a Linear Trendline and customizing chart

[aquinojason]

Hi,

I have this on my splunk query

index=xxxxxxx sourcetype="xxxxxx" EXPRSSN=IBM4D* | eval DATE=strftime(strptime(DATE,"%d%b%Y"),"%Y-%m-%d") | table EXPRSSN DATE MIPS | eval _time=strptime(DATE." "."00:00:00","%Y-%m-%d %H:%M:%S") | chart values(MIPS) over _time by EXPRSSN

I wanted to add a linear trendline on my chart. Hoping I could re-create this

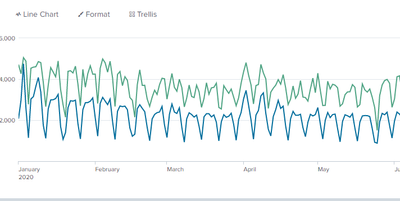

How do I customize also the my line chart? I wanted to have the other one filled as well. I am getting the one in below from splunk

[tscroggins]

@aquinojason

To easily summarize values over time, you can use the timechart command:

index=xxxxxxx sourcetype="xxxxxx" EXPRSSN=IBM4D*
| timechart span=1d avg(MIPS) ```or max(MIPS), p90(MIPS), etc.```

Core Splunk does not include a linear trendline command, but you can create one yourself using SPL. See https://wiki.splunk.com/Community:Plotting_a_linear_trendline for an old example.

Splunk Machine Learning Toolkit does include a linear regression algorithm for the fit command:

index=xxxxxxx sourcetype="xxxxxx" EXPRSSN=IBM4D*
| timechart span=1d avg(MIPS) as MIPS
| fit LinearRegression MIPS from _time

You can visualize your data as an area chart and then configure predicted(MIPS) as an overlay to show a linear trend.

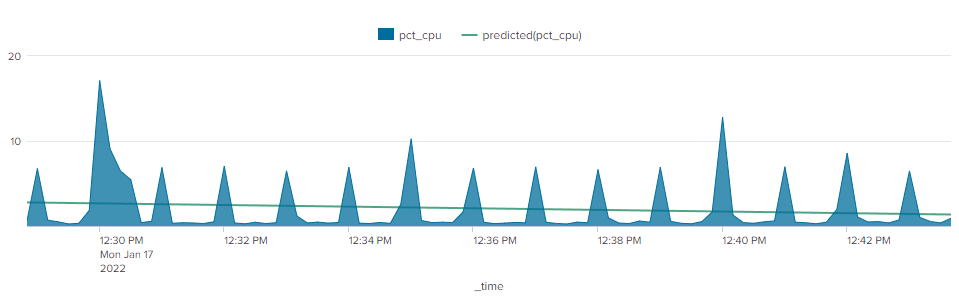

Here's an example using Splunk introspection events:

| tstats max(data.normalized_pct_cpu) as pct_cpu where index=_introspection host=splunk by _time span=10s
| fit LinearRegression pct_cpu from _time

I'm not sure what the red line in your chart represents. If you want to add a moving average to your chart, you can use the trendline command:

| tstats max(data.normalized_pct_cpu) as pct_cpu where index=_introspection host=splunk by _time span=10s
| trendline sma6(pct_cpu)
| fit LinearRegression pct_cpu from _time
